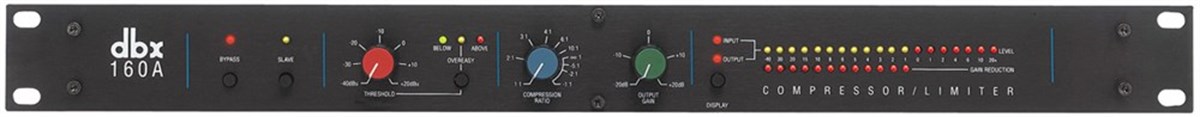

Dbx 160A Kompresör/Limiter

Dbx 160A Kompresör/Limiter (160A)

Marka : dBX
İndirim Oranı : %45 İndirim
KDV Dahil : $1,200.00
İndirimli : $550.00  + KDV
KDV Dahil : ₺23.232,07

Dbx 160A

Compressor / Limiter

:
Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz

ÖZELLİKLER



Input Connectors 1/4" TRS and XLR, Floating Balanced; XLR: Pin 2 hot Phone: Tip Hot
Input Impedance 40k
Max Input +24dBu, Balanced or Unabalanced (Absolute)
CMRR >45dB (any Frequency)
Detector Input Connector: 14" TRS phone, Floating Balanced
Detector Input Impedance >200k
Detector Input Max Level +28dBu, Balanced or Unbalanced
Output Connectors 1/4" TRS phone, Unbalanced; XLR, floating balanced; pin 2 hot
Output Impedance Balanced 200 ohm, unbalanced 100 ohm
Max Output (Balanced): +24dBm; <0.3% THD; (Unbalanced): +20dBm; <0.3% THD
Noise <-90dBu, Unweighted (20Hz - 20kHz)
Frequency Response 20Hz -20kHz, +0, -0.5dB; +0, -3dB 0.5Hz and 90kHz.
THD <0.2%, Typical, any amount of compression up to 40dB @ 1kHz
Compressor Threshold Range -40dBu to +20dBu
Compressor Threshold Characteristic OverEasy® or hard knee
Compressor Ratio Variable 1:1 to :1 thru to -1:1; >60dB maximum compression
Compressor Attack Time Program dependent; typically 15ms for 10dB, 5ms for 20dB, 3ms for 30dB
Compressor Release Time Program Dependent; Typically 8ms for 1dB, 80ms for 10dB, 400ms for 50dB; 125dB/sec rate
Dynamic Range >113dB
Gain Adjustment Range Variable from -20dB to +20dB
Stereo Coupling True RMS Power summing
Summing 1/4" TRS phone jack
Operating Voltage DO: 90-130VAC, 50/60Hz; EU: 200-250VAC, 50/60Hz
Power Connector IEC receptacle
Dimensions 1.75" x 19" x 6.5" (4.45cm x 48.2cm x 16.51cm)
Unit Weight 4.452 lbs (1.99 kg)
Shipping Weight 6.62 lbs (2.99 kg)
