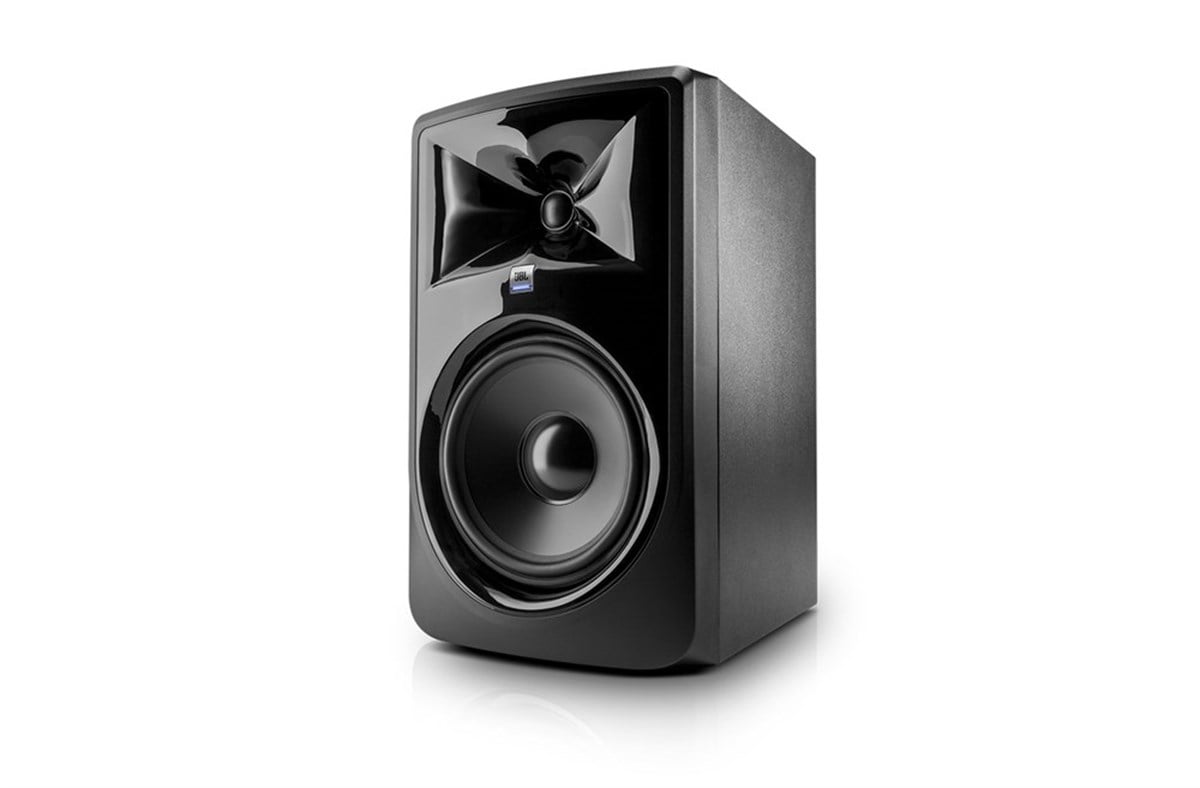

Jbl 308P MKII 8 inç 82 Watt Aktif Referans Monitörü

Jbl 308P MKII 8 inç 82 Watt Aktif Referans Monitörü (308P MkII)

Marka : JBL
İndirim Oranı : %50 İndirim
KDV Dahil : $1,140.00
İndirimli : $475.00  + KDV
KDV Dahil : ₺20.021,31

Powered 8" Two-Way Studio Monitor

:
Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz

Özellikler





LF DRIVER SIZE 203mm (8")
HF DRIVER SIZE 25mm (1")
HF DRIVER TYPE Soft dome
Crossover 1800Hz 4th order acoustic Linkwitz-Riley
OK FOR USE NEAR MAGNETICALLY SENSITIVE EQUIPMENT Yes
INPUT SENSITIVITY (-10dBV INPUT) 92dB / 1m
Power Configuration Bi-amplified
HF DRIVER POWER AMP 56W, Class-D
LF DRIVER POWER AMP 56W, Class-D
FREQUENCY RESPONSE (±3dB) 45Hz – 20kHz
Frequency Range (-10dB) 37Hz – 24kHz
LOW FREQUENCY EXTENSION (-10dB) 37Hz
MAXIMUM CONTINUOUS SPL 102dB
Maximum Peak SPL 112dB
MAXIMUM PEAK INPUT LEVEL (-10dBV / +4dBu) +6dBV / +20.3dBu
SYSTEM DISTORTION CRITERIA <10% THD at maximum output with full compressor / limiter engagement
ELECTRICAL DISTORTION CRITERIA 0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output
Signal to Noise Ratio 75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output
COVERAGE HORIZONTAL x VERTICAL 120° x 90°
ANALOG INPUT TYPES 1 x XLR female, 1 x TRS female, balanced
HF TRIM CONTROL -2dB, 0dB, +2dB
BOUNDARY EQ LF Shelf @ 50Hz: -3dB, -1.5dB, 0dB
AC INPUT VOLTAGE 100 – 240VAC (±10%), 50 / 60Hz
ENCLOSURE TYPE Ported
ENCLOSURE CONSTRUCTION 15mm MDF
ENCLOSURE FINISH Matte black PVC
BAFFLE CONSTRUCTION Injection-molded structural ABS
CABINET DIMENSIONS (H x W x D) 419 x 254 x 308mm (16.5" x 10" x 12.1")
DISPLAY CARTON (H x W x D) 473 x 312 x 358mm (18.6" x 12.3" x 14")
SHIPPING CARTON (H x W x D) 491 x 326 x 372mm (19.3" x 12.8" x 14.6")
Net Weight 8.1 kg (17.87 lbs)
SHIPPING GROSS WEIGHT 9.4 kg (20.73 lbs)
