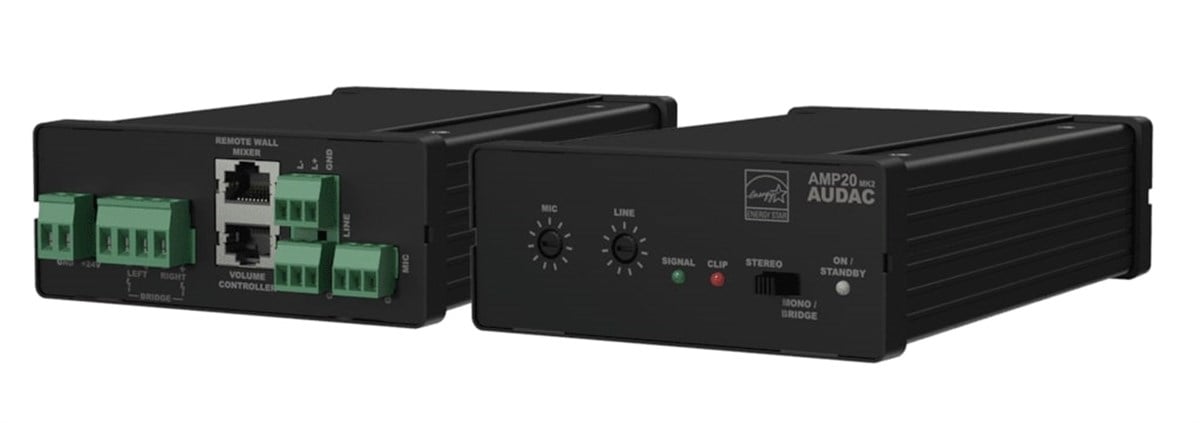

AUDAC AMP20MK2
AUDAC AMP20MK2

AUDAC AMP20MK2 MİNİ STEREO AMPLİFİKATÖR 2 X 15W (AMP20MK2)

Marka : AUDAC
Fiyat : ₺0,00  + KDV
KDV Dahil : ₺0,00

 MİNİ STEREO AMPLİFİKATÖRLER

:

ÖZELLİLER

 *  AUDAC  AMP20MK2





THD+N (@ 1 kHz) < 0.1%
Crosstalk (@ 1 kHz) < -75 dB
Signal / Noise > 95 dB
Efficiency 87%
Cooling Convection cooled
Protection Over heating
Over load
DC Short circuit
Signal limiting
Energy certification Energy Star 3.0
Outputs Type 1 x Stereo Loudspeaker
Connector 4-pin Euro Terminal Block (Pitch - 5.08 mm)
Power Supply 24V DC (PSD241 switching Power supply included 100 ~ 240V AC / 47 ~ 63 Hz)
Inputs Balanced Stereo Type 1 x Stereo Balanced Line
Connector 2 x 3-pin Euro Terminal Block (Pitch - 3.81 mm)
Impedance 20 kΩ
Sensitivity (1W/1m) -12 dBV ~ +12 dBV
Balanced Microphone Type 1 x Balanced Microphone
Connector 3-pin Euro Terminal Block (Pitch - 3.81 mm)
Impedance 47 kΩ
Sensitivity (1W/1m) -50 dBV ~ -18 dBV
Other Connector RJ45
Type 1 x Remote Volume controller
Connector RJ45
Power Consumption Standby 0.8 W (PSD241 included)
RMS Power @ 4 Ω Stereo 2 x 15 W
@ 8 Ω Bridge 30 W
@ 8 Ω Stereo 2 x 7.5 W
PRODUCT FEATURES
Dimensions 108 x 44 x 165 mm (W x H x D)
Weight 0.800 kg
Accessories Included PSD241 - Power supply 24V / 1.67 A (Efficiency Level V)
Optional VC3208 Remote volume controller
WP523 Remote wall mixer
MBS1xx Optional Wall mounting brackets
TR3030 100V Transformer 30 W
