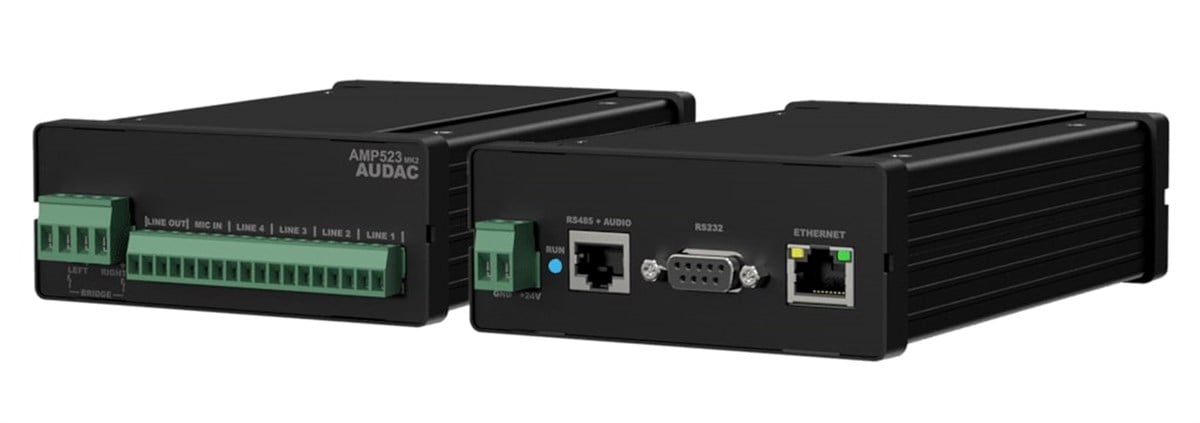

AUDAC AMP523MK2
AUDAC AMP523MK2

AUDAC AMP523MK2 WEB TABANLI MİNİ STEREO AMPLİFİKATÖR 2 X 15W (AMP523MK2)

Marka : AUDAC
Fiyat : ₺0,00  + KDV
KDV Dahil : ₺0,00

 MİNİ STEREO AMPLİFİKATÖRLER

:

ÖZELLİLER

 *  AUDAC  AMP523MK2





THD+N (@ 1 kHz) < 0.1%
Crosstalk (@ 1 kHz) < -75 dB
Signal / Noise > 95 dB
Efficiency 87%
Cooling Passive
Protection Over heating
DC Short circuit
Limiter
Control RS-232
TCP/IP
RS-485
Socket Connections (AUDAC Touch™) 2 sockets
Outputs Type 1 x Stereo Loudspeaker
Connector 4-pin Euro Terminal Block (Pitch - 5.08 mm)
Power Supply 24V DC (PSD241 switching Power supply included 100 ~ 240V AC / 47 ~ 63 Hz)
Inputs Unbalanced Stereo Type 4 x Stereo Unbalanced Line
Balanced Stereo Connector 18-pin Euro Terminal Block (Pitch - 3.81 mm)
Impedance 20 kΩ
Sensitivity (1W/1m) -10 dBV ~ +4 dBV
Balanced Microphone Type 1 x Balanced Microphone
Connector 18-pin Euro Terminal Block (Pitch - 3.81 mm)
Impedance 47 kΩ
Sensitivity (1W/1m) -45 dBV ~ -20 dBV
Other Type 1 x RS-485 + Differential audio
Connector RJ45
Type 1 x RS-232
Connector SUBD9
Type 1 x Ethernet
Connector RJ45
Power Consumption Standby < 3.0 W (PSD242 included)
RMS Power @ 4 Ω Stereo 2 x 15 W
@ 8 Ω Stereo 2 x 7.5 W
Satellite @ 8 Ω Bridge 30 W
PRODUCT FEATURES
Dimensions 108 x 44 x 165 mm (W x H x D)
Weight 0.81 kg
Accessories Included PSD241 - Power supply 24V / 1.67 A (Efficiency Level V)
Optional Wall Controller (MWX45)
WMI18/22 & WLI18/22 Wall input unit
MBS1xx Wall mounting brackets
TR3030 100V Transformer 30 W
