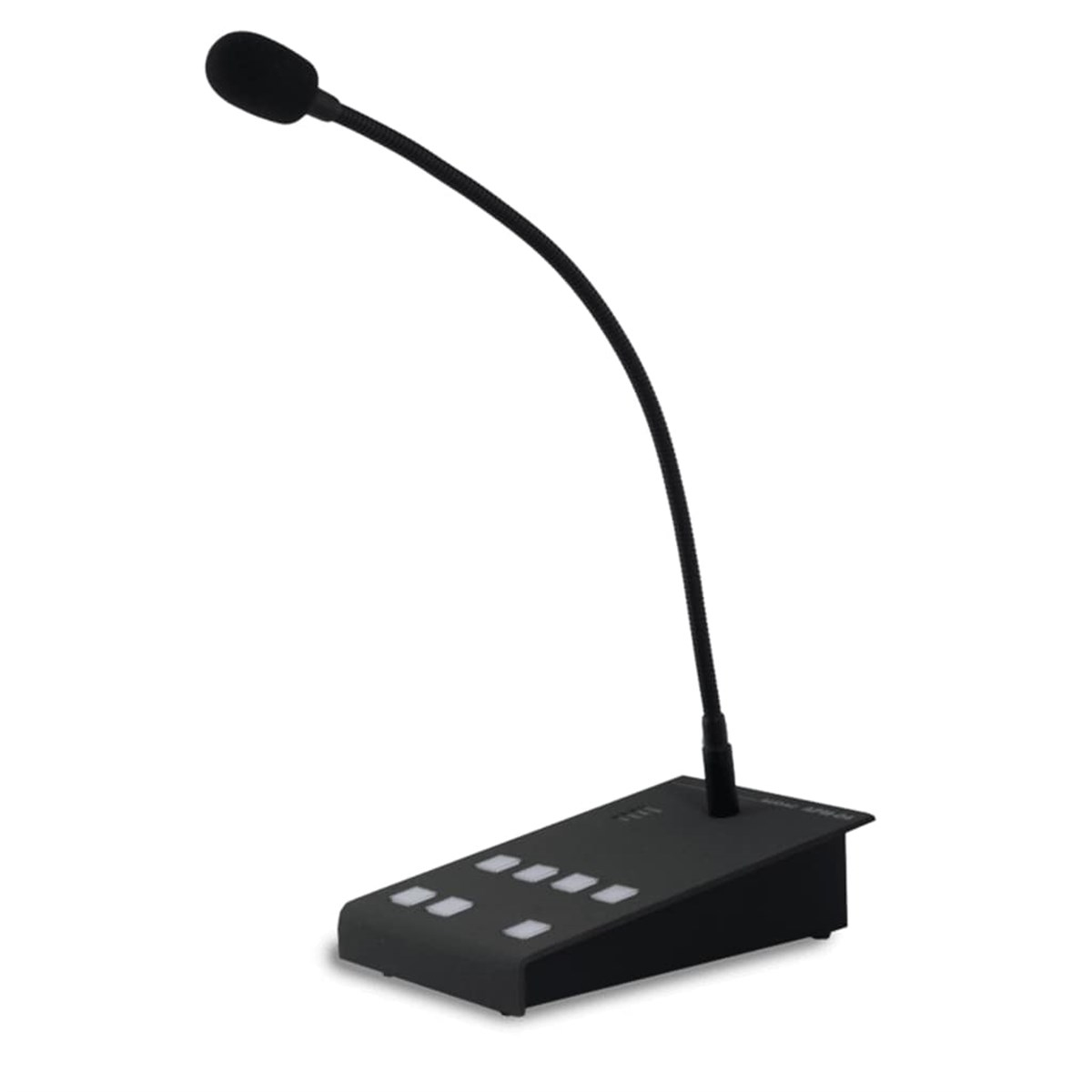

AUDAC APM104MK2
AUDAC APM104MK2

AUDAC APM104MK2 DİJİTAL SAYFA MİKROFONU 4 BÖLGELİ (APM104MK2)

Marka : AUDAC
Fiyat : ₺0,00  + KDV
KDV Dahil : ₺0,00

AUDIO MATRIX SYSTEM ANONS MİKROFONLARI



:

ÖZELLİLER

 *  AUDAC APM104MK2

Polar Pattern Cardioid (unidirectional)
Sensitivity (1W/1m) -42 dB
Indicators 3 Colours illuminated push button
Level & status indication LED’s
Internal storage 10 minutes audio or messages spread over max 30 files
Connectors RJ45 (data + Power)
Connection standard TIA/EIA T568B
Buttons 4 x programmable zone/function
1 x PTT (push-to-talk)
1 x select & clear all
Microphone Type Back electret condenser
Gooseneck length 350 mm
Frequency Response (± 3 dB) 100 Hz - 20 kHz
Power Consumption 4.8 W (max.)
Supply 24 V DC (min. 16V DC)
Max. cable length Without external PSU 113 m
With external PSU 300 m



PRODUCT FEATURES
Dimensions 120 x 55 x 190 mm (W x H x D)
Weight 1.350 kg
Data protocol RS-485
Audio protocol Analogue
Digital (configurable)
Colours Grey metallic front panel
Construction Steel
Required cabling Analog UTP CAT5E
Digital UTP CAT6
Accessories Included Windscreen (MWS05/B)
Optional ARJ03P junction box
CP45ARJ RJ45 junction plate
PSD24x external Power supply
