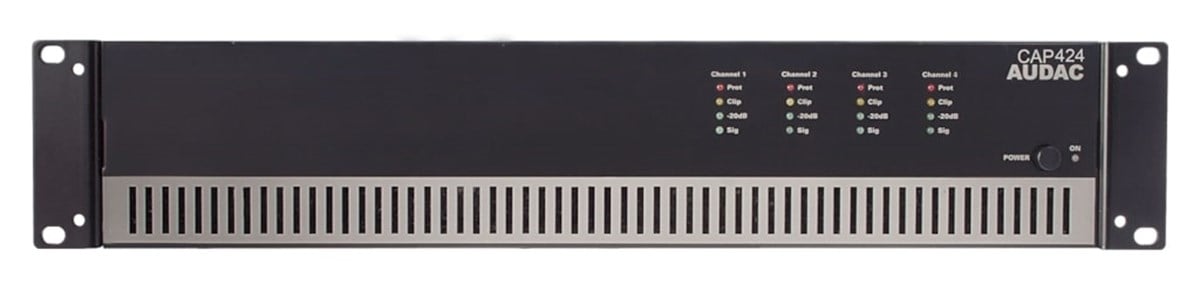

AUDAC CAP424 DÖRT KANALLI GÜÇ AMPLİFİKATÖRÜ 4 X 240W 100V (CAP424)

Marka : AUDAC
Fiyat : ₺0,00  + KDV
KDV Dahil : ₺0,00

CAP4 SERİSİ 4 KANAL 100V AMPLİFİKATÖR

:

ÖZELLİLER

 *  AUDAC  CAP424





RMS Power 4 x 240 W
Signal / Noise > 100 dB
THD+N (@ 1 kHz) < 0.3% (1/2 Rated Power)
Crosstalk (@ 1 kHz) < 80 dB
Technology Class-D
Common mode rejection ratio 70 dB
Protection DC Short circuit
Over heating
Over load
Signal limiting
Cooling Temperature controlled FAN
Operating temperature 0° ~ 40° @ 95% Humidity
Frequency Response (± 3 dB) 50 Hz - 22 kHz
Power Supply Switching mode
Source 230 ~ 240 V AC / 50 Hz
Inputs Sensitivity (1W/1m) -0.5 dB ~ 10.5 dB
Impedance 10 kΩ balanced
Connector XLR female with Male Linkthrough
Outputs Voltage / Impedance 100 V / 42 Ω
Connector 4-pin Euro Terminal Block (Pitch - 5.08 mm)
PRODUCT FEATURES
Dimensions 482 x 88 x 420 mm (W x H x D)
Weight 8.350 kg
Mounting 19”
Unit height 2 HE
Construction Steel
Colours Black
Accessories Included 4 x 4-pin Euro Terminal Block outputs connector
Optional CPE100 Rack mount handles
