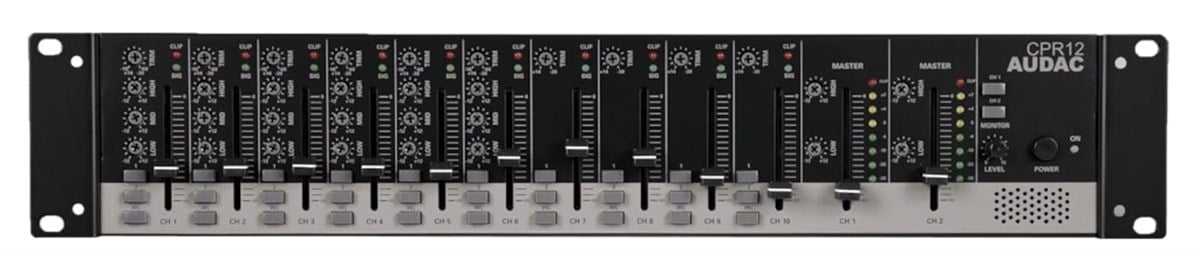

Audac CPR12 - 2 Bölge 10 Kanal Mono Preamp (CPR12)

Marka : AUDAC
Fiyat : ₺0,00  + KDV
KDV Dahil : ₺0,00

PREAMPLIFIERS & MIXERS

:

ÖZELLİLER

 *  AUDAC  CPR12



Balanced Master Outputs 0 dBm
Unbalanced Sub Outputs 0 dBm
Unbalanced Rec Outputs -10 dBm
Balanced Microphone channels -60 dBm
THD+N (@ 1 kHz) < 0.2 dB
Residual Noise < -90 dB
Signal / Noise > 90 dB
Crosstalk (@ 1 kHz) < -70 dB
Phantom Power 15 V DC
Frequency Response (± 3 dB) 20 Hz - 20 kHz
Power Supply 100 ~ 240 V AC / 50 ~ 60 Hz
Consumption 22 W
Inputs Balanced Mono Type 6 x Balanced Mono Line
Sensitivity (1W/1m) -30 dBm
Unbalanced Stereo Type 3 x Unbalanced Line
Sensitivity (1W/1m) -30 dBm
EQ High (12.5 kHz) +- 12 dB
Mid (2.5 kHz) +- 12 dB
Low (80 Hz) +- 12 dB
Outputs EQ High (12.5 kHz) +- 12 dB
Low (80 Hz) +- 12 dB
PRODUCT FEATURES
Dimensions 482 x 88 x 325 mm (W x H x D)
Weight 5.300 kg
Mounting 19”
Unit height 2 HE
Construction Steel
