AUDAC MTX88
AUDAC MTX88
AUDAC MTX88

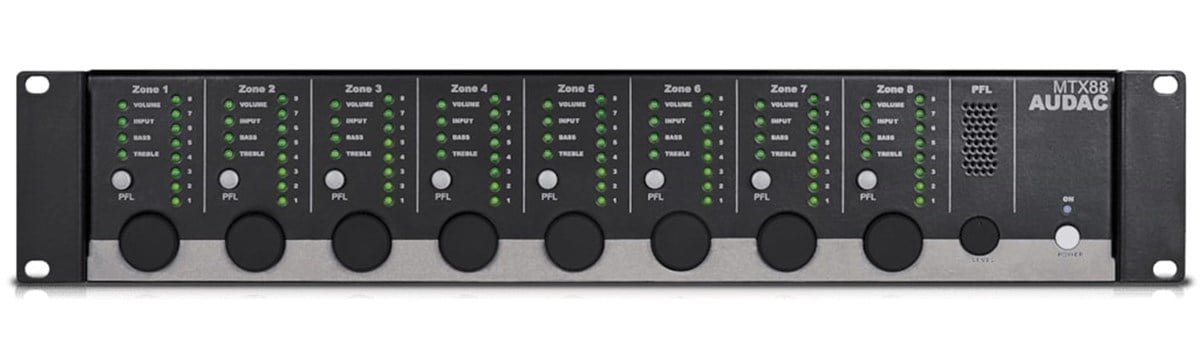

Audac MTX88 8 Zone Audio Matrix (MTX88)

Marka : AUDAC
Fiyat : ₺0,00  + KDV
KDV Dahil : ₺0,00

Orjinal Ürün - Hızlı ve Ücretsiz Kargo - Türkiye Distribitör Garantisi

:

ÖZELLİLER

 *  AUDAC  MTX88

Crosstalk (@ 1 kHz) -85 dB
Control Front panel
RS-232
TCP/IP (RJ45)
Wall panel (RS-485)
Audac Touch™
Web (Flash)
Socket Connections (AUDAC Touch™) 5 sockets
Outputs Type 8 x Stereo Balanced Line
Connector 3-pin Euro Terminal Block (Pitch - 3.81 mm)
Impedance 51 Ω
Level -70 dB ~ 0 dB
Frequency Response (± 3 dB) 20 Hz - 20 kHz
Power Consumption 12 W
Supply 100 ~ 240 V AC / 50 ~ 60 Hz
24 V DC (emergency Power)
Inputs Balanced Microphone Type 2 x Balanced Microphone
Connector XLR
Sensitivity (1W/1m) 0 dBV ~ -50 dBV
Phantom Power 15 V DC
Signal / Noise > 80 dB
THD+N (@ 1 kHz) < 0.05 dB
Unbalanced Stereo Type 4 x Stereo Unbalanced Line
Connector RCA
Sensitivity (1W/1m) -14 dB ~ +9 dB
Signal / Noise > 100 dB
THD+N (@ 1 kHz) < 0.01 dB
Wall Panel Type 8 x Wall panel input
Connector RJ45
Other Type 1 x Priority mute contacts
Outputs EQ Treble ± 14 dB (2.5~20 kHz)
Bass ± 14 dB (100 Hz)
Inputs Balanced Microphone EQ High ± 15 dB (12.5 kHz)
Mid ± 15 dB (2.5 kHz)
Low ± 15 dB (80 Hz)
PRODUCT FEATURES
Dimensions 482 x 88 x 335 mm (W x H x D)
Weight 4.840 kg
Unit height 2 HE
