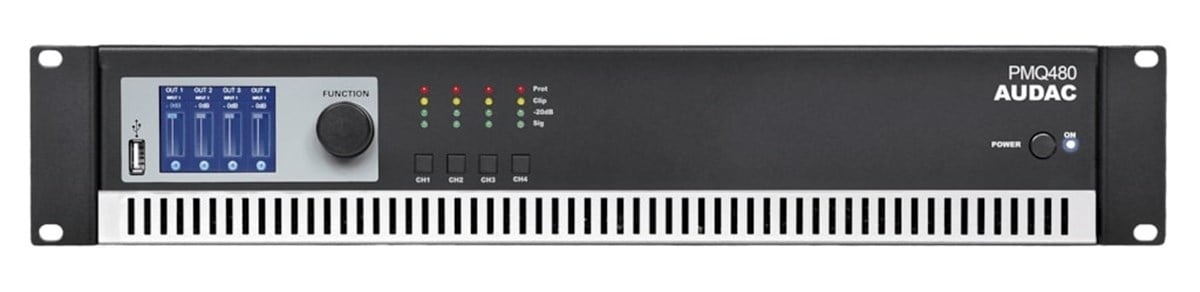

AUDAC PMQ480
AUDAC PMQ480
AUDAC PMQ480

AUDAC PMQ480 DÖRT KANAL 100V GÜÇ AMPLİFİKATÖRÜ (PMQ480)

Marka : AUDAC
Fiyat : ₺0,00  + KDV
KDV Dahil : ₺0,00

PMQ SERİSİ 100V DSP AMPLİFİKATÖRLER



:

ÖZELLİLER

 *  AUDAC  PMQ480



RMS Power 4 x 480 W
Signal / Noise > 95 dB
Crosstalk (@ 1 kHz) > 70 dB
Technology Class-D
Common mode rejection ratio 70 dB
Damping factor > 200
Cooling Temperature controlled FAN
Operating temperature 0° ~ 40° @ 95% Humidity
Frequency Response (± 3 dB) 50 Hz - 20 kHz
Power Supply Switching mode
Inputs Sensitivity (1W/1m) -30 dB ~ +5 dB
Impedance 10 kΩ balanced
Protection Amplifier DC Short circuit
Over heating
Over load
Signal limiting
Access User & Administrator level (Through password and USB-key protection)
Inputs Connector XLR & 3-pin Euro Terminal Block (3.81 mm)
Outputs Connector 4-pin Euro Terminal Block (Pitch - 5.08 mm)
Power Supply Operating 230 ~ 240 V AC / 50 ~ 60 Hz
PRODUCT FEATURES
Dimensions 482 x 88 x 420 mm (W x H x D)
Weight 8.5 kg
Mounting 19”
Unit height 2 HE
Construction Steel
Colours Black
