| Overall System |
| Operating Frequencies |
Band DE2: 470.125 to 529.975 MHz (2395 frequencies)
Band EE1: 530.000 to 589.975 MHz (2400 frequencies)
Band EF1: 590.000 to 649.975 MHz (2400 frequencies)
Band FG1: 650.000 to 699.875 MHz (1996 frequencies) |
| Minimum Frequency Step |
25 kHz |
| Modulation Mode |
FM |
| Maximum Deviation |
ATW-T3201: ±38 kHz (THD:10%)
ATW-T3202: ±36 kHz (THD:10%) |
| Frequency Response |
ATW-T3201: 31 Hz to 15,500 Hz
ATW-T3202: 25 Hz to 16,700 Hz
Frequency response depends on attached microphone element |
| Operating Range |
100 m (328')
Open range environment with no interfering signals. |
| Total Harmonic Distortion |
<1.0% (at 1 kHz, ±17.5 kHz deviation) |
| Operating Temperature Range |
-5° C to +45° C (23° F to 113° F) |
| Simultaneous Use |
40 Channels per band*
For assistance with multi-band operation or other frequency coordination issues, please contact your regional Audio-Technica customer service representitive. *Region and band dependent |
| Handheld Transmitter |
| RF Power Output |
High: 30 mW, Low: 10 mW (switchable), at 50 ohms |
| Spurious Emissions |
Following Federal and National Regulations |
| Battery Type |
Two 1.5V AA, not included |
| Battery Life |
High: 8.0 hours (alkaline), Low: 9.0 hours (alkaline)
High: 9.0 hours (Ni-MH 1900mAh), Low: 9.5 hours (Ni-MH 1900mAh)
Depending on battery type, usage, and environmental conditions. |
| Dimensions |
ATW-T3202 (without capsule): 193 mm (7.60") long, 37 mm (1.46") maximum diameter
ATW-T3202/C510: 265 mm (10.43") long, 54 mm (2.13") maximum diameter
ATW-T3202/C710: 271 mm (10.67") long, 50 mm (1.97") maximum diameter |
| Net Weight |
ATW-T3202 (without capsule): 200 g (7.1 oz), without batteries
ATW-T3202/C510: 330 g (11.6 oz), without batteries
ATW-T3202/C710: 314 g (11.1 oz), without batteries |

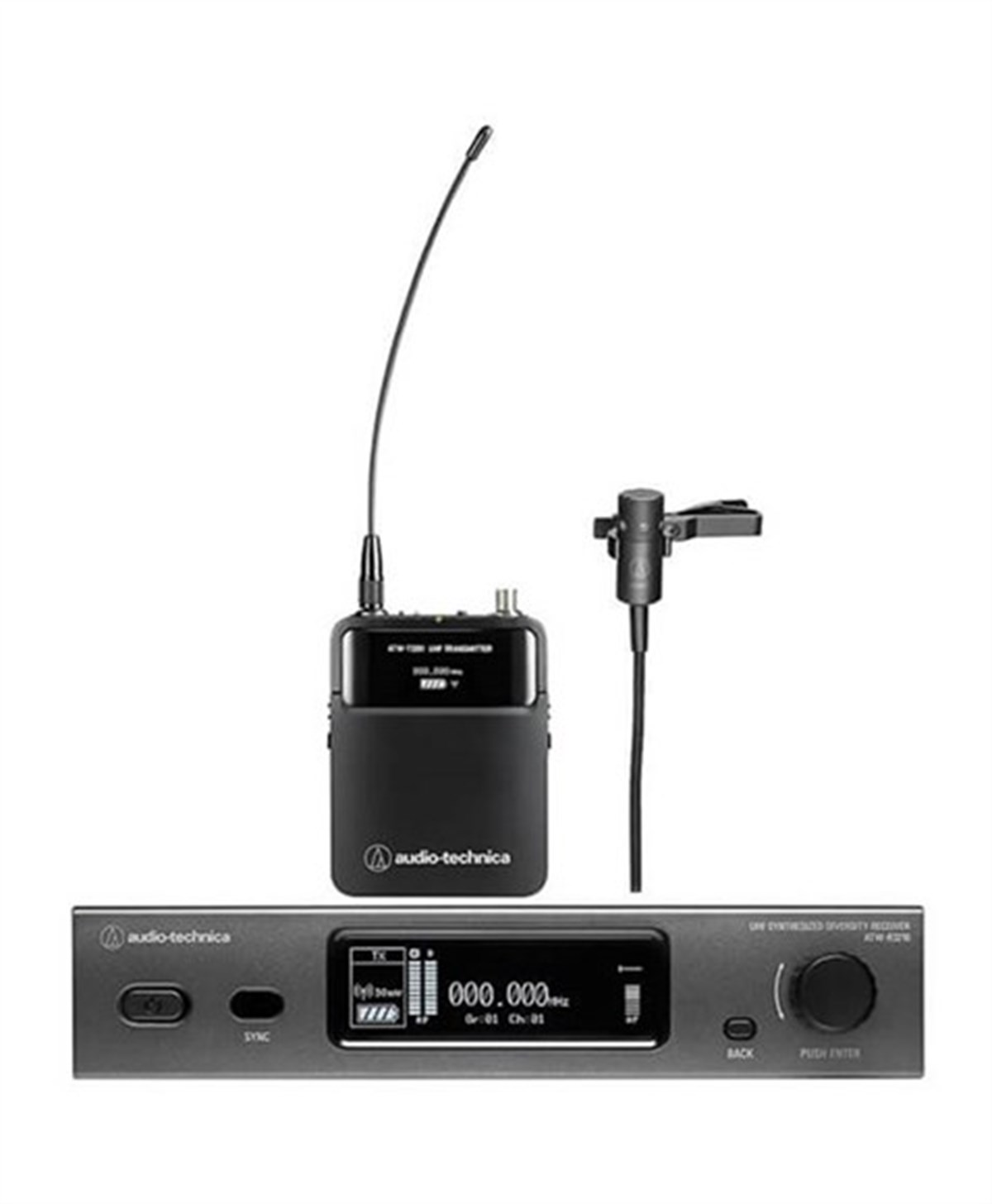

| Body Pack |
| RF Power Output |
High: 30 mW, Low: 10 mW (switchable), at 50 ohms |
| Battery Life |
High: 8.0 hours (alkaline), Low: 9.0 hours (alkaline)
High: 9.0 hours (Ni-MH 1900mAh), Low: 9.5 hours (Ni-MH 1900mAh)
Depending on battery type, usage, and environmental conditions. |
| Battery Type |
Two 1.5V AA, not included |
| Dimensions |
64 mm x 82 mm x 23 mm (W x D x H)
2.52" x 3.22" x 0.91" (W x D x H) |
| Input Connections |
cH-style screw-down 4-pin connector
Pin 1: GND
Pin 2: INST INPUT
Pin 3: MIC INPUT
Pin 4: DC BIAS +5V |
| Net Weight |
102 g (3.6 oz), without batteries |
| Spurious Emissions |
Following Federal and National Regulations |
| Receiver |
| Receiving System |
True Diversity |
| Image Rejection |
60 dB nominal |
| Maximum Output Level |
XLR, balanced: +14 dBV
6.3 mm (1/4"), unbalanced: +8 dBV |
| Antenna Input |
BNC-type, 50 ohms |
| Power Supply |
100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply |
| Dimensions |
210.0 mm x 191.0 mm x 43.4 mm (W x D x H)
8.27" x 7.52" x 1.71" (W x D x H) |
| Weight |
1100 g (38.8 oz), without accessories |
| Accessories Included |
Two flexible UHF antennas; AC adapter (country dependent); rack-mount Adapters |
