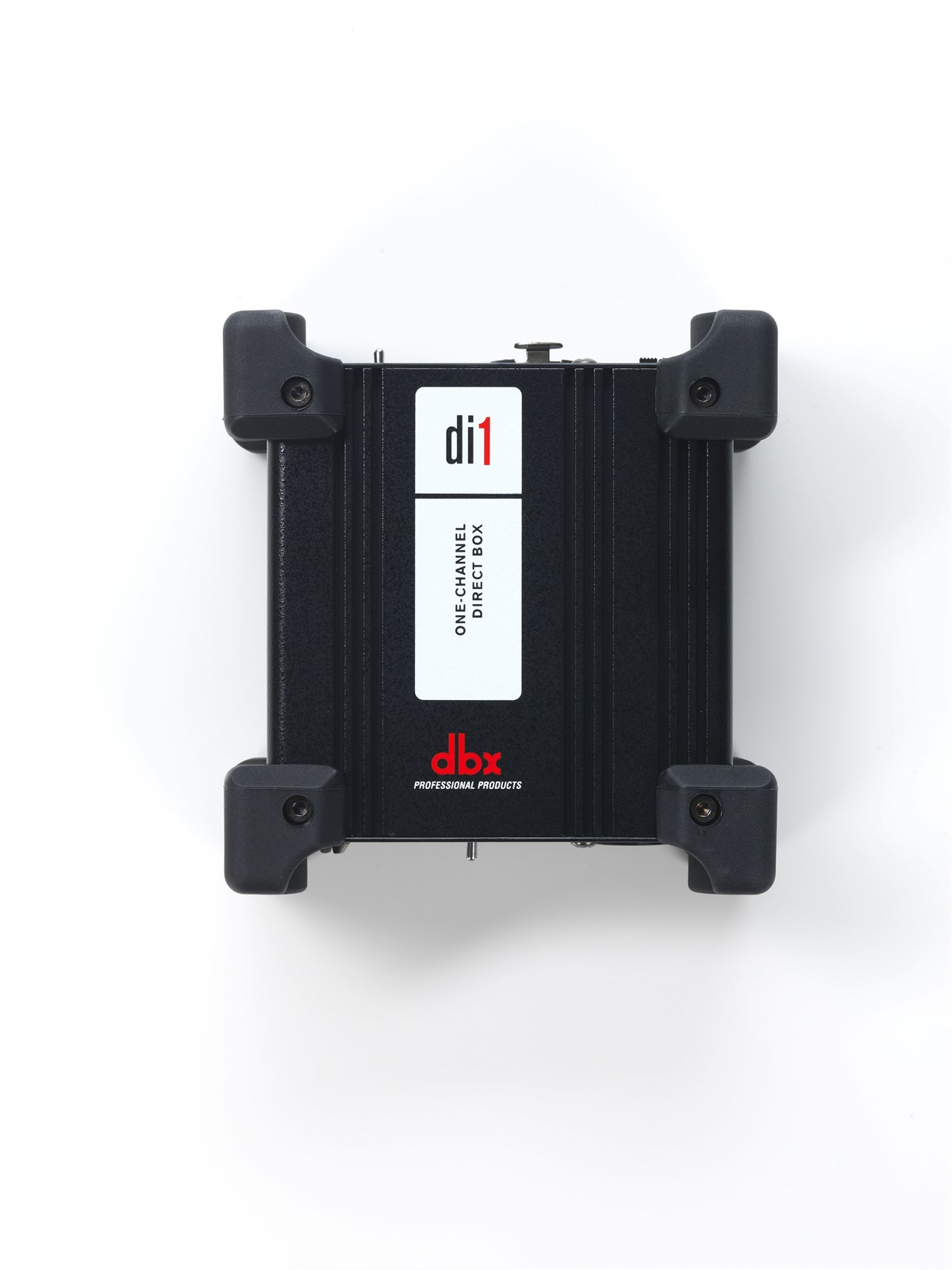

Dbx DI1 Active direct box (DI1 )

ÖZELLİKLER

Level and impedance matching function

Output impedance: > 600 Ohms

Signal pass through connector

Output connector: XLR balanced

Battery LED indicator

Distortion: (THD) < 0.005% at 1kHz, 0dBu

Phantom power LED indicator

Max Input: +12dBu (at 0dB) Level +32dBu (at -20dB) +52dBu (at -40dB)

Output Noise: <-100dB unweighted

TS and XLR inputs and outputs

Frequency response: 10Hz to 70kHz, +0dB/-3dB

Attenuation control

Phantom Power: +18 volts DC to +48 volts DC

Ground lift switch

Main/Standby: 9V battery

Input Impedance: >250k Ohm

Metal Chassis
