Denon DN-312 X 12 Kanal Rack Tipi Line Mikser

Denon DN-312 X 12 Kanal Rack Tipi Line Mikser (DN-312 X)

Fiyat : $0.00  + KDV
KDV Dahil : ₺0,00

DENON PROFESSIONAL MİXSERS

:

ÖZELLİKLER

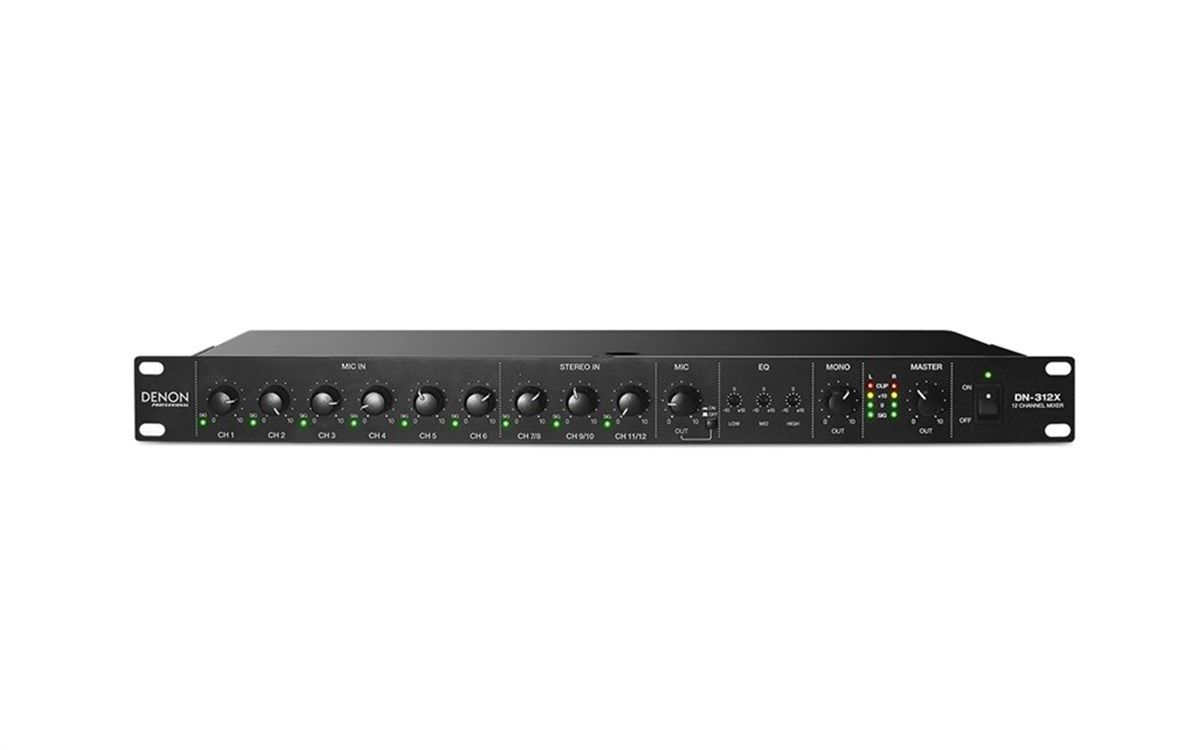

DENON DN-312 X

12 Kanal Line Mikser - with Priority

Input Channels

  • Microphone Input: 6 Balanced XLR Connectors (Channels 1–6)
  • Frequency Response: 20 Hz - 22 kHz
  • THD+N: < 0.03% @ 1 kHz
  • Sensitivity: -40 dBu
  • Maximum Input: -19 dBu

Maximum Voltage Gain:

  • 60 dB (Mic Input to Line Out, Mic Out & Mono Out)
  • 50 dB (Mic Input to Rec Out)
  • Signal-to-Noise Ratio: > 103 dB
  • Phantom Power: 18–21 V, switch control

Line Inputs: 6 Balanced XLR Connectors (Channels 1–6)

  • Frequency Response: 20 Hz - 22 kHz
  • THD+N: < 0.03% @ 1 kHz
  • Sensitivity: 0 dBu
  • Maximum Input: +21 dBu

Maximum Voltage Gain:

  • 20 dB (Mic Input to Line Out, Mic Out & Mono Out)
  • 10 dB (Mic Input to Rec Out)
  • Signal-to-Noise Ratio: > 103 dB

Line Inputs: Stereo Balanced RCA Connectors (Channels 7/8-11/12)

  • Frequency Response: 20 Hz - 22 kHz
  • THD+N: < 0.03% @ 1 kHz
  • Sensitivity: +10 dBu
  • Maximum Input: +21 dBu

Maximum Voltage Gain:

  • 10 dB (Line Input to Line Out)
  • 0 dB (Line Input to Rec Out)
  • 4 dB (Line Input to Mono Out)
  • Signal-to-Noise Ratio: > 103 dB

Impedance:

  • Mic/Line Input: 1.4 kΩ
  • Line Input: > 10 kΩ
  • All Outputs: 120 Ω

Equalizer

  • High: +15 dB @ 12 kHz
  • Mid: +12 dB @ 2.5 kHz
  • Low: +15 dB @ 80 Hz

Crosstalk

Adjacent Inputs:

  • < -70 dB @ 1 kHz (Channels 1–6)
  • < -68 dB @ 1 kHz (Channels 7/8–11/12)

Input to Output:

  • < -82 dB @ 1 kHz

Main MixOutput

  • Line Output: 0 dBu (+2 dBu), balanced
  • Mic Output, Mono Output: 0 dBu (+2 dBu), unbalanced
  • Maximum Output: +21 dBu balanced/unbalanced, 1/4” (6.35 mm) jacks
  • Noise (Bus): < -83 dB @ 20 Hz – 22 kHz

General

  • Power connection: IEC
  • Input Voltage: 100V~, 110-120V~, 50/60Hz; 220-240V~, 50/60Hz or DC24V
  • Dimensions: (width x depth x height): 19.0” x 7.7” x 1.7” (483 x 195 x 44 mm)
  • Weight: 6.4 lbs (2.9 kg)
