DENON DN-501 CEM (DN-501 CEM)

ÖZELLİKLER

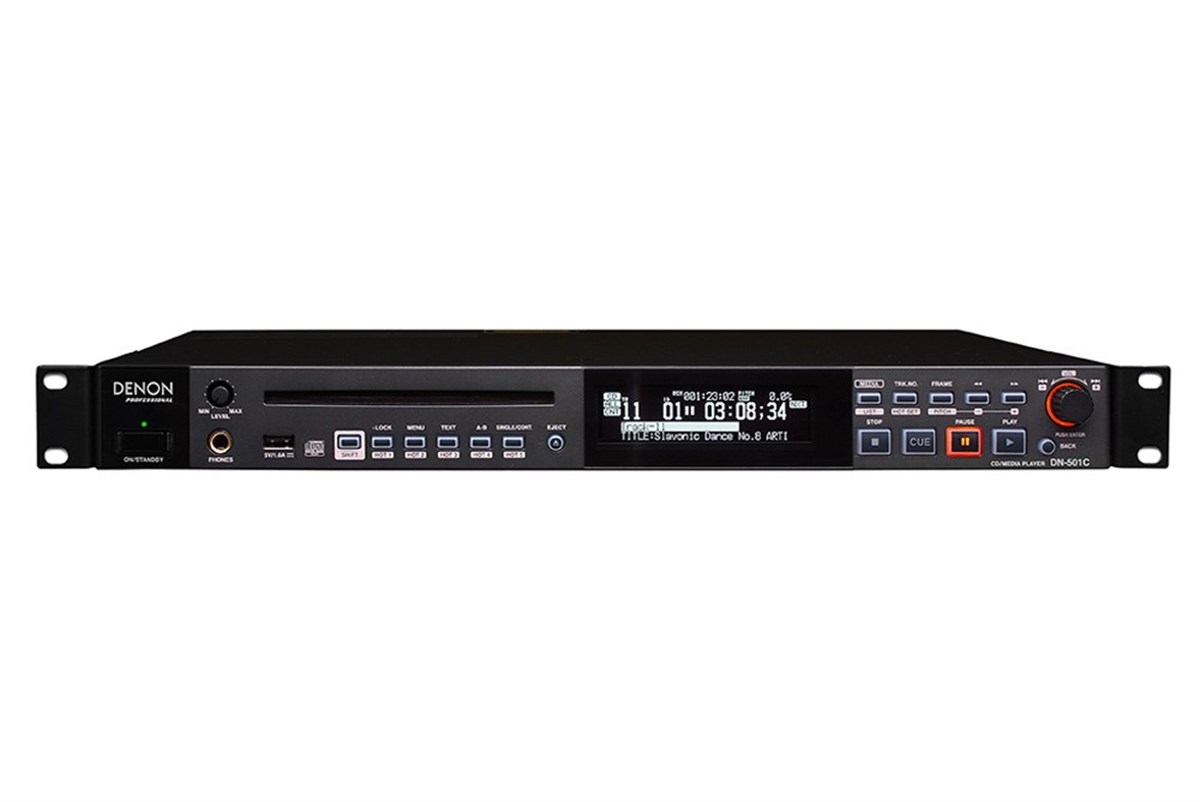

DENON DN-501 CEM

CD / Media Player with Digital Audio Outputs and RS-232c

• System: CD/Media Player
• Compatible media: CD Media, USB flash memory, USB HDD, iPod/iPhone
• Playable formats, file systems
• CD: CD-DA (CD TEXT), CD-ROM (ISO9660)
• USB: FAT16/FAT32/HFS+

• Extension: WAV
• Resolution: 16 bit, 24 bit
• Sampling frequency: 96, 48, 44.1 kHz

• Extension: AIFF, AIF
• Resolution: 16 bit, 24 bit
• Sampling frequency: 96, 48, 44.1 kHz

• Extension: MP3
• Bit rate: 32 – 320 kbps and VBR
• Sampling frequency: 48, 44.1 kHz

• Extension: M4A
• Compression method: AAC-LC
• Bit rate: 64 – 320 kbps and VBR
• Sampling frequency: 48, 44.1 kHz

• Audio frequency characteristics: 20 Hz - 20 kHz (±0.5 dB)
• S/N ratio: More than 105 dB (A-Weighted)
• Total harmonic distortion: Less than 0.005 %
• Dynamic range: More than 105 dB (for 24 bit WAV playback)
• Channel separation: Less than –106 dB
• Variable pitch width: –16 % – +16 % (0.1% step)
• Variable Output trim adjustment width: ±2.0dB (0.1dB step)

• 0 dBu=0.775 Vrms
• 0 dBV=1.0 Vrms
• BALANCED ANALOG OUT L/R
• Type: XLR (1:GND, 2:Hot, 3:Cold)
• Load impedance: Over 600 Ω/ohms
• Output level: +6dBV (+8.23dBu)(600Ω/ohms Load)
• Output level setting: +24dBu, +20dBu, +18dBu,+6dBV (0dBFS Reference)

• Type: RCA terminal
• Load: impedance Over 10 kΩ/kohms
• Output level: +6dBV (10kΩ/kohms Load)
• Output level setting: +10dBV, +6dBV, +4dBV (0dBFS Reference)

• Type: XLR(1:GND, 2:Hot, 3:Cold)
• Output impedance: 110 Ω/ohms
• Format: IEC-60958(AES/EBU)

• Type RCA terminal
• Output impedance: 75 Ω/ohms
• Standard output level: 0.5 Vp-p
• Format: IEC-60958(COAXIAL)

• 20 mW/32 Ω/ohms

• Maximum storage capacity: Up to 2 TB
• Maximum file size: 2 GB
• Maximum number of files: 2000 files (for 1 folder)
• Maximum number of folders: 1000 folders
• Maximum number of folder hierarchies: 8 (under the root directory)
• Maximum file name length: 255 characters
• Maximum folder name length: 255 characters

• Operating temperature: 5 – 35 °C
• Operating humidity: 25 – 85 %, no condensation
• Storage temperature: –20 – 60 °C

• Power supply
• AC 120 V, 60 Hz (U.S.A and Canada models)
• AC 230 V, 50/60 Hz (European, U.K and Asia/Pacific models)

• 30 W
• 0.4 W (standby)

• 19.00” x 12.78” x 1.73” (483 mm x 325 mm x 44 mm)

• 8 lbs 13.10 oz (4,0 kg)
