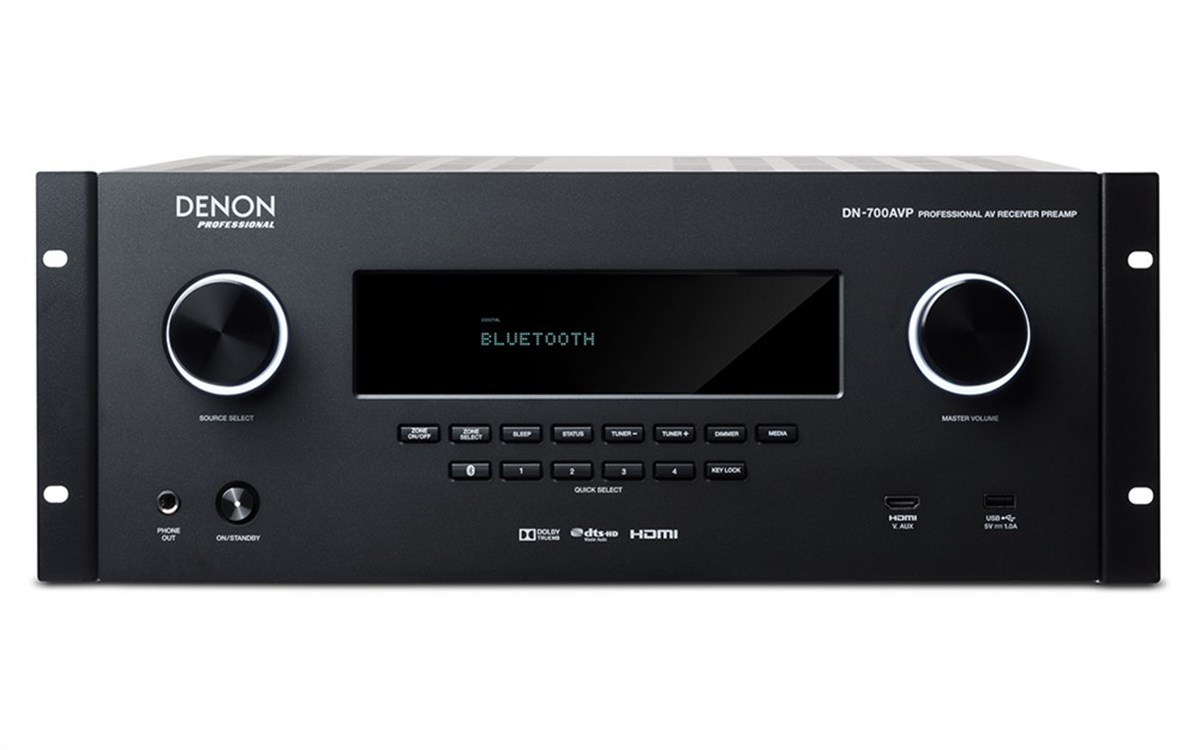

Denon DN-700 AVP Surround Sound Preamplifiers (DN-700 AVP)

ÖZELLİKLER

DENON DN-700 AVP

Bluetooth Specifications

• Version: 4.0
• Profile: A2DP, AVRCP
• Maximum Transmission Power: -6dB ± 4dB, Class 2
• Frequency: 2.4GHz - 2.48 GHz

• Frequency Range: 87.5 MHz - 108 MHz

• File System: FAT 16/32
• Media Type: USB Flash Drive

• Preamp Outputs: 7.1 Surround Sound
• Level: -10dB or +4db
• Frequency Response: 10Hz - 20kHz ± 1.0dB
• Dynamic Range: 10kHz - 20kHz, A-weighted >90dB
• Signal-to-Noise: 1 kHz, 0 dB, A-weighted >90dB
• Distortion: <0.006%
• T.H.D: 1 kHz, 0 dB, A-weighted <0.01%

• Supported Surround Formats: Dolby TrueHD, Dolby Digital Plus, Dolby Digital, DTS-HD Master Audio, DTS ES
• Supported File Types: WMA, MP3, WAV, MPEG-4 AAC, and FLAC files
• Analog Input
• Unbalanced RCA: Nominal level -10 dBV (at full scale: -16dB)
• Minimum Input Level: -19 dBV or higher
• Input Impedance: 47 kΩ ± 10%, unbalanced

• Coaxial: RCA (IEC-60958 Type II)
• Optical: Toslink (IEC-60958 Type II)

• Input/Output Level: 1V/p-p
• Impedance: 75 Ω
• Frequency Response: 5 Hz - 10 MHz

• Input Level:
• Y signal, 1Vp-p
• Pb/Cb signal, 0.7Vp-p
• Pr/Cr signal, 0.7Vp-p

• Y signal, 75 Ω
• Pb/Cb signal, 75 Ω
• Pr/Cr signal, 75 Ω
• Frequency Response: 5 Hz - 60 MHz
• HDMI: Version 1.4b (3D and ARC supported)

• Connection: IEC
• Input Voltage: 100 - 120V / 220-240V
• Consumption: 30W
• Operating Temperature: 41° F - 113° F
• Operating Humidity: 25 - 85%, non-condensing
• Dimensions: 19.00"w x 13.66"d x 6.93"h (483 x 347 x 176mm)
• Weight: 19.1 lbs (8.66kg)
