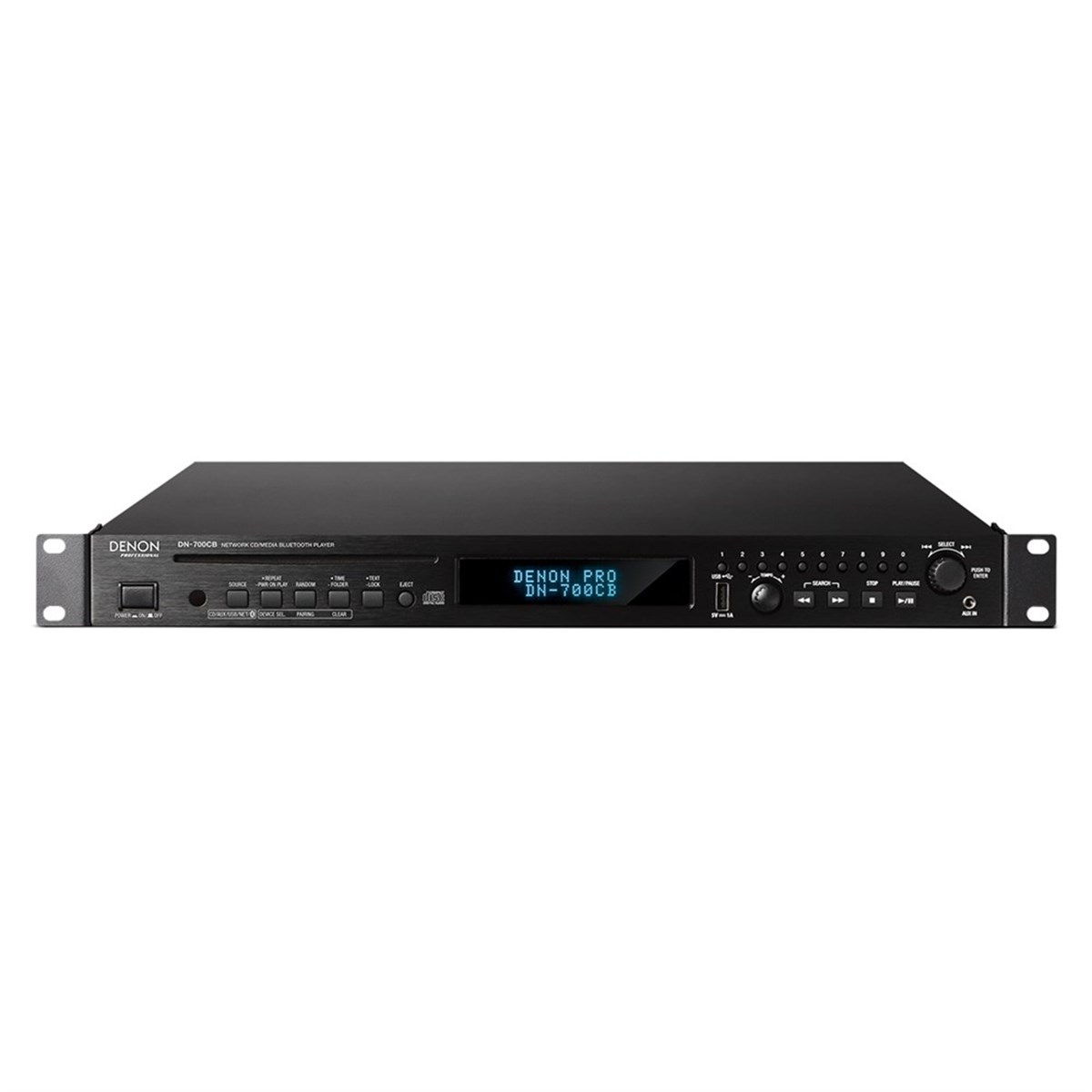

Denon DN-700CB Network CD/Media Bluetooth Player

Denon DN-700CB Network CD/Media Bluetooth Player (DN-700 CB)

Fiyat : $0.00  + KDV
KDV Dahil : ₺0,00

DENON PROFESSIONAL AUDIO & VIDEO PLAYERS

:

ÖZELLİKLER



DENON DN-700 CB





Network CD/Media Bluetooth® Player



System: Media player

Compatible Media

CD

3.5mm auxiliary device

Type A USB device (mass storage class)

Network-connected device (via Ethernet port)

Bluetooth audio



Supported Device Formats, File Systems

CD: CD-DA, CD-ROM (ISO9660), CD-R

USB: FAT16, FAT32



Supported File Formats (for CDs, USB devices and network-connected devices)

CD-DA: Sample rate: 44.1/48kHz

Bit rate: 16/24 bit

File extension: .cda



WAV: Sample rate: 44.1/48kHz

Bit rate: 16/24 bit

Format: stereo/mono

File extension: .wav



MP3: Sample rate: 44.1kHz

Bit rate: 32 kbps to 320 kbps, CBR and VBR

Format: MPEG1 Audio Layer 3

File extension: .mp3





Number of Channels: 2 (stereo)

Audio Frequency Range: 10 Hz - 20 kHz (± 1.0db)

Signal-to-Noise Ratio: > 90dB (A-weighted)

Total Harmonic Distortion: < 0.01%

Dynamic Range: > 85dB

Channel Separation: > 80dB

Bluetooth

Bluetooth Version: 4.0

Output Class: Class 2

Supported Bluetooth Profiles: A2DP, AVRCP (1.3/1.4)

Supported Bluetooth Codecs: SBC, MP3

Bluetooth Range: 82 ft. / 25 m



Outputs

Analog Out L/R (unbalanced)

Type: RCA terminal

Load impedance: > 10 kΩ

Output level: 2 Vrms @ 10 kΩ load



Analog Out L/R (balanced)

Type: XLR

Load impedance: > 10 kΩ

Output level: +4 dBu





Inputs

Aux in

Type: 1/8" (3.5mm) TRS terminal

Input Impedance: > 10 kΩ

Maximum input level: 1 Vrms





Remote Control

Included Remote

Infrared protocol: NEC format

Transmit output level: > 200mVp-p



Serial Remote (D-sub 9-pin Female; RS-232C), Not Included

Mode: Full Duplex

Baud Rate: 9600/38400/115200 b/s

Data: 8 bits (Start Bit: 1 bit; Stop Bit: 1 bit)

Parity: None; Flow Control: None



IP Control

Web API: HTTP





Other / General

File Folder Limits

Storage capacity: up to 2TB

File size: up to 2GB

File name length: up to 255 characters

Number of files: up to 999 (for 1 folder)

Number of folders: up to 999 folders (including the root directory)

Number of folder levels: up to 8 (including the root directory)

Folder name length: up to 255 characters



Power: 100-230 VAC, 50/60 Hz; Power consumption: < 30W

Environmental Conditions

Operating temperature: 41 - 95°F (5 -35°C)

Operating humidity: 25 - 85%, no condensation



Dimensions (width x depth x height)

18.98" x 1.69" x 7.87" (482 x 43 x 200mm) with rack ears

16.93" x 1.69" x 7.87" (430 x 43 x 200mm) without rack ears









Weight: 5.5 lb (2.5 kg
