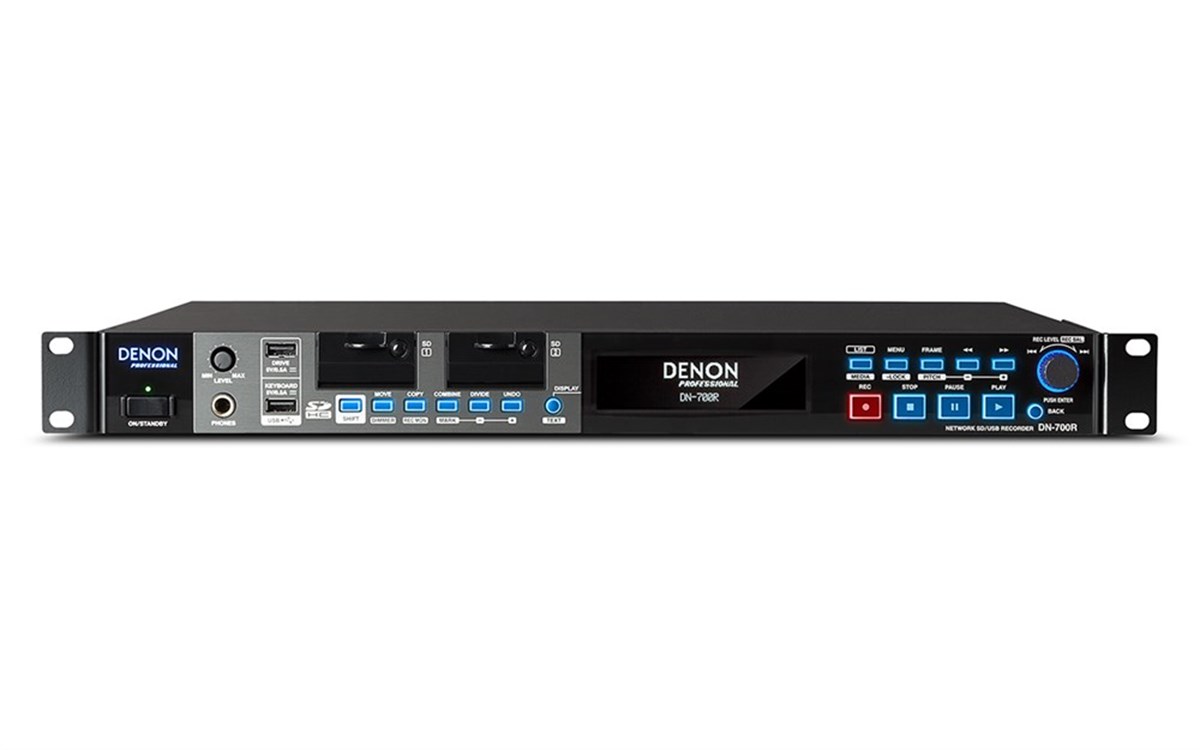

DENON DN-700 R





Network SD/USB Ses Kaydedici/Oynatıcı

File Format Specifications





  • Compatible media: SD/USB memory/USB HDD
  • Playable formats, file systems: SD, USB: FAT16/FAT32/HFS+

Playable WAV Format

  • Extension: WAV, AIFF, AIF
  • Resolution: 16 bit, 24 bit
  • Sampling frequency: 96, 48, 44.1 kHz



Playable MP3 Format

  • Extension: MP3
  • Bit rate: 32 – 320 kbps and VBR
  • Sampling frequency: 48, 44.1 kHz



Playable AAC Format

  • Extension: M4A
  • Compression method: AAC-LC
  • Bit rate: 64 – 320 kbps and VBR
  • Sampling frequency: 48, 44.1 kHz





Audio Specifications

  • Number of channels: 2 (stereo), 1 (mono)
  • Audio frequency characteristics: 20 Hz – 20 kHz (+0.5 dB / –1 dB)
  • S/N ratio: More than 89 dB (A-Weighted)
  • Total harmonic distortion: Less than 0.01 %
  • Dynamic range: More than 106 dB (for 24 bit WAV playback)
  • Channel separation: Less than –90 dB
  • Variable pitch width: –16 % – +16 %
  • Variable trim adjustment width: ±2.0 dB



INPUT - Balanced Analog IN L/R

  • Type: XLR (1:GND, 2:Hot, 3:Cold)
  • Input level: +4 dBu
  • Maximum input level: +24 dBu/+20 dBu/+18 dBu
  • Input impedance: 20 kΩ



INPUT - Unbalanced Analog IN L/R

  • Type: RCA terminal
  • Input level: –10 dBV
  • Maximum input level: +10 dBV/+6 dBV/4 dBV
  • Input impedance: 10 kΩ



INPUT - Unbalanced Digital IN

  • Type: RCA terminal
  • Input impedance: 75 Ω
  • Standard input level: 0.5 Vp-p
  • Format IEC-60958(COAXIAL)



INPUT - Balanced Digital IN

  • Type: XLR (1:GND, 2:Hot, 3:Cold)
  • Input impedance: 110 Ω
  • Standard input level: 3.5 Vp-p
  • Format: IEC-60958(AES/EBU)



OUTPUT - Balanced Analog L/R

  • Type: XLR (1:GND, 2:Hot, 3:Cold)
  • Load impedance: Over 600 Ω
  • Output level: +4 dBu at 600 Ω load
  • Maximum Output level: +24 dBu/+20 dBu/+18 dBu



OUTPUT - Unbalanced Analog L/R

  • Type: RCA terminal
  • Load impedance: Over 10 kΩ
  • Output level: –10 dBV
  • Maximum output level: +10 dBV/+6 dBV/+4 dBV



OUTPUT - Balanced Digital

  • Type: XLR (1:GND, 2:Hot, 3:Cold)
  • Output impedance: 110 Ω
  • Standard output level: 3.0 Vp-p
  • Format: IEC-60958(AES/EBU)



OUTPUT - Unbalanced Digital

  • Type: RCA terminal
  • Output impedance: 75 Ω
  • Standard output level: 0.5 Vp-p
  • Format: IEC-60958(COAXIAL)



OUTPUT - Headphone Out

  • 20 mW/32 Ω



Other

  • Maximum storage capacity: Up to 2 TB
  • Maximum file size: 2 GB
  • Maximum number of files: 2000 files (for 1 folder)
  • Maximum number of folders: 1000 folders
  • Maximum number of folder hierarchies: 8 (under the root directory)



Environmental

  • Operating temperature: 5 – 35 °C
  • Operating humidity: 25 – 85 %, no condensation
  • Storage temperature: –20 – 60 °C



General

  • Power supply (U.S.A and Canada models): AC 120 V, 60 Hz
  • Power Supply (European, U.K and Asia/Pacific models): AC 230 V, 50/60 Hz
  • Power consumption: 30W (typical), 0.4W (standby)





  • Dimensions (L x W x H): 19" x 13" x 1.74" (483 x 330 x 44 mm)
  • Weight: 7 lbs 14.99 oz (3.6 kg)





  •





  •
