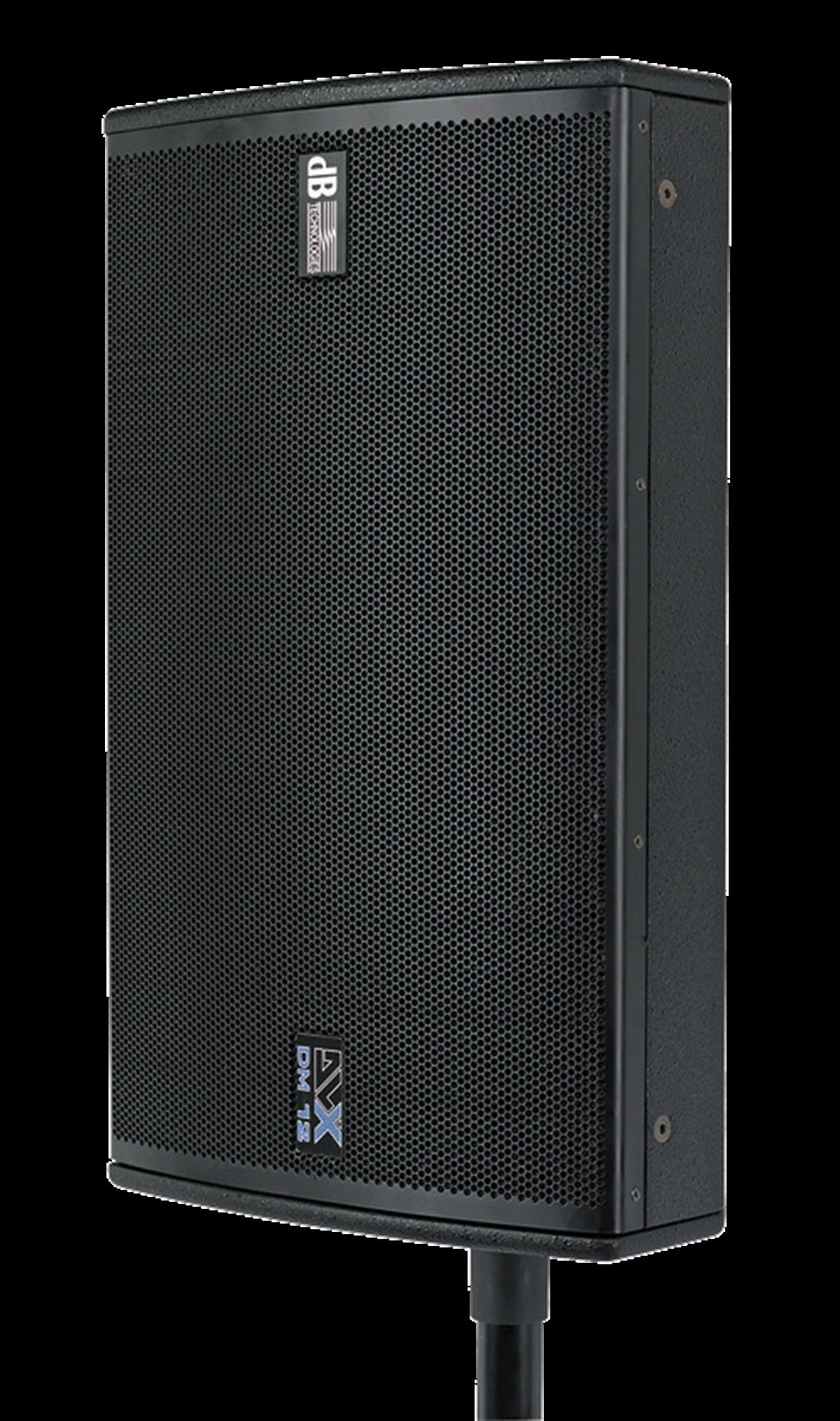

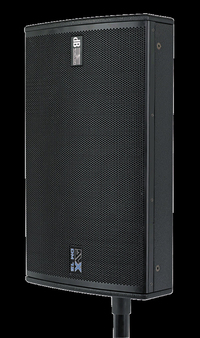

dBTechnologies DVX DM12 12'' 1500W Aktif Monitör Tipi Hoparlör (DVX DM12)

TEKNİK ÖZELLİKLER

Speaker Type  2-Way Active Stage Monitor

ACOUSTICAL DATA

Frequency Response [-10dB] 55 - 20.000 Hz

Frequency Response [+/- 3dB]          68 - 19.000 Hz

Max SPL        131 dB

HF       1.4 "

Type HF         Neodymium Compression Driver

Voice Coil HF            Titanium 2.5 "

Directivity      40x90 °

Horn    CD Horn Aluminium

Rotatable Horn           YES

LF       12 "

Type LF          Neodymium

Voice Coil LF 3 "

AMPLIFIER

Amp Technology        Digipro® G2

Amp Class      Class D

Power RMS    750 W

Peak Power     1500 W

Cooling           Convection

PROCESSOR

Controller       DSP 24 Bit/48 kHz

System Presets           Flat, Monitor

Limiter            RMS, Peak. Thermal, Multiband

Crossover Frequency MF-HF            1320 Hz

Slope MF-HF 24 dB/Octave

MECHANICS

Housing          Multiplex birch plywood

Housing Design          Low Profile Multifunctional

Angles Up      35, 55 °

Dimension WxHxD   660 mm.305 mm.378 mm

Weight            17.5 kg
