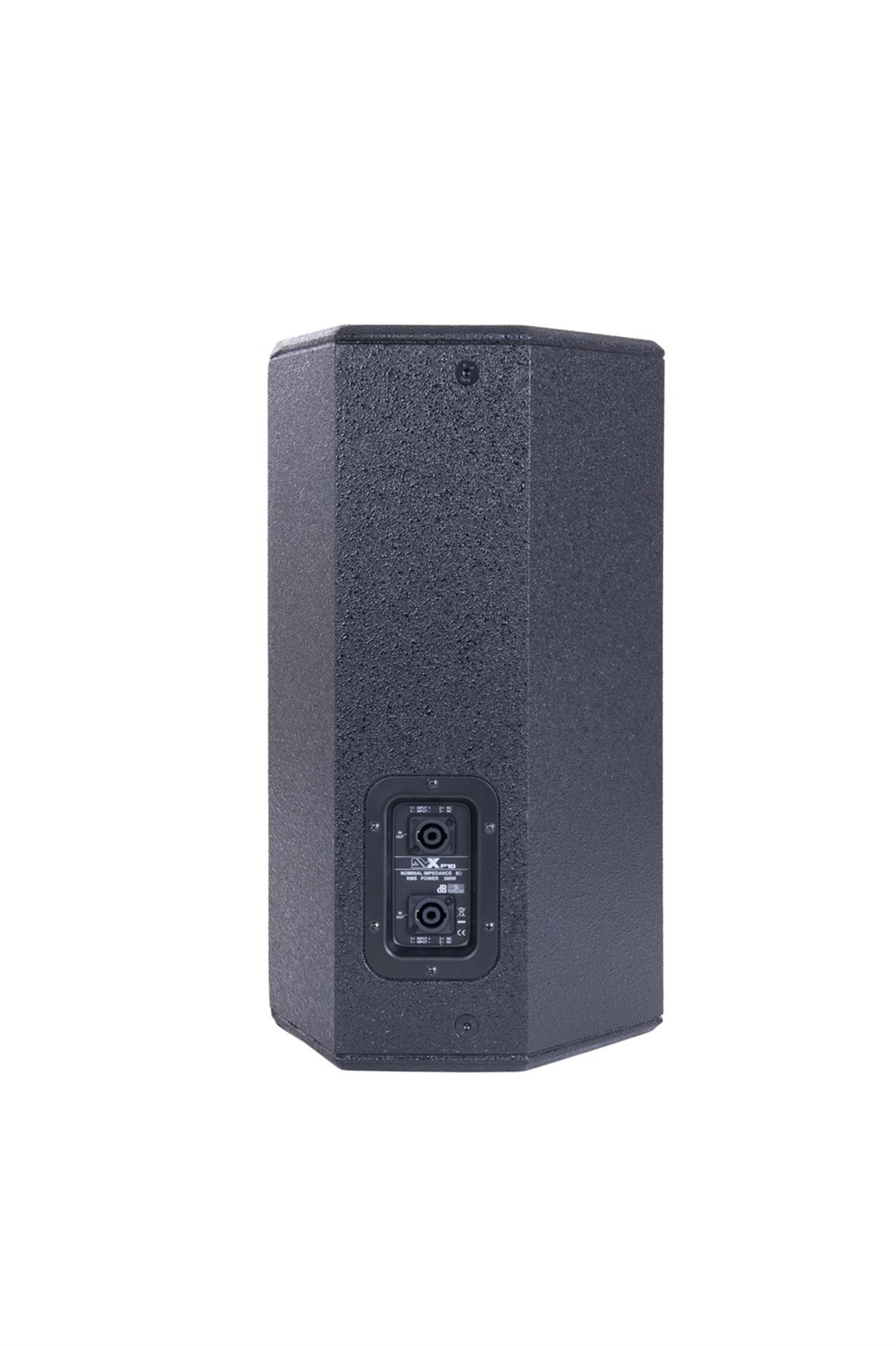

dBTechnologies DVX P10 10-inch 1200 Watt Pasif Kabin Hoparlör (DVX P10)

TEKNİK ÖZELLİKLER

Hopalör Tipi: 2-Yollu Pasif Hoparlör

Nominal Power Rating:         300 W/RMS

Program Power Rating:         600 W

Impedance:     8 Ohms

Sensitivity 1W@1m: 96 dB

Frekans Aralığı[+/- 3dB]:     90 - 19.000 Hz

Max SPL:       127 dB

HF:      1"

Voice Coil HF:          1.5 “

Driver Protection:      PTC

Directivity:     90x70 °

Horn:  CD Horn Aluminium

Rotatable Horn:         YES

Crossover Frequency (passive):        1800 Hz

LF:      10 "

Voice Coil LF:           2 "

Girişler

Sinyal Giriş :  1x Speakon (Pin 1+=+) (Pin 1-=-)

Sinyal Çıkışı: 1x Speakon (Pin 1+=+) (Pin 1-=-)

Housing:         Multiplex birch plywood

Boyutları WxHxD      290 mm.510 mm.310 mm.

Ağırlık 12.5kg.
