Teknik Özellikleri

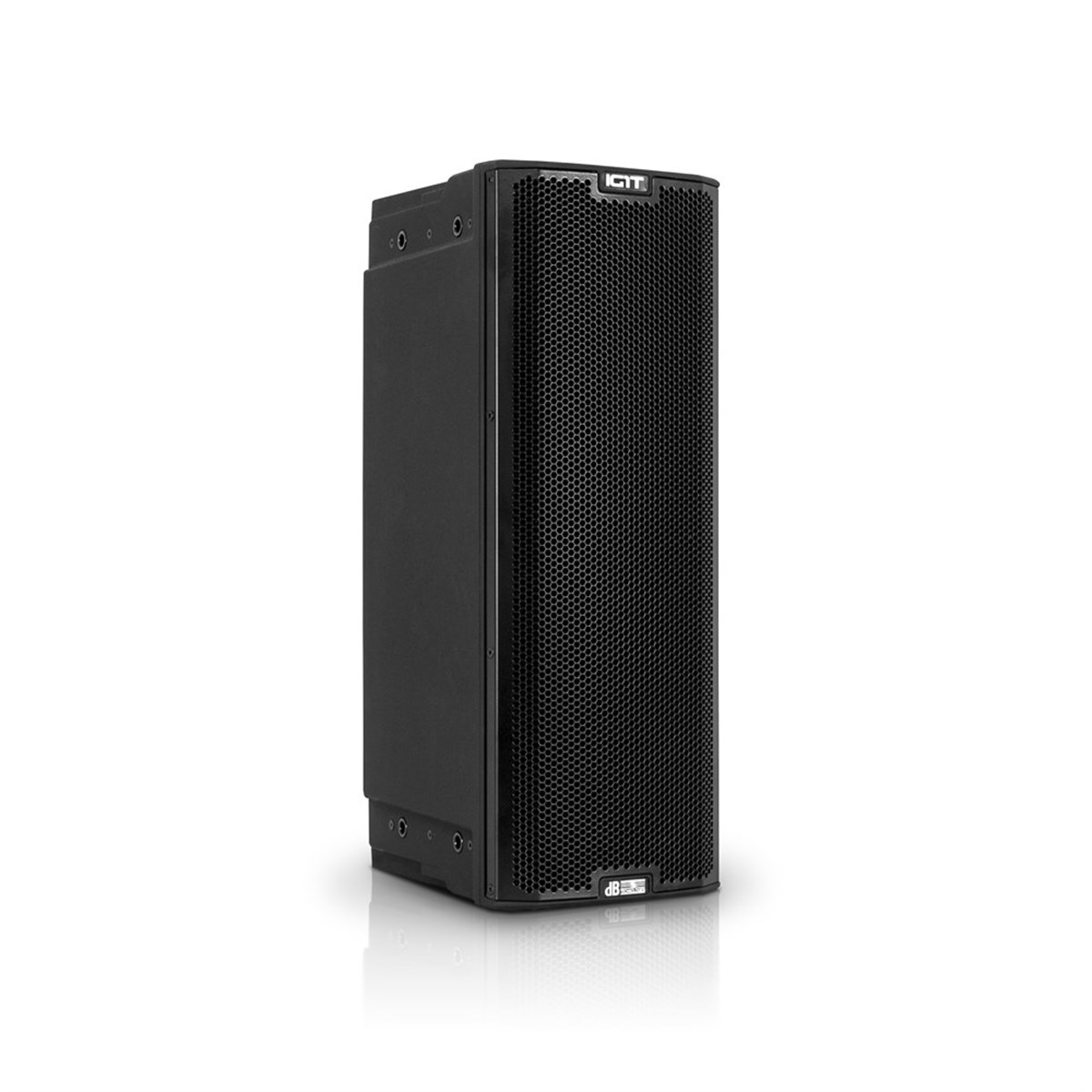

2 Aktif Aktif Hoparlör
Frequency Response [-10dB] 85 - 20.000 Hz
Frequency Response [-6dB] 92 - 19.200 Hz
Max SPL 128 dB
HF 1"
HF Voice Coil 1.4"
Directivity (HxV) 100 x 80° (+15°/- 65°)
HF Type Neodymium compression driver
Horn Vertical asymmetric
Crossover Frequency 2100 Hz
LF 2x6.5”
LF Voice Coil 1.5"
LF Type Neodymium
Amplifier Amp Technology
Digipro® G3
Amp Class Class-D
Peak Power 800 W
RMS Power 400 W
User Interface OLED display + rotative knob w/switch
Self-rotating display
Yes
Positioning
EPD (Element Position Detection)
Display Mirroring
Processor
Controller
DSP 56 bit
AD/DA Converter
24bit/48kHz
System Presets
Factory presets + User defined
Limiter
Dual Active Peak, RMS, Thermal
DSP Processing
FIR Linear Phase
Input
Signal Input
1 x Combo IN (XLR + Jack 6.3mm)
Signal Out
1 x XLR link OUT
USB connector
Yes - mini USB
Mechanics
Housing
Polypropylene PP reinforced
Grille
FULL /Invisible screws
Flyable bYes
Handles
1x on top / 1x on bottom
Pole Mount
Width 195 mm (7.68 in)
Height 536 mm (21.10 in)
Depth 271 mm (10.67 in)
Weight 10.6Kg (23.37 lbs.)
