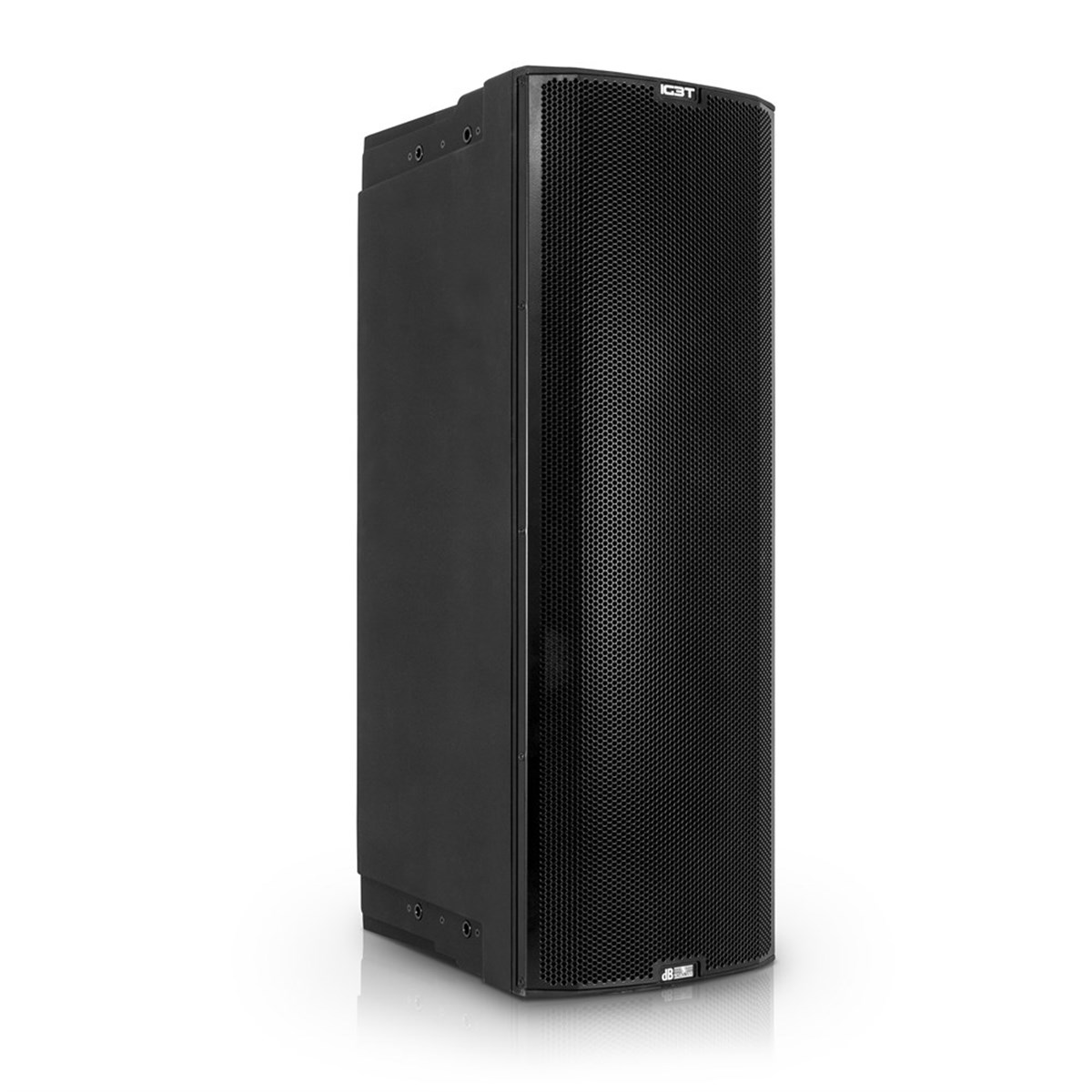

dBTechnologies INGENIA IG3T 2x10 inch 1800 Watt Aktif Kabin (INGENIA IG3T)

Teknik Özellikleri

2 Aktif  Aktif Hoparlör





Frequency Response [-10dB]

53 - 20.000 Hz





Frequency Response [-6dB]

57- 19.200 Hz





Max SPL

132 dB





HF

1.4"





HF Voice Coil

3''





Directivity (HxV)

110 x 90° (+20°/- 70°)





HF Type

Neodymium compression driver





Horn

Vertical asymmetric





Crossover Frequency

1100 Hz





LF

2x10”





LF Voice Coil

2.5"





LF Type

Neodymium







Amplifier



Amp Technology

Digipro® G3





Amp Class

Class-D





Peak Power

1800 W





RMS Power

900 W





User Interface

OLED display + rotative knob w/switch





Self-rotating display

Yes





Positioning

EPD (Element Position Detection)





Display Mirroring

Yes







Processor



Controller

DSP 56 bit





AD/DA Converter

24bit/48kHz





System Presets

Factory presets + User defined





Limiter

Dual Active Peak, RMS, Thermal





DSP Processing

FIR Linear Phase







Input



Signal Input

1 x Combo IN (XLR + Jack 6.3mm)





Signal Out

1 x XLR link OUT





USB connector

Yes - mini USB







Mechanics



Housing

Polypropylene PP reinforced





Grille

FULL /Invisible screws





Flyable

Yes





Handles

1x on top / 1x on bottom





Pole Mount

Yes





Width

280 mm (11.02 in)





Height

806 mm (31.73 in)





Depth

393 mm (15.47 in)





Weight

20.8 Kg (45.86 lbs.)
