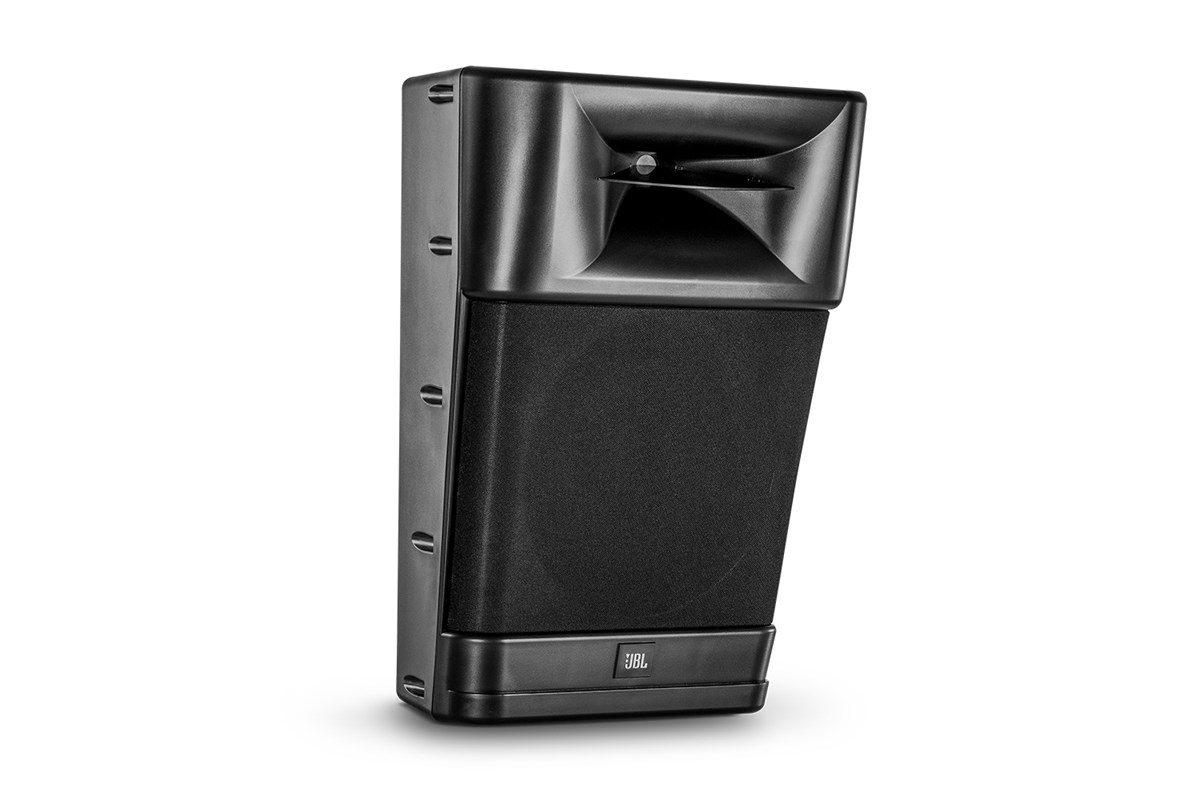

JBL 9300D 10'' 2 Yollu Sinema Surround
JBL 9300D 10'' 2 Yollu Sinema Surround
JBL 9300D 10'' 2 Yollu Sinema Surround
JBL 9300D 10'' 2 Yollu Sinema Surround
JBL 9300D 10'' 2 Yollu Sinema Surround

JBL 9300D 10'' 2 Yollu Sinema Surround (9300D)

Marka : JBL
Fiyat : $0.00  + KDV
KDV Dahil : ₺0,00
:
Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz

ÖZELLİKLER



  • 250 Watt Power handling capability
  • Wave Shaping Vane distributes an acoustic energy wave-front sculpted to the room
  • High Frequency Horn features JBL Image Control Technology for precise pattern control
  • Three separate horizintal mounting planes at 15 degree angles for specific positioning to improve coverage
  • Input terminals on top of cabinet for easy access
  • Lightweight, Rigid molded enclosure
  • Uniform asymmetric 60 degree vertical coverage and 110 degree horizontal coverage



Frequency Response (±3 dB) 60Hz – 20kHz
Frequency Response (-10dB) 50Hz – 25kHz
Coverage Pattern 110º × 60º asymmetric >2kHz
Power Rating 30v @ 100hrs, 40v @ 2hrs, IEC/Pink 250W continuous pink noise
Sensitivity 96dB
Maximum SPL (1m) 120dB continuous, 126dB peak
Nominal Impedance 8Ω
Minimum Impedance 7Ω @ 200Hz
Crossover Frequencies 2800Hz
Low Frequency 610H
High Frequency 2414H-1
System Polarity Woofer (IEC), HF (JBL)
System Protection Network only
System Input Type Banana
Enclosure Volume 1700 sq in. (unoccupied)
Dimensions (H x W x D) 22” x 16” x 11”
Net Weight (each) 21 lbs (9.53 kg)
Horizontal Coverage Angle (-6dB) 110º asymmetric >2kHz
Vertical Coverage Angle (-6dB) 60º asymmetric >2kHz
Power Handling (2Hr AES Rating) 250 W
Downward Firing Angle 15° for enclosure face
