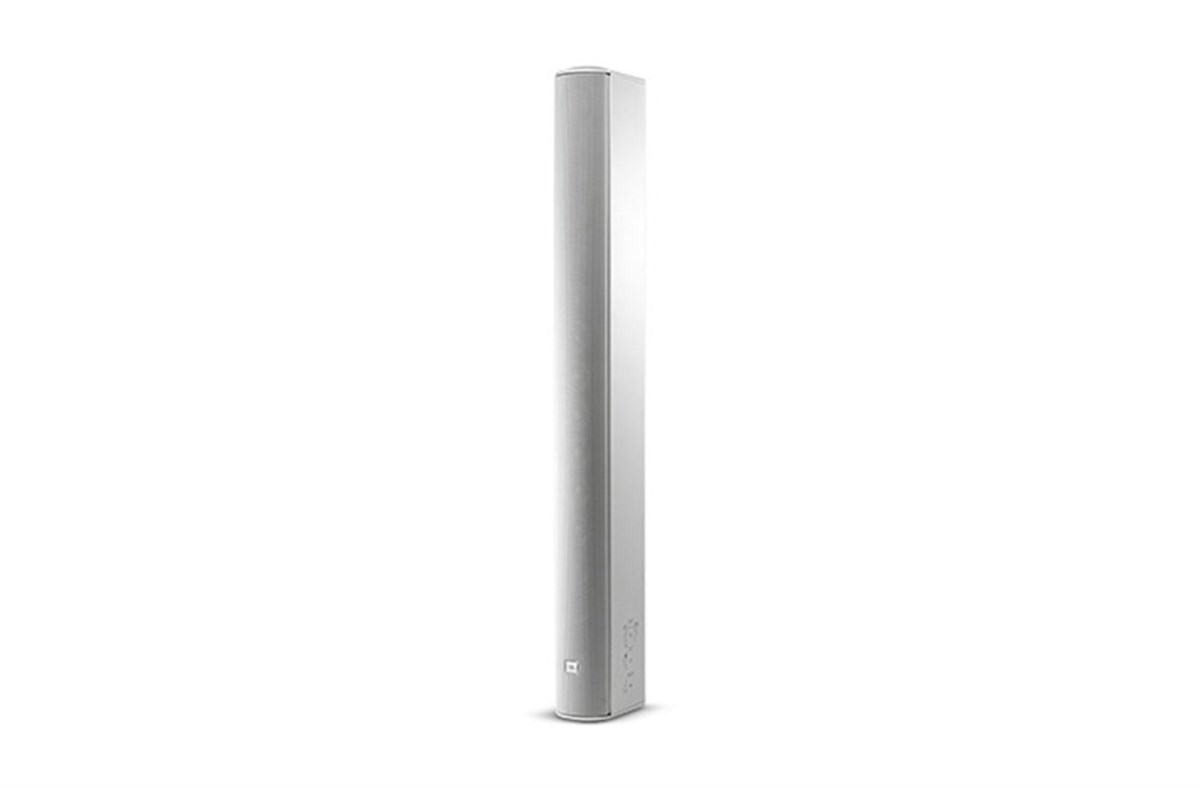

JBL CBT 100LA-1-WH 16x2'' Vertical Array Column Speaker

JBL CBT 100LA-1-WH 16x2'' Vertical Array Column Speaker (CBT 100LA-1-WH)

Marka : JBL
Fiyat : $0.00  + KDV
KDV Dahil : ₺0,00

JBL CBT 100LA-1-WH



8 ohm  70V / 100V



120W, 60W, 30W (15W & 70V)



Fiyat İçin:

Ankara :0312 309 52 26

Kayseri:0352 222 00 08





:

ÖZELLİKLER







Components Sixteen 50 mm (2 in) Full-Range
Frequency Range (-10 dB) 80 Hz – 20 kHz
Vertical Coverage VerticalNarrow Mode: 15° (2 kHz - 16 kHz) (±10°)Broad Mode: 40° (1 kHz - 16 kHz) (±10°)Horizontal 150° (ave, 1 kHz – 4 kHz, ±20°)
Sensitivity (2.83V@ 1m) Narrow: (speech mode) 96 dB (2 kHz - 14 kHz )(music mode) 93 dB (300 Hz - 18 kHz)Broad: (speech mode) 93 dB (2 kHz - 14 kHz)(music mode) 90 dB (300 Hz - 18 kHz)
Nominal Impedance 8 ohms (in Thru mode)
Power Capacity (8 ohm setting) 325 W (1300W peak), 2 hrs200 W (800W peak), 100 hrs
Max SPL Narrow: (speech mode) 121 dB cont ave (127 peak)(music mode) 118 dB cont ave (124 peak)Broad: (speech mode) 118 dB cont ave (124 peak)(music mode) 115 dB cont ave (121 peak)
70V/100V Transformer Taps 120W, 60W, 30W (15W at 70V only), and 8Ω thru, via switch
Enclosure Fiberglass reinforced ABS cabinet, painted aluminum grille
Outdoor Capability IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.
Colors Black or White (-WH)
Insert Points 18 M6 insert points on back panel.
Mounting Included swivel (pan)/tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points. Eighteen threaded mounting points located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount® 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.
Dimensions (H x W x D) 1000 x 98.5 x 153(39.4 in x 3.8 in x 6.0 in)
Net Weight 7.2 kg (15.8 lb)
Included Accessories Swivel (pan) / tilt wall bracket
Optional Accessories MTC-PC2 terminal panel coverMTC-CBT-FM1 flush-mount low-profile wall-mount bracket MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm speaker stand
