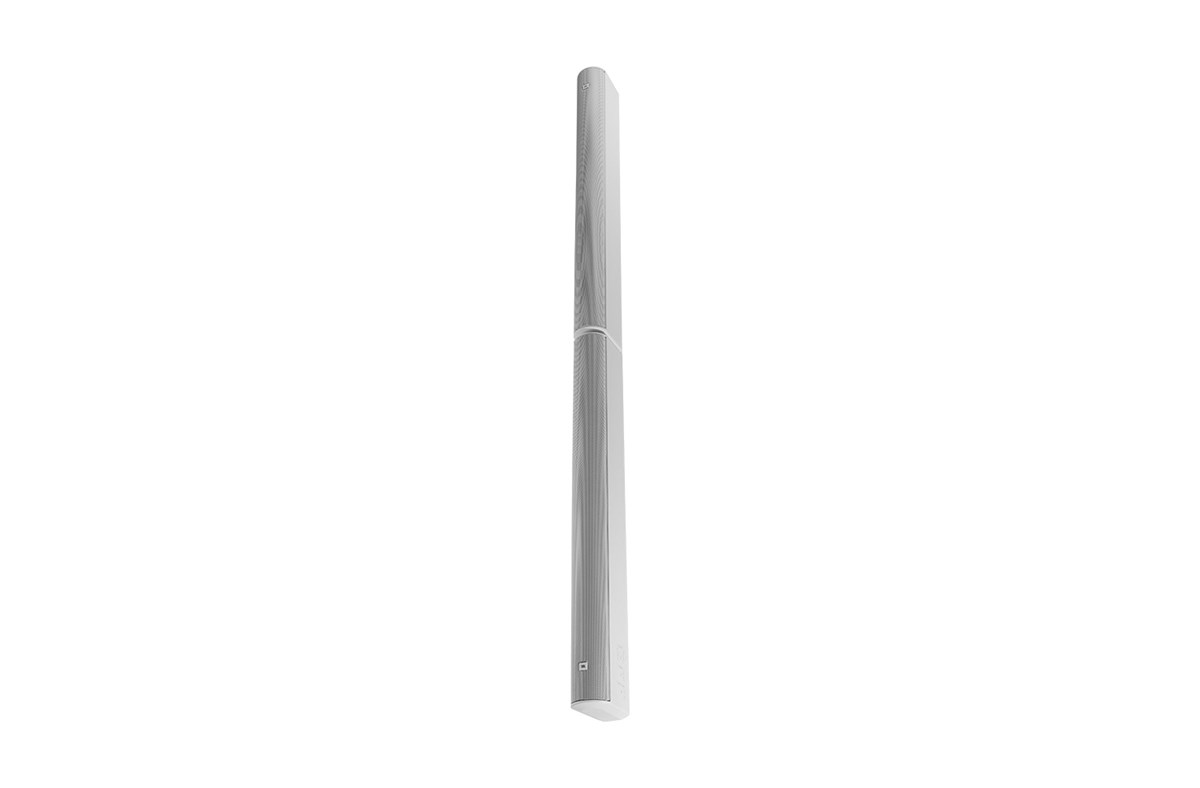

| Drivers |
Thirty-two 50 mm (2 in) Full-Range Drivers |
| Frequency Response (-10dB) |
80 Hz – 20 kHz |
| Frequency Response (±3 dB) |
130 Hz – 18 kHz (narrow coverage, music mode setting) |
| Coverage - Vertical |
Narrow Mode:15° (500 Hz – 16 kHz, +15°/-2° [<60° down to 220 Hz, <90° down to 140 Hz])Broad Mode: 30° (400 Hz – 12 kHz, +15°/-8°, [<60° down to 220 Hz, < 90° down to 140 Hz])Asymmetrical Progressive-Gradient Mode: (Top speaker module set at “Narrow” and bottom speaker module at “Broad”, for “J-type” coverage, sending higher sound levels toward the far area of the listening space): 22.°(+7° from aiming axis up; -15° from aiming axis down, 300 Hz – 12 kHz, +15°/-8°, [<60° down to 220 Hz, <90° down to 140 Hz]) |
| Coverage - Horizontal |
150° (ave, 1 kHz – 4 kHz, ±20°) |
| Sensitivity - Narrow |
(speech mode): 95 dB (2 kHz – 5 kHz)(music mode): 92 dB (150 Hz – 18 kHz) |
| Sensitivity - Broad |
(speech mode): 93 dB (2 kHz – 5 kHz)(music mode): 90 dB (150 Hz– 18 kHz) |
| Sensitivity - Asymmetrical Progressive-Gradient Mode (on-axis) |
(speech mode): 94 dB (2 kHz – 5 kHz)(music mode): 91 dB (150 Hz – 18 kHz) |
| Impedance |
8Ω per half (top and bottom) for 4 ohms total (in thru mode).Min-Z for system = 2.9Ω. |
| Hookup |
Ensure identical polarity of hookup – for proper functioning, the two loudspeaker modules (top and bottom) must be hooked up in same polarity. Parallel hookup at the two sets of back panel input terminals is recommended. |
| Power Rating |
650W (2600W peak), 2 hrs400W (1600W peak) 100 hrs |
| Max SPL - Narrow |
(speech mode): 123 dB cont ave (129 dB peak)(music mode): 120 dB cont ave (126 dB peak) |
| Max SPL - Broad |
(speech mode): 121 dB cont ave (127 dB peak)(music mode): 118 dB cont ave (124 dB peak) |
| Max SPL - Asymmetrical Progressive-Gradient Mode (on-axis) |
(speech mode): 122 dB cont ave (128 dB peak) (music mode): 119 dB cont ave (125 dB peak) |
| 70V/100V Transformer Type |
Set individually per speaker module (top and bottom): 120W, 60W, 30W (15W at 70V only), and direct 8Ω, via switch. Total (with top & bottom set to same): 240W, 120W, 60W (30W at 70V only) and direct 4Ω. Max. insertion loss less than 1 dB at any tap. |
| Enclosure |
Fiberglass reinforced ABS cabinet, painted aluminum grille |
| Connectors |
Two (one for top half and one for bottom half), screw-down terminal strip, zinc-plated copper base, nickel plated metal screws/washers. Accepts up to 9 mm outside 4 mm inside open lug (#6, #8 or #10 lug), or bare wire (up to 12 AWC/2.5 mm2) |
| Outdoor Capability |
IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant. |
| Color |
Black or White (-WH) |
| Configuration |
Two pieces (top and bottom half), each 100 cm tall, connected together via Coupler Plate. Top/bottom orientation of each piece must be observed. |
| Insert Points |
28 M6 insert points on back panel (36 total with 8 center points being utilized by the Coupler Plate). |
| Mounting |
Included swivel (pan) / tilt wall bracket (must be mounted to threaded points on Coupler Plate) provides continuously variable ±80° left-right swivel aiming (at up to ±5° up/down tilt), continuously adjustable ±10° up/down tilt, as well as 5° fixed increment tilt angles to ±10°. Twenty-eight available threaded mounting points (M6 diameter x M1 thread pitch x 17 mm deep) located on back panel. Threaded mounting points can be utilized for suspension. Compatible with OmniMount 30.0 brackets |
| Dimensions (H x W x D) |
2000 x 98.5 x 153 mm (78.8 x 3.8 x 6.0 in) |
| Net Weight |
14.6 kg (33 lb) |
| Included Accessories |
Swivel (pan) / tilt wall bracket, Coupler plate |
| Optional Accessories |
MTC-PC2 terminal panel cover MTC-CBT-FM1 flush-mount low-profile wall-mount bracket (2 pieces required) MTC-CBT-SMB1 stand-mount bracket for use with 35 mm speaker stands (heavy duty stand required) |
