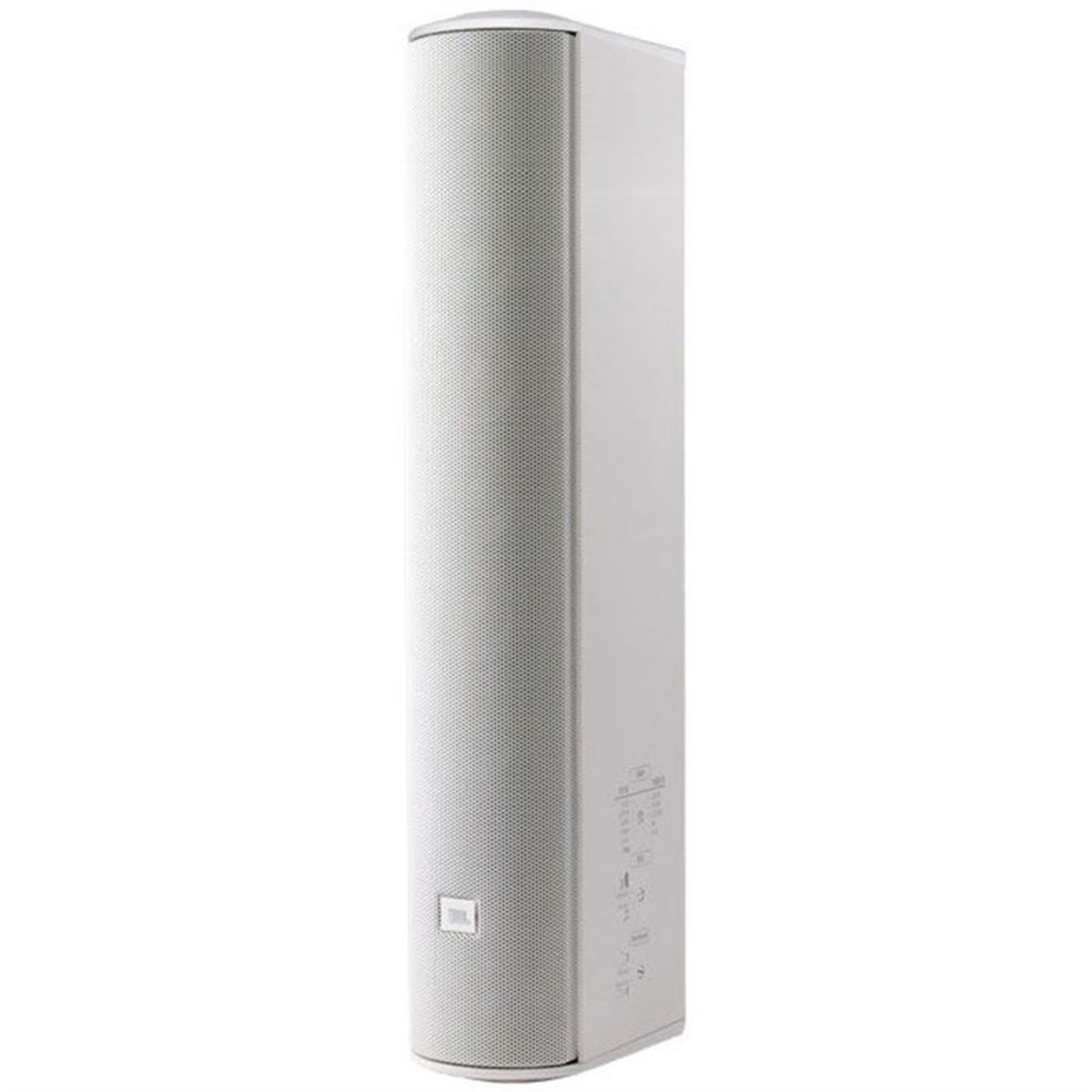

JBL CBT 50LA-1-WH 2'' x8 60W Line Array Column Hoparlör

JBL CBT 50LA-1-WH 2'' x8 60W Line Array Column Hoparlör (CBT 50LA-1-WH)

Marka : JBL
Fiyat : $0.00  + KDV
KDV Dahil : ₺0,00

JBL CBT 50LA-1-WH



8 ohm  70V / 100V



60W, 30W, 15W, (7.5W & 70V)



Fiyat İçin:

Ankara :0312 309 52 26

Kayseri:0352 222 00 08





:

ÖZELLİKLER









Components Eight 50 mm(2 in) Full-Range
Frequency Range (-10 dB) 80 Hz – 20 kHz
Coverage Pattern Vertical 20° (1.5 kHz - 16 kHz, ±10°)Horizontal 150° (ave, 1 kHz – 4 kHz, ±20°)
Sensitivity (2.83V@ 1m) 93 dB (speech mode, 2 kHz - 14 kHz)89 dB (music mode, 300 Hz - 18 kHz)
Nominal Impedance 8 ohms
Power Capacity (8 ohm setting) 150W (600W peak), 2 hrs100 W (400W peak), 100 hrs
Max SPL Speech mode: 115 dB cont ave (121 peak)Music mode: 111 dB cont ave (117 peak)
70V/100V Transformer Taps 60W, 30W, 15W, (7.5W at 70V only), and 8Ω thru, via switch
Enclosure Fiberglass reinforced ABS cabinet, painted aluminum grille
Outdoor Capability IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.
Colors Black or White (-WH)
Insert Points Ten M6 insert points on back panel.
Mounting Included swivel (pan) / tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points within the range. Ten threaded mounting points located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount® 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.
Dimensions (H x W x D) 528 x 99 x 153 mm(20.8 x 3.9 x 6.0 in)
Net Weight 4.1 kg (9.0 lb)
Included Accessories Swivel (pan) / tilt wall bracket
Optional Accessories MTC-PC2 terminal panel coverMTC-CBT-FM1 flush-mount low-profile wall-mount bracket MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm speaker stand
