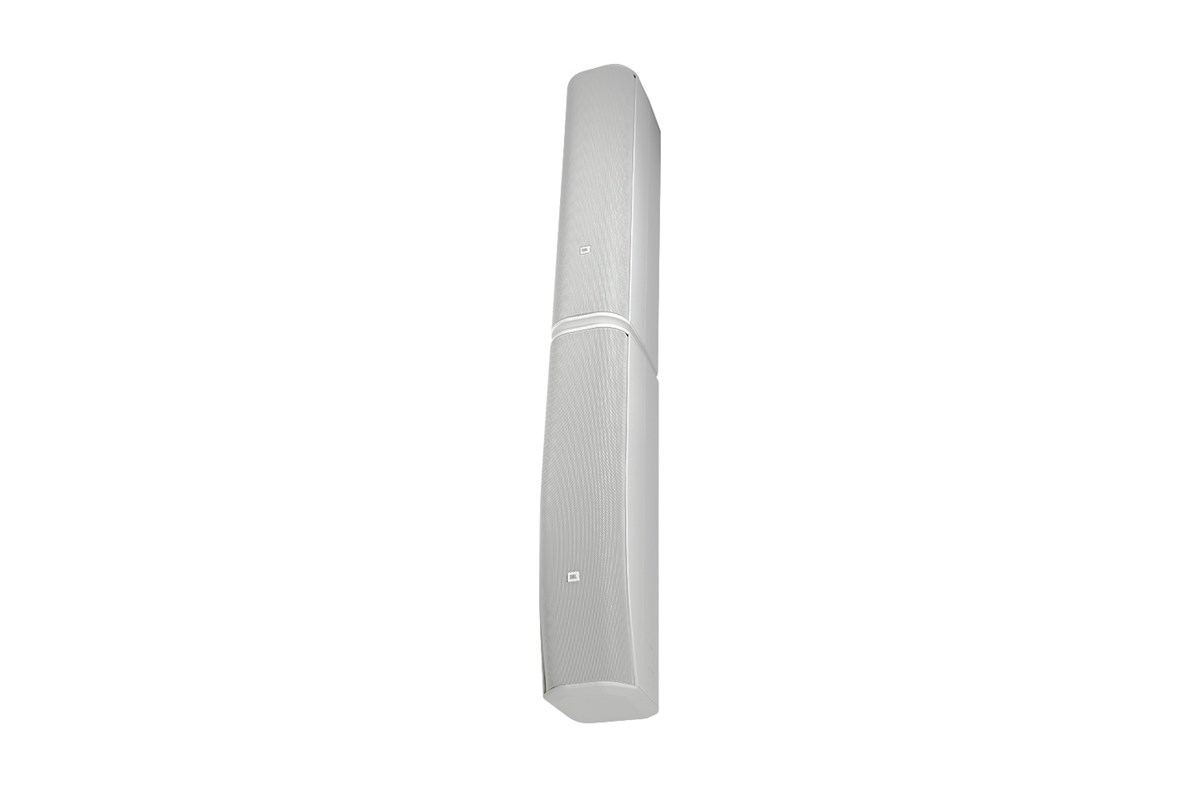

JBL CBT 70JE-1-WH Line Array Column Hoparlör
JBL CBT 70JE-1-WH Line Array Column Hoparlör
JBL CBT 70JE-1-WH Line Array Column Hoparlör

JBL CBT 70JE-1-WH Line Array Column Hoparlör (CBT 70JE-1-WH)

Marka : JBL
Fiyat : $0.00  + KDV
KDV Dahil : ₺0,00
:
Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz

ÖZELLİKLER



Drivers Eight (8) 130 mm (5 in) LF drivers Sixteen (16) 25 mm (1 in) HF drivers
Frequency Response (-10dB) 45 Hz – 20 kHz
Coverage Angle Vertical (selectable via switch) Narrow Mode: 25° (2 kHz – 16 kHz) (±10°) Broad Mode: 45° (350 Hz – 16 kHz) (±10°) Horizontal 150° (500 Hz – 18 kHz, ±20°)
Sensitivity Narrow: (speech mode) 98 dB @ 2.83V, 95 dB @ 2.0V (150 Hz – 8 kHz) (music mode) 94 dB @ 2.83V, 91 dB @ 2.0V (80 Hz – 18 kHz) Broad: (speech mode) 97 dB @ 2.83V, 94 dB @ 2.0V (100 – 8 kHz) (music mode) 93 dB @ 2.83V, 90 dB @ 2.0V (70 Hz – 18 kHz)
Impedance 4 ohms
Power Rating 1000 W (4000 W peak), 2 hrs 700 W (2800 W peak), 100 hrs
Maximum SPL (1m) Narrow: (speech mode) 125 dB cont ave (131 peak) (music mode) 121 dB cont ave (127 peak) Broad: (speech mode) 124 dB cont ave (130 peak) (music mode) 120 dB cont ave (126 peak)
Low Frequency Drivers 8 pcs, 130 mm (5 in) drivers, dual magnet neodymium, 38 mm (1.5 in) voice coil, damped blended textile surround, coated diaphragm for moisture, UV and salt resistance, shielded.
High Frequency Drivers 16 pcs, 25 mm (1 in) drivers, dual magnet neodymium, encased magnet and coated diaphragm for moisture, UV and salt resistance, shielded.
Enclosure Fiberglass-reinforced ABS cabinet, painted aluminum grille.
Outdoor Capability IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.
Color Black or white (-WH)
Insert Points 20 insert points total, 8 utilized for coupler plate, M6 (16 mm deep) on back panel
Mounting Coupler plate joins the CBT70J-1 and 70JE-1 end-to-end. Threaded points on coupler plate accepts OmniMount™ 60.0 Series and 120.0 Series compatible wall-mount brackets, as well as points for the swivel (pan)/tilt wall bracket that is included with CBT 70J-1. Twelve (12) additional M6 mounting points accept forged shoulder steel eyebolts or swivel clips for suspension.
Dimensions (H x W x D) 1388 x 170 x 237 mm(54.8 x 6.7 x 9.3 in)
Net Weight 20.4 kg (45 lb)
Included Accessories Coupler plate (included with 70JE-1) Swivel (pan) / tilt wall bracket (included with 70J-1)
Optional Accessories MTC-PC2 terminal panel cover MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm heavy duty speaker stand (must be heavy-duty stand for stability with this array) MTC-CBT-FM2 flush-mount low-profile wall-mount bracket
Components - 70JE-1 Four (4) 130 mm (5 in) LF drivers
Frequency Range (-10 dB) - 70JE-1 45 Hz – 700 Hz
Sensitivity (2.83V @ 1m) - 70JE-1 90 dB full space, 96 dB half-space (65 Hz - 300 Hz)
Nominal Impedance - 70JE-1 8 ohms
Power Capacity - 70JE-1 500 W (2000 W peak), 2 hrs 350 W (1400 W peak), 100 hrs
Max SPL - 70JE-1 117 dB
Net Weight - 70JE-1 8.2 kg (18 lb)
