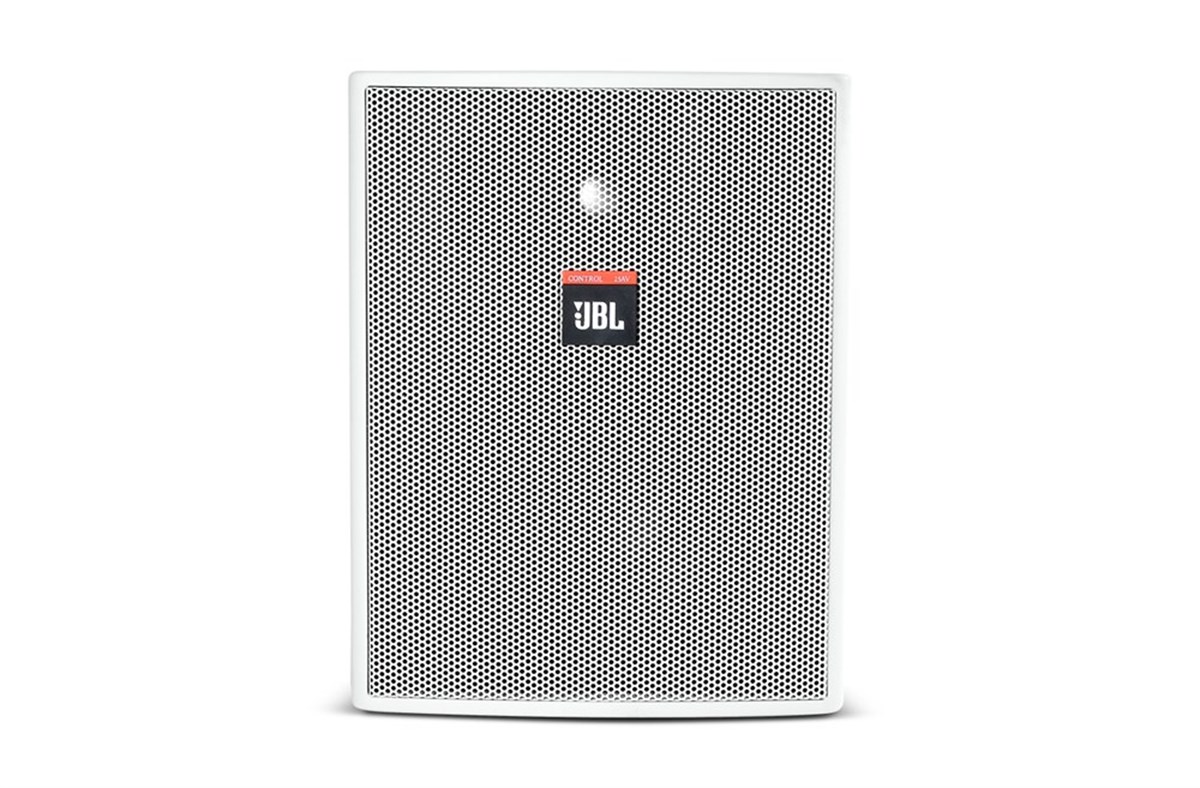

JBL CONTROL 25AV-WH JBL CONTROL 25AV-WH Kabin Hoparlör

JBL CONTROL 25AV-WH JBL CONTROL 25AV-WH Kabin Hoparlör (CONTROL 25AV-WH)

Marka : JBL
Fiyat : $0.00  + KDV
KDV Dahil : ₺0,00

Orjinal Ürün - Hızlı ve Ücretsiz Kargo - Türkiye Distribitör Garantisi

:
Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz

ÖZELLİKLER

Frequency Range 70 Hz - 23 kHz (-10 dB)
Power Capacity 200 W Continuous Program Power; 100 W Continuous Pink Noise
Transformer Taps 70V: 60 W, 30 W, 15 W, 7.5 W 100V: 60 W, 30 W, 15 W
Nominal Sensitivity 87 dB SPL, 1 W @ 1 m (3.3 ft)
Midrange (±1.5 dB, typical) 130 Hz - 14 kHz
Nominal Coverage 100° x 100°
Maximum SPL @ 1m 113 dB continuous peak pink noise 107 dB continuous average pink noise 103 dB continuous average music or speech
Directivity Factor (Q) 4.9 dB, averaged 500 Hz to 4 kHz
Directivity Index (DI) 6.9 dB, averaged 500 Hz to 4 kHz
Nominal Impedance 8 ohms
Minimum Impedance 6.7 ohms at 230 Hz
Crossover Network Second Order Low Pass, Second Order High Pass, Complex Optimization for Maximally Flat Response
Low Frequency 130 mm (5.25 in) polypropylene-coated paper with WeatherEdge surround, 25 mm (1 in) voicecoil on kapton former
High-Frequency 20 mm (.75 in) titanium coated PEI
Enclosure Material High Impact polystyrene
Grille Painted stainless steel, black or white to match cabinet, paintable
Overload Protection Full-range power limiting to protect network and transducers. Internal fuse to protect during exceptional overload condition
Environmental Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IEC 529 IP-X4 splashproof rating
Terminations Screw-down terminal strip, zinc-plated copper base, nickel plated metal screws/washers, accepts up to 9 mm outside 4 mm inside open lug (#6, #8 or #10), plus bare wire. (up to 12 AWG)
Safety Agency Rating Transformer is listed per UL1876
Colors Black or white (-WH)
Rotation Against wall on InvisiBall Base: 37° vertical 44° horizontal On bracket: 44° all directions
Dimensions (H x W x D) 236 x 186 x 159 mm (9.3 x 7.4 x 6.3 in)
Net Weight (ea) 4.0 kg (9 lb)
Shipping Weight (ea) 9.0 kg (20 lb) per pair
