JBL CSS-15C-VA

JBL CSS-15C-VA (CSS-15C-VA)

Marka : JBL
İndirim Oranı : %50 İndirim
KDV Dahil : $222.00
İndirimli : $92.50  + KDV
KDV Dahil : ₺3.898,89

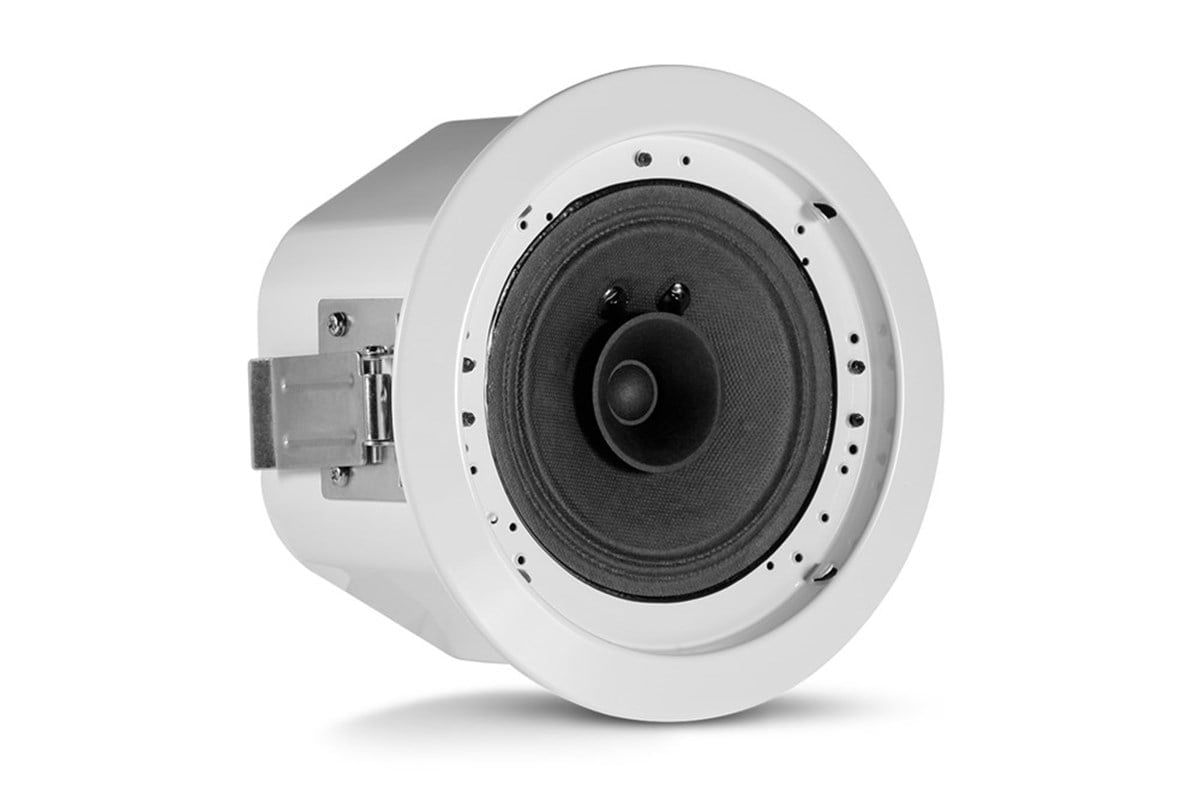

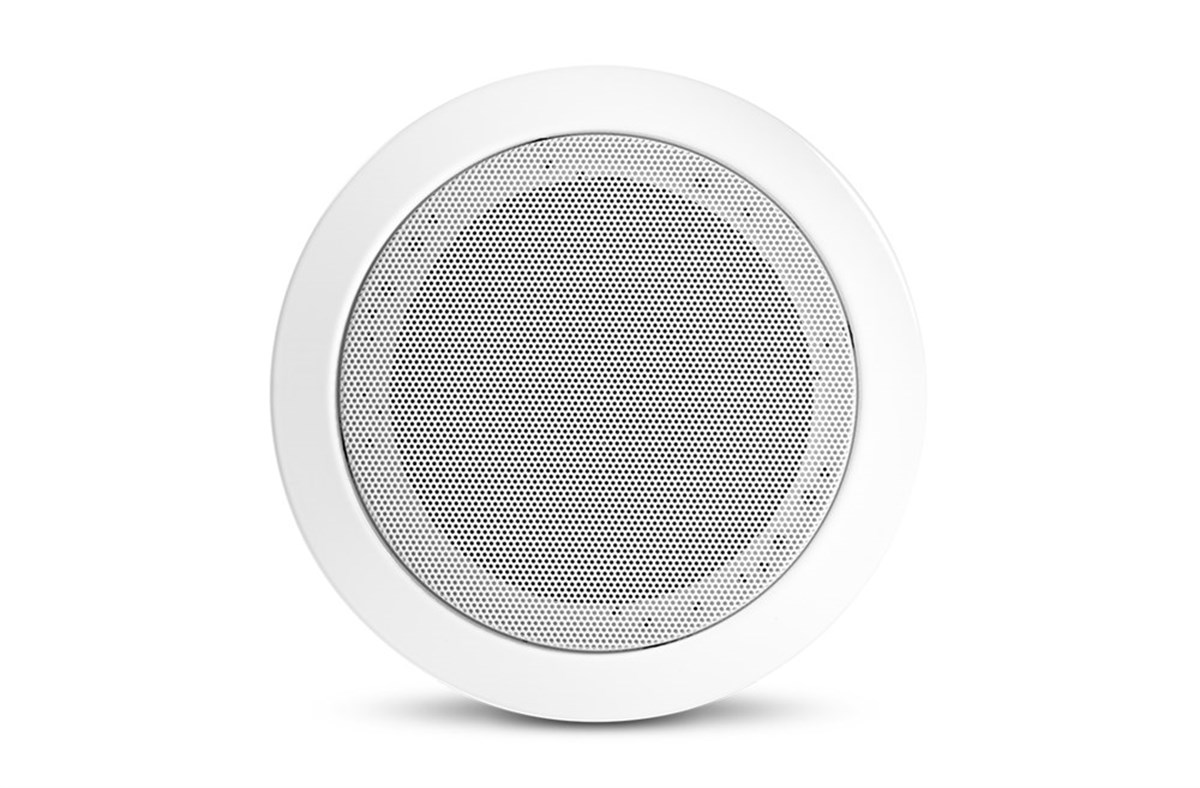

JBL CSS-15C-VA  Tavan Hoparlörü

EN54 Sertifikalı 8 ohm

6W, 3W ve 1.5W



:
Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz

ÖZELLİKLER

Frequency Range (-10 dB) 180 Hz – 20 kHz
Power Capacity 6 Watts (at 6W tap)
Rated Pink Noise Power 6 Watts (at 6W tap)
Rated Pink Noise Voltage 100V distributed speaker line voltage
Nominal Sensitivity 92 dB (6W tap, ave 300 Hz – 15 kHz)
EN54 Sensitivity (@4 m) 80 dB (at 4m, 6W tap, per EN54-24 spectrum and measurement conditions)
Coverage Pattern 120° conical (2 kHz)
Coverage Angles(by Frequency) Conical (Vertical & Horizontal) 4000 Hz: 100° 2000 Hz: 120° 1000 Hz: 180° 500 Hz: 180°
Reference Axis for Specifications The reference axis for specifications is directly on-axis vertically and horizontally, directly below the speaker as speaker is installed in the horizontal ceiling plane.
Rated Maximum SPL 100 dB @ 1m (3.3 ft) average SPL (6W tap @ 100V)
EN54 Max SPL (@4m) 88 dB (at 4m, 6W tap, per EN54-24 spectrum and measurement conditions)
Nominal Impedance 6W @ 100V tap: 1667 Ω3W @ 100V tap: 3333 Ω1.5W @ 100V tap: 6667 Ω
Transformer Taps 6W, 3W, 1.5W at 100V. Selected by sliding the included fast-on connector onto the proper tab on the transformer.
Fuse Thermal fuse, open temperature 150 degrees C; 2A@250VAC; UL, CUL, VDE, PSE and CCC approved.
Driver 127 mm (5 in) dual-cone driver, paper cone
Connections Input +, Input -, Earth Ground (connected to metal speaker baffle). Ceramic block with brass inserts (3.2 mm / 0.12 in. opening) accommodates 2.5 sq mm / 12 AWC wire.
Safety Agency EN54-24 certified (Certificate No. 1488-CPR-0524/W), Compliant with BS5839/8; IP-21 per IEC529/60529; ROHS, CE compliant. In accordance with IEC60849/EN60849 systems.
Ambient Temp Range -10°C to +55°C
Installation Fire dome installation via two metal clamps, affixed via hex head clamp screws from inside of fire dome. Speaker installation via two torsion springs into hooks on inside of fire dome. See installation instructions.
Wire Entrance Two diaphragm-type sealed-grommet entrance points on backcan in 20 mm (0.82 in) diameter cutouts that can be field fitted with installersupplied 19 mm (3/4-inch) mount gland nut for additional seal or strain relief.
Materials Metal fire dome, metal speaker baffle, metal grille.
Dimensions 162 mm (6.4 in) fire dome diameter (outside of clamps);183 mm (7.2 in) speaker baffle diameter;116 mm (4.6 in) depth from bottom of ceiling surface to back of fire dome;129 mm (5.1 in) total depth.
Ceiling Cutout Size 165 mm (6.5 in) diameter hole ±2 mm (0.1 in).
Ceiling Thickness Range 0.5 mm (0.02 in) to 23 mm (0.9 in) ceiling thickness
Net Weight 1.5 Kg (3.3 lb) per speaker
Shipping Weight 1.9 Kg (4.2 lb) per speaker
