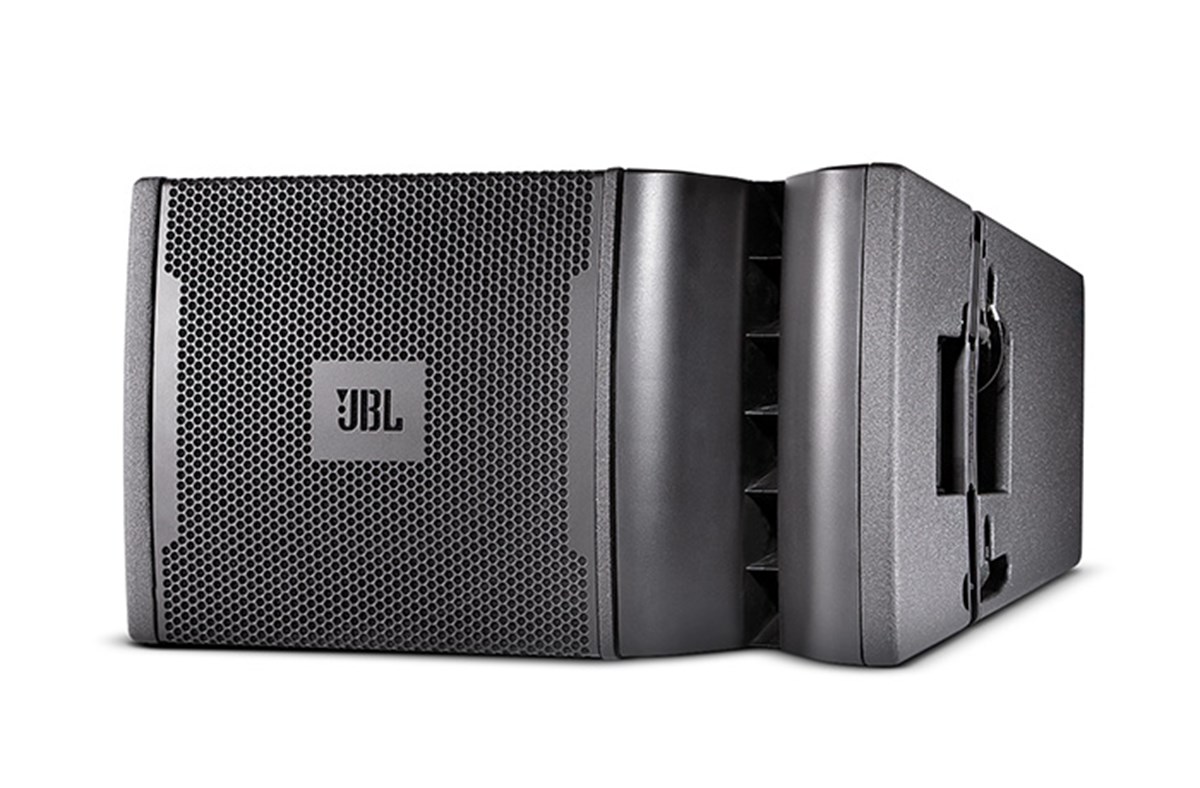

JBL VRX932LAP 12'' Aktif Line Array Hoparlör (VRX932LAP)

Marka : JBL
Fiyat : $0.00  + KDV
KDV Dahil : ₺0,00
:

ÖZELLİKLER



Power Rating 1750 Watts Peak875 Watts Continuous
Frequency Response (-10dB) 57 Hz - 20 kHz
Dimensions (H x W x D) 349 mm x 597 mm x 444 mm(13.75 in x 23.5 in x 17.5 in)
Frequency Response 75 Hz - 20 kHz (+/-3db)
Maximum SPL (1m) 136 dB SPL
Coverage Pattern 100 x 15 nominal
DPC-2 Output as (Continuous IED shaped pink noise into rated load impedance) LF: 750 Watts, HF: 125 Watts
DPC-2 Output Section LF: Dual-Bridged Technology™, Class D
Inputs XLR with loop through
LF Driver 1 x JBL 2262FF 305 mm (12 in) neodymium magnet
HF Driver 3 x JBL 2408J, 38 mm (1.5 in)
User Controls Input Attenuator (0-16 dB)
Signal Processings DSP based, resident in Input Module
AC Power Operating Range 90-132 VAC or 216-264 VAC, 50/60 Hz
AC Input Connector Neutrik PowerCon (NAC 3MPA)
AC Loop Through Connector Neutrik PowerCon (NAC 3MPB)
AC Current Requirements 6A per system at 120V, 3A per system at 240V
Enclosure 25/15 mm, 11-ply birch plywood
Suspension / Mounting Optional VRX-AF line array frame kit, 10mm forged eyebolts or internal dual angle 36mm pole mount cup for pole or tripod mounting
Finish Black DuraFlex™ finish
Grille Powder coated, black, 16-gauge perforated steel with with acoustically transparent foam
Net Weight (each) 24 kg (52 lb)
Optional Accessories VRX-AF: Suspension array frame
Outputs 1 x XLR
System Type Constant Curvature 12" Two-Way Powered Line Array System
Nominal Impedance NA - amplification is integrated
