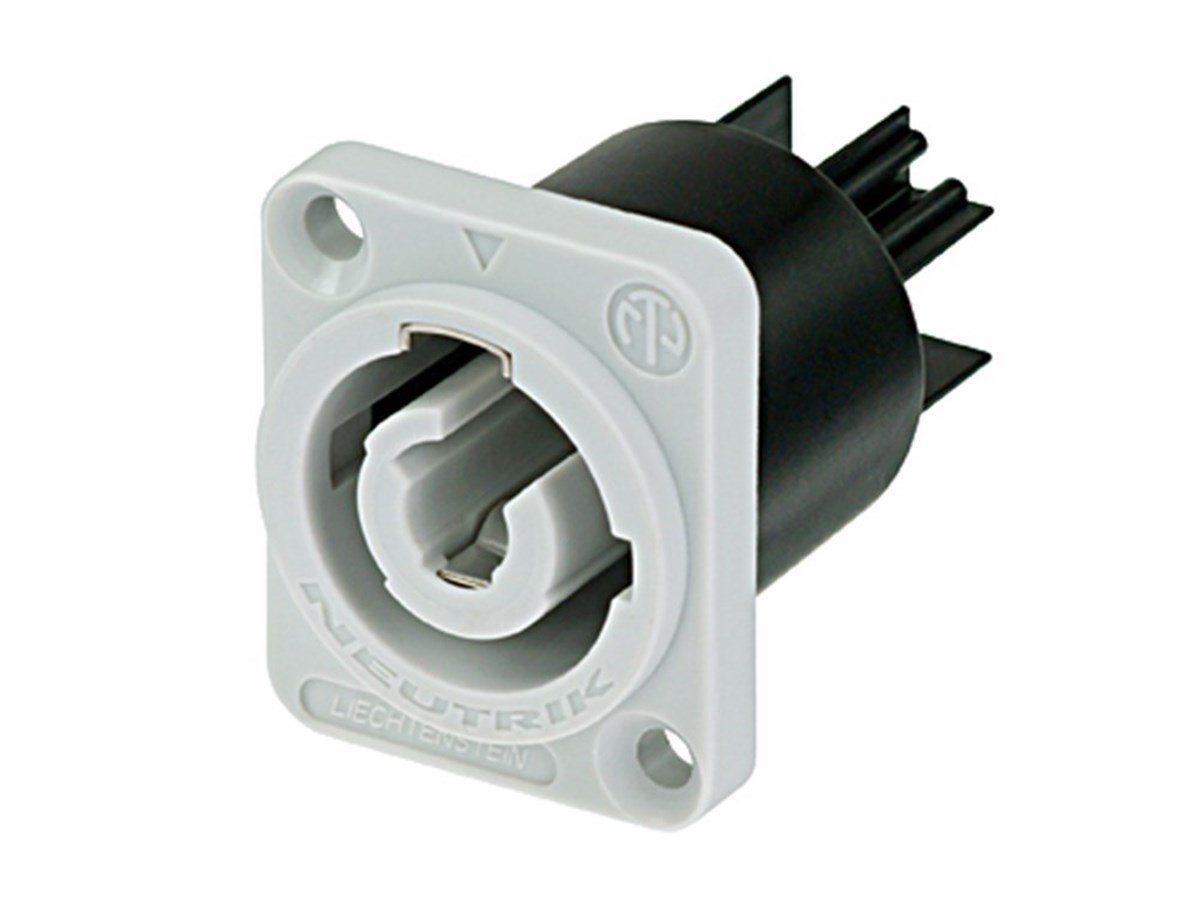

NAC3MPB-1 POWERCON TİPİ KONNEKTÖRLER (NAC3MPB-1)

Technical Information





Product
Title	NAC3MPB-1
Gender	male

Electrical
Contact resistance	≤ 3 mΩ
Dielectric strength	4 kVdc / 2.8 kVac
Insulation resistance	> 0.1 GΩ (after damp heat test IEC 68-2-30)
Number of electronical contacts	2 + PE
Rated current per contact	20 A rms
Rated voltage	250 V ac

Mechanical
Lifetime	> 1000 mating cycles
Wiresize
Locking device	Quick Lock
Mounting direction	Front mounting
Chassis shape	D

Material
Contact plating	2 µm Ag
Locking element	Steel Ck67
Shell	Polyamide (PA 6.6 30 % GR)
Contacts	Bronze (CuNi1Si0.2)

Environmental
Flammability	UL 94 V-0
Temperature range	-30 °C to +80 °C
