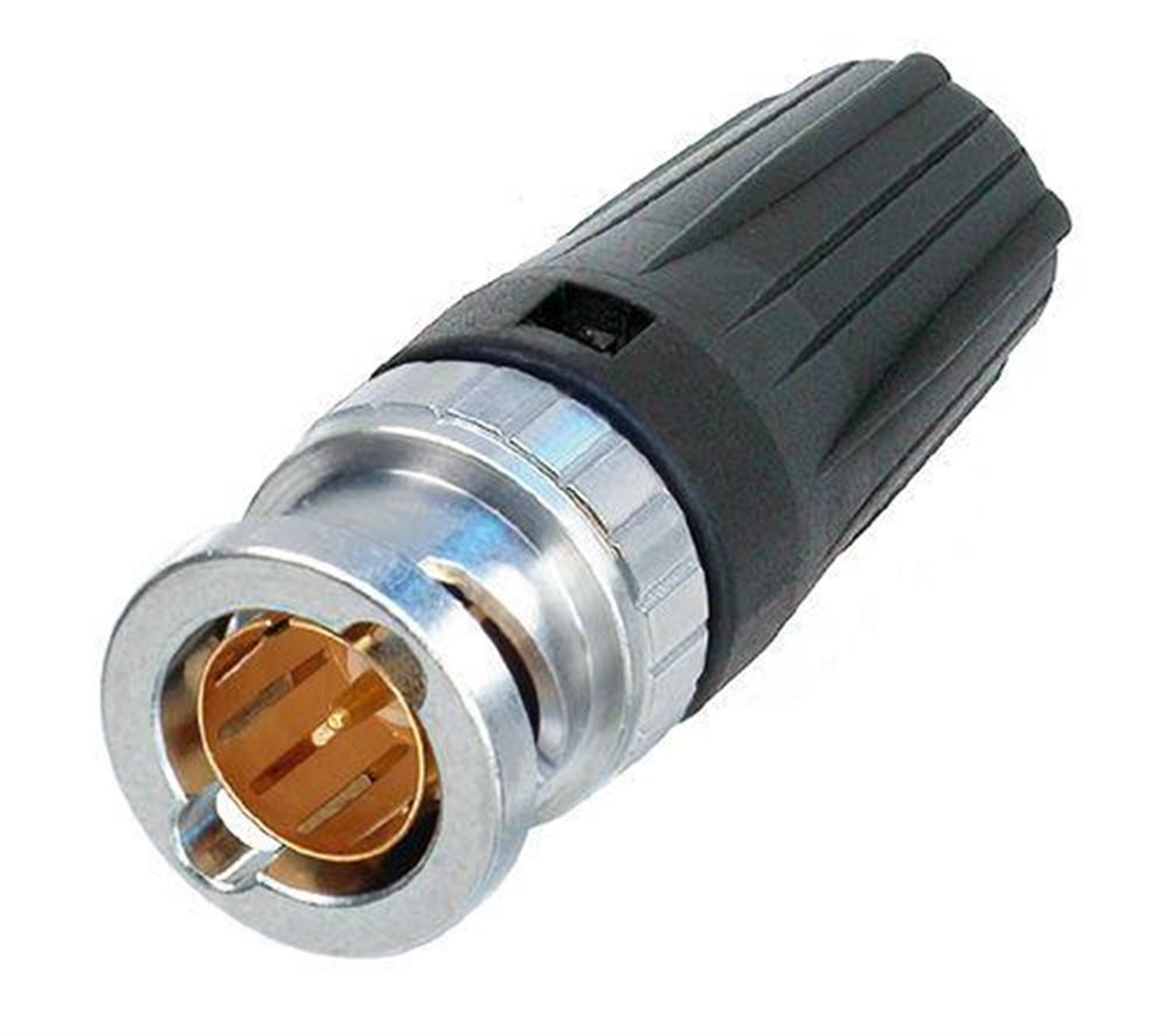

NEUTRİK NBNC75BZV14 BNC TİPİ KONNEKTÖRLER

NEUTRİK NBNC75BZV14 BNC TİPİ KONNEKTÖRLER (NBNC75BZV14)

Marka : NEUTRİK
İndirim Oranı : %45 İndirim
KDV Dahil : $9.60
İndirimli : $4.40  + KDV
KDV Dahil : ₺185,46

Neutrik The rearTWIST HD BNC  NBNC75BZV14 BNC TİPİ KONNEKTÖRLER





:
Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz

Technical Information





Product
Title NBNC75BZV14
Connection Type BNC 75 Ω
Gender male
Electrical
Contact resistance ≤ 3 mΩ (inner)
Contact resistance ≤ 2 mΩ (outer)
Dielectric strength 1.5 kVdc
Insulation resistance > 5 GΩ
Rated voltage <50 V
VSWR ≤1.050/>32 dB up to 1 GHz
≤1.065/>30 dB up to 2 GHz
≤1.100/>26 dB up to 3 Ghz
Mechanical
Cable O.D. < 8.0 mm
Cable retention > 30 N (center)
Crimp size 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2) or 1,75 Hex crimp acc. IEC 60803 (die desi
Insertion force < 25 N
Lifetime > 1000 mating cycles
Wiresize
Locking device Bayonett
Cable anchoring Jacket crimping
Material
Contacts Brass (CuZn35Pb2) , 0.2 µm AuCo (Center contact)
Insert PTFE
Shell Brass (CuZn39Pb3)
Shell plating Optalloy®
Environmental
Temperature range -30 °C to +85 °C
Contact crimpability Complies with IEC 60803 and IEC 60352-2
