NEUTRİK NC3FXX 3 Pin Dişi XLR Konnektör

NEUTRİK NC3FXX 3 Pin Dişi XLR Konnektör (NC3FXX)

Marka : NEUTRİK
İndirim Oranı : %45 İndirim
KDV Dahil : $10.80
İndirimli : $4.95  + KDV
KDV Dahil : ₺208,64

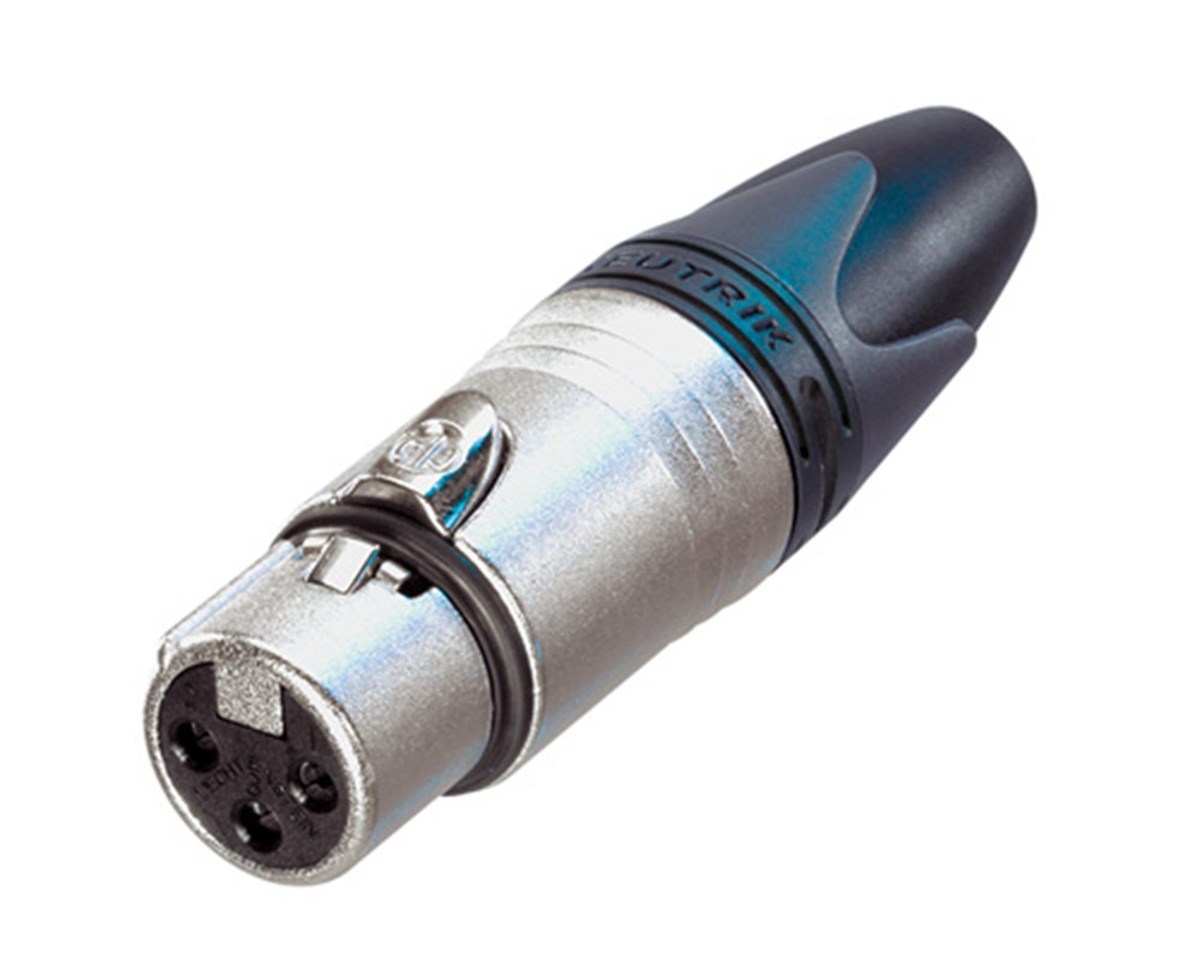

Neutrik NC3FXX - 3 Pin Dişi XLR Konnektör

:
Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz
Product
Title NC3FXX
Connection Type XLR
Gender female
Electrical
Capacitance between contacts ≤ 4 pF
Contact resistance ≤ 3 mΩ
Dielectric strength 1,5 kVdc
Insulation resistance > 10 GΩ (initial)
Rated current per contact 16 A
Rated voltage < 50 V
Mechanical
Cable O.D. 3.5 - 8.0 mm
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiresize max. 2.5 mm²
Wiresize max. 14 AWG
Locking device Latch lock
Material
Boot Polyurethan
Contact plating 2 µm Ag
Contacts Bronze (CuSn8)
Insert Polyamide (PA 6.6 30 % GR)
Locking element Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Nickel
Strain relief Polyacetal (POM)
Environmental
Flammability UL 94 HB
Standard compliance IEC 61076-2-103
Protection class IP 40
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
