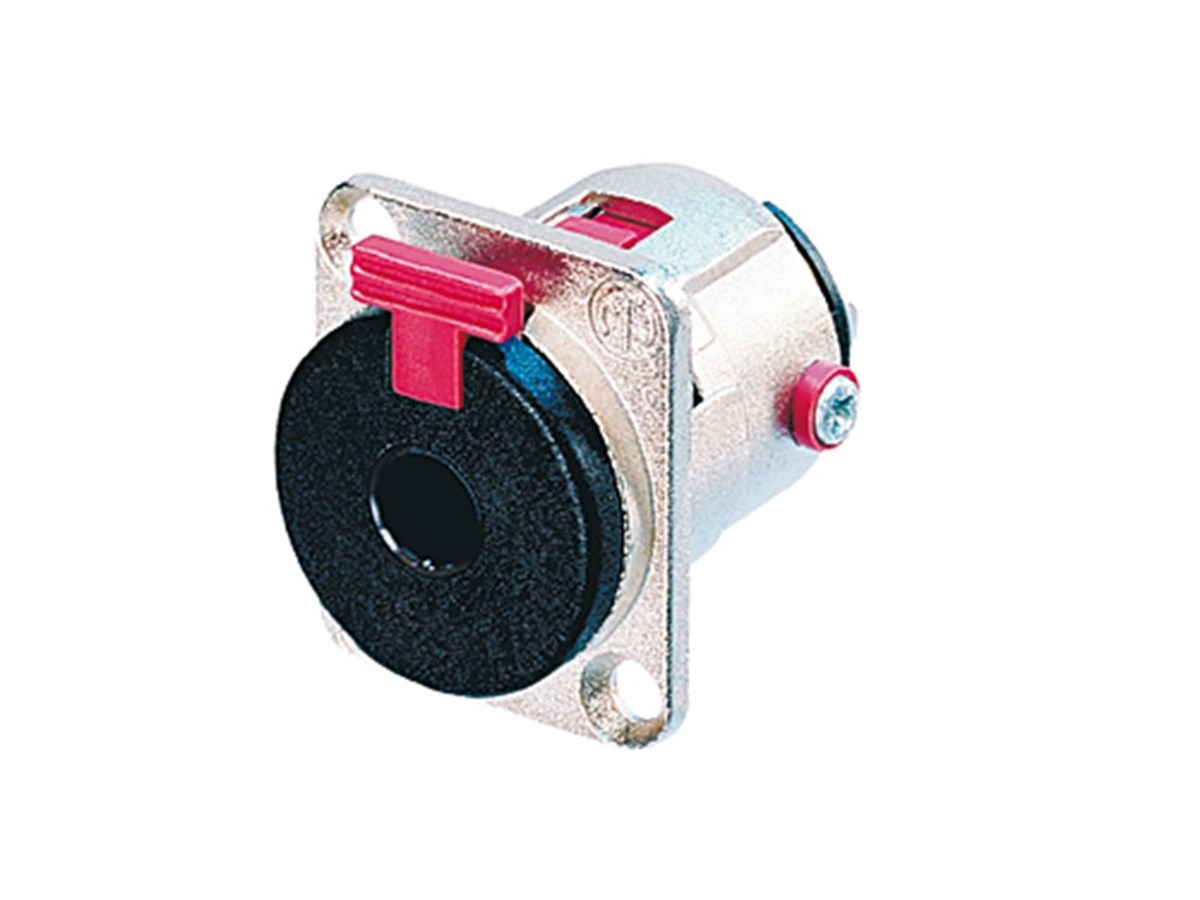

NEUTRİK NJ3FP6C JACK TİPİ KONNEKTÖRLER

NEUTRİK NJ3FP6C JACK TİPİ KONNEKTÖRLER (NJ3FP6C)

Marka : NEUTRİK
İndirim Oranı : %45 İndirim
KDV Dahil : $19.20
İndirimli : $8.80  + KDV
KDV Dahil : ₺370,92

Neutrik NJ3FP6C Şasi  Çivi Konnektör



:

Technical Information





Product



Title

NJ3FP6C

Connection Type

Jack

Gender

female

Electrical



Contact resistance

< 6 mΩ (initial)

Dielectric strength

1 kVdc

Insulation resistance

≥ 1 GΩ @ 500 V dc

Rated current per contact

10 A

Mechanical



Insertion force

< 30 N

Withdrawal force

< 20 N

Lifetime

> 10000 mating cycles

Locking force

> 80 N

Wiresize

1 mm²

Wiresize

18 AWG

Wiring

Solder contacts

Locking device

Latch lock

Mounting direction

Front mounting

Chassis shape

D

Material



Contact plating

2 µm Ag

Contacts

Brass (CuZn37) (Ground)

Insert

Polyamide (PA 6.6 30 % GR)

Shell

Zinc diecast (ZnAl4Cu1)

Shell plating

Nickel

Strain relief

Polyacetal (POM)

Environmental



Standard compliance

EIA RS 453, IEC 60603-11

Solderability

Complies with IEC 68-2-20

Temperature range

-25 °C to +70 °C
