NEUTRİK NL2FX SPEKON TİPİ KONNEKTÖRLER

NEUTRİK NL2FX SPEKON TİPİ KONNEKTÖRLER (NL2FX)

Marka : NEUTRİK
İndirim Oranı : %45 İndirim
KDV Dahil : $10.03
İndirimli : $4.68  + KDV
KDV Dahil : ₺193,77

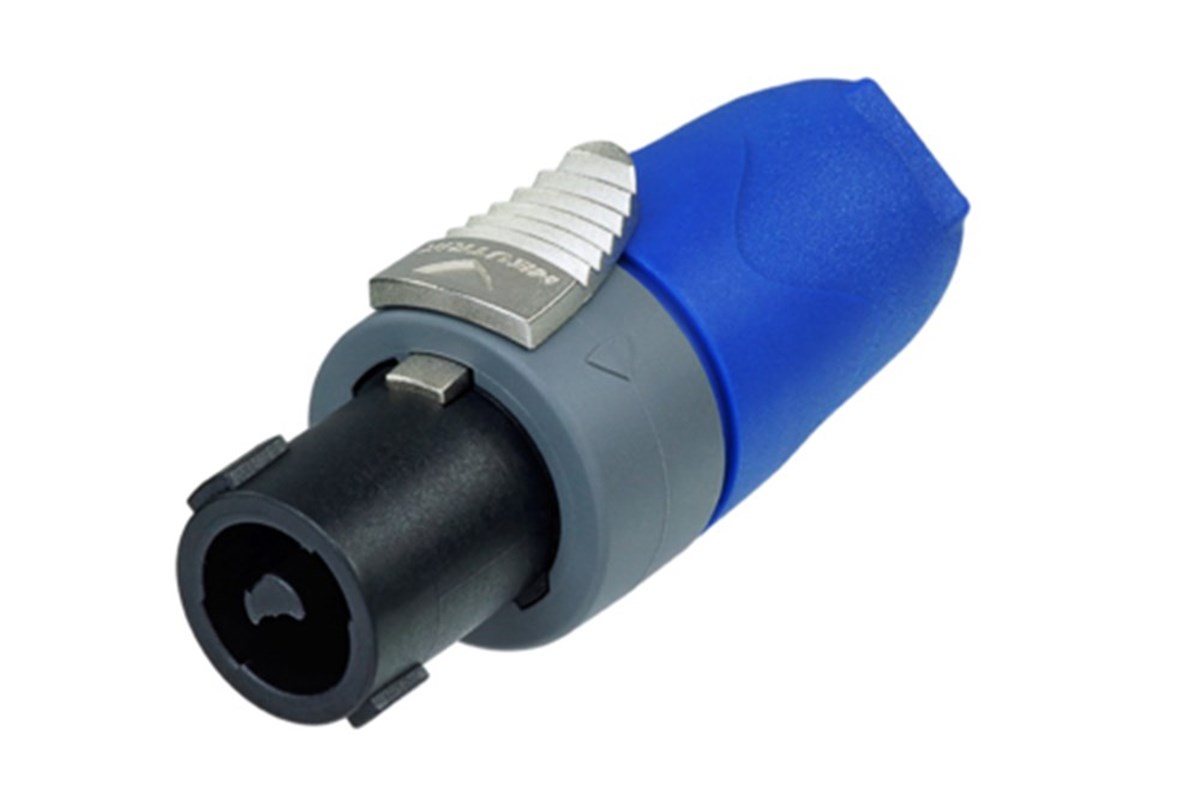

Neutrik NL2FX SPEKON TİPİ KONNEKTÖRLER

2 pole cable connector, chuck type strain relief



:
Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz

Technical Information





Product
Title NL2FX
Connection Type speakON
Gender female
Electrical
Contact resistance < 2 mΩ (after lifetime)
Dielectric strength 4 kVdc (peak)
Insulation resistance > 1 GΩ (after dampheat)
Rated current per contact 40 A rms continuous
Rated current per contact 50 A audiosignal, duty cycle 50 %
Rated voltage 250 V ac
Attention speakON is not to be used as an AC mains or power supply connector!
Mechanical
Cable O.D. 6 - 10 mm
Cable retention ≥ 220 N (subject to cable O.D. and material)
Lifetime > 5000 mating cycles
Wiresize 1.5 - 4 mm²
Wiresize 16 - 12 AWG
Wiring screw type terminals or soldering
Locking device Quick Lock (latch)
Material
Contact plating 4 µm Ag
Contacts Brass (CuZn39Pb3)
Insert PBTP 20 % GR
Locking element Zinc diecast (ZnAl4Cu1)
Shell PBTP 20 % GR
Strain relief Polyacetal (POM)
Environmental
Flammability UL 94 HB
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
