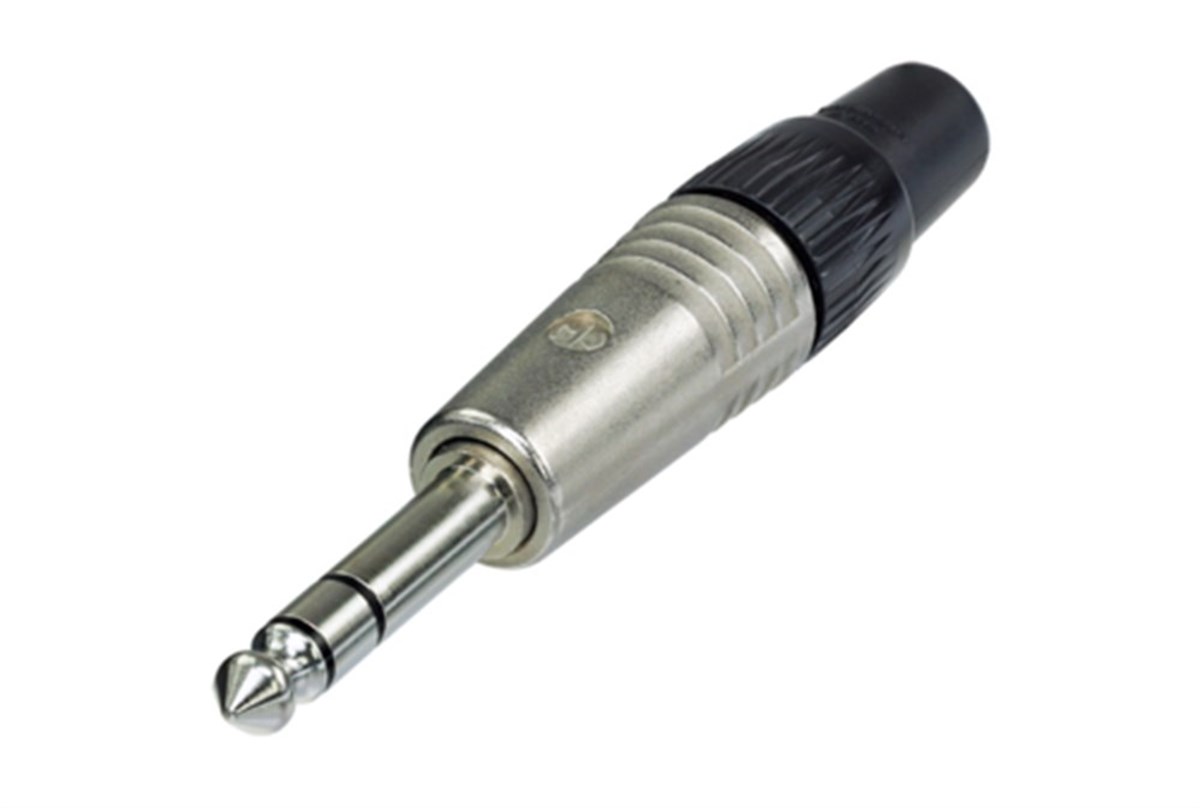

NEUTRİK NP3C JACK TİPİ KONNEKTÖRLER

NEUTRİK NP3C JACK TİPİ KONNEKTÖRLER (NP3C)

Marka : NEUTRİK
İndirim Oranı : %45 İndirim
KDV Dahil : $11.80
İndirimli : $5.50  + KDV
KDV Dahil : ₺228,45

Neutrik NP2C Stereo Çivi Konnektör



:

Technical Information





Product
Title NP3C
Connection Type Plug
Gender male
Electrical
Contact resistance depends on mating connector mΩ
Dielectric strength 1 kVdc
Insulation resistance > 2 GΩ (initial)
Rated current per contact depends on mating connector A
Rated voltage < 50 V
Mechanical
Cable O.D. 4 - 7 mm
Lifetime > 1000 mating cycles
Wiresize 1 mm²
Wiresize 18 AWG
Wiring Solder contacts
Material
Bushing Polyacetal (POM) + PU
Contact plating 2 µm Ni (Su)
Contacts Brass (CuZn39Pb3)
Insert Polyamide (PA 6.6 30 % GR)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Nickel
Strain relief Polyacetal (POM)
Environmental
Standard compliance IEC 60603-11 / EIA RS-453
Solderability Complies with IEC 68-2-20
Temperature range -20 °C to +65 °C
