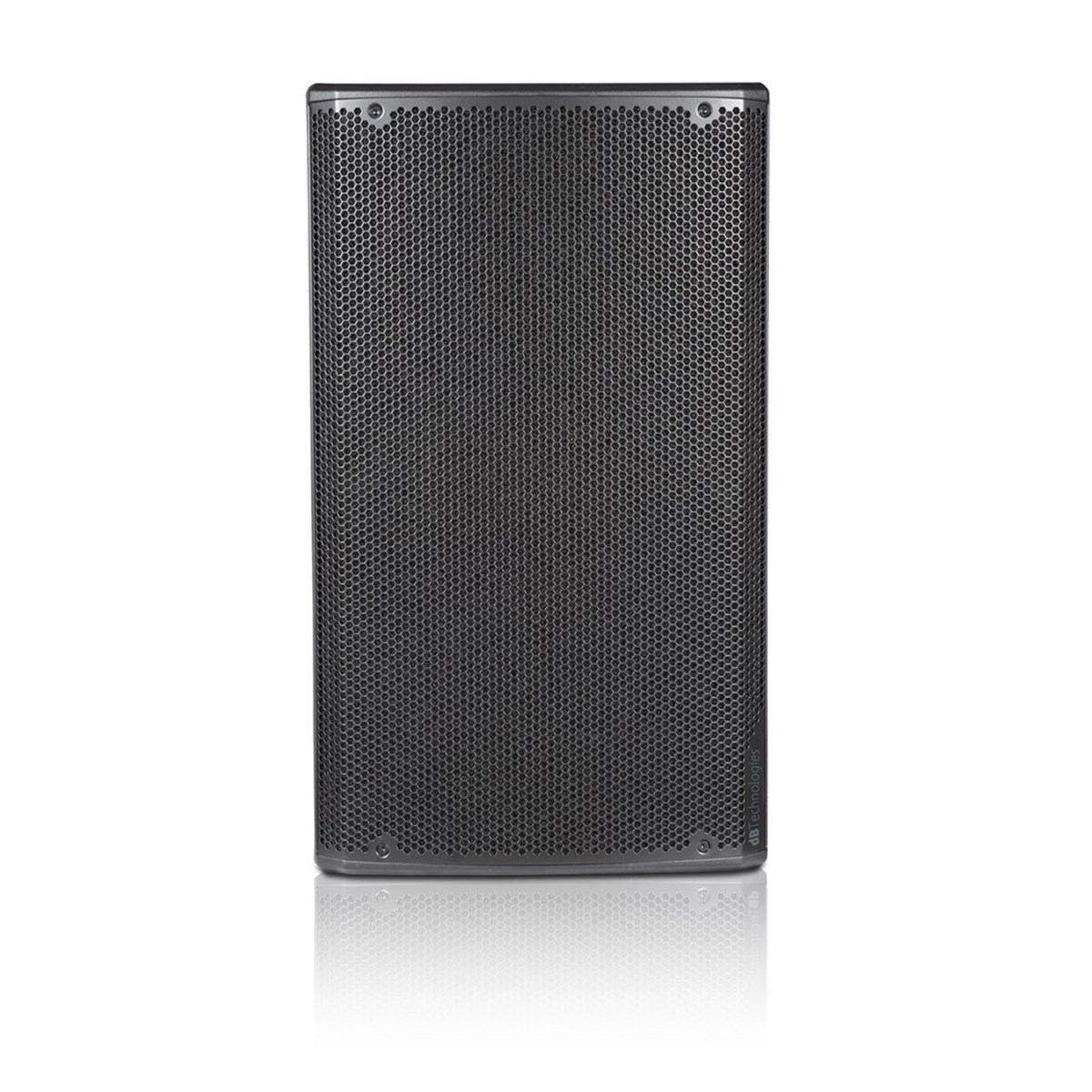

dBTechnologies OPERA 15 15'' 600 Watt Aktif Hoparlör (OPERA 15)

TEKNİK ÖZELLİKLER

Speaker Type  2-Way Active Speaker

Frequency Response [-10dB] 50 - 20.000 Hz

Frequency Response [- 3dB] 56 - 19.000 Hz

Max SPL        130 dB

HF       1" Exit, 1.4 v.c.

Type HF         Compression driver

Horizontal Directivity            100° (85° up/120° down)

Vertical Directivity    85° (+ 25°/-60°)

Horn    Asymmetrical Horn

LF       15", 2" v.c.

Amp Technology        Amp SMPS Power supply dual range

Amp Class      Class D

RMS Power    600 W

Peak Power     1200 W

Controller       DSP 56 bit

AD/DA Converter     24 bit/48 KHz

System Presets           Rotary Encoder (8 Presets)

X-Over Frequency     1800 Hz

Limiter            Peak, RMS, Thermal

Advanced DSP Functions     Linear Phase FIR Filters

Signal Input    1xCombo (XLR/Jack 6.3 mm) MIC/Line

Signal Input    1xCombo (XLR/Jack 6.3 mm) MIC/Inst

Signal Output 1x XLR Male (CH1 Link/Mix OUT)

Signal Output Selectable

Width  420 mm (16.54 in)

Height 722 mm (28.43 in)

Depth  419 mm (16.50 in)

Weight            18.3 kg (40.34 lbs)
