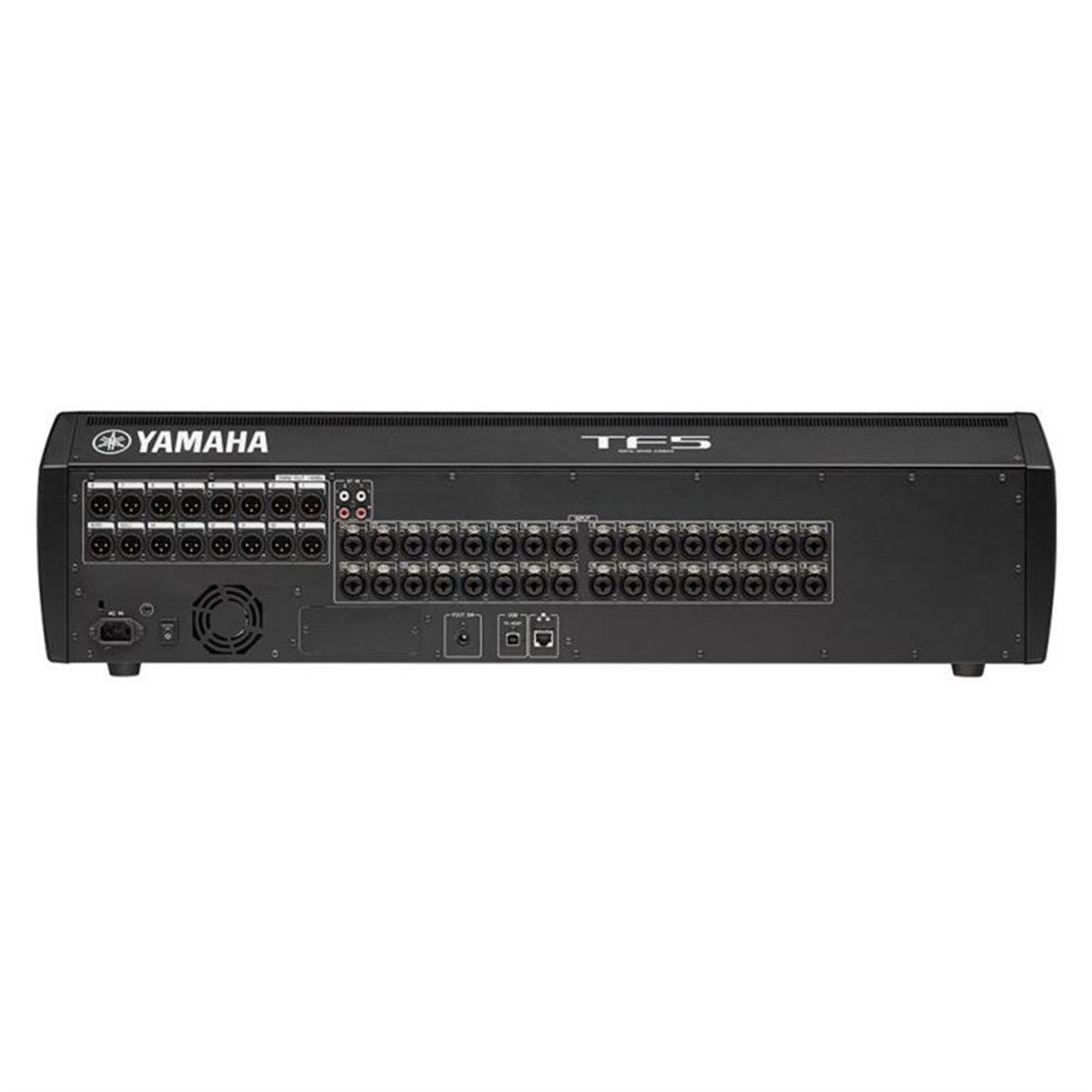

TF5 Yamaha 48 İnput Mixing Channels 40 Mono + 2 Stereo + 2 Return

TF5 Yamaha 48 İnput Mixing Channels 40 Mono + 2 Stereo + 2 Return (TF5)

Marka : Yamaha
Fiyat : ₺0,00  + KDV
KDV Dahil : ₺0,00
:
Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz
TEKNİK ÖZELLİKLER

Fader Configuration 32 + 1 (Master)
Mixing Capacity: Input Channels 48 (40 mono + 2 stereo + 2 return)
Mixing Capacity: Aux Buses 20 (8 mono + 6 stereo)
Mixing Capacity: Stereo Buses 1
Mixing Capacity: Sub Buses 1
Input channel functions 8 DCA Groups
I/O: Inputs 32 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin)
I/O: Outputs 16 (XLR)
I/O: Expansion slots 1
On-board processors: DSP 8 Effects + 10 GEQ
USB 34x34 USB Audio Interface, 2-track recording via USB Storage Device
Sampling frequency rate: Internal 48 kHz
Signal delay Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz
Fader 100 mm motorized, Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders
Total harmonic distortion Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600 , INPUT to OMNI OUT, Input Gain=Min. (Measured with a –18 dB/octave filter@80 kHz)
Frequency response +0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT
Dynamic range 110 dB typ., DA Converter, 107 dB typ., INPUT to OMNI OUT, Input Gain=Min.
Hum & noise level: Equivalent input noise –128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter)
Hum & noise level: Residual output noise –85 dBu, ST master off (Measured with an A-Weight filter)
Crosstalk –100 dB (Measured with a –30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min.
Power requirements 100–240 V 50/60 Hz
Power consumption 120 W
Dimensions WxHxD 866 mm x 225 mm x 599 mm
Net weight 20.0 kg
Accessories Quick Guide, Power Cord, CUBASE AI download information
Options Expansion Card, Foot Switch (FC5)
Others Operating temperature range: 0–40 °C, Storage temperature range: -20–60 °C
