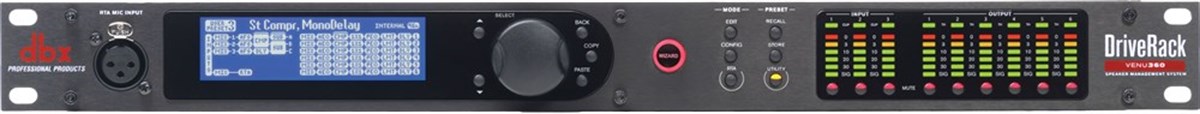

Dbx DriveRack Venu360 3x6 Hoparlör Yonetim Sistemi

Dbx DriveRack Venu360 3x6 Hoparlör Yonetim Sistemi (VENU360)

Marka : dBX
İndirim Oranı : %45 İndirim
KDV Dahil : $3,480.00
İndirimli : $1,595.00  + KDV
KDV Dahil : ₺67.372,99

Dbx VENU360

3X6 Loudspeaker Management System

:
Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz

ÖZELLİKLER



Input (3) analog line inputs/(2) AES digital inputs (shared connectors), (1) RTA mic input
Input Connectors (3) female XLRs (2 selectable between analog/AES digital audio formats), (1) female XLR RTA mic input
Input Type Electronically balanced/RF filtered
Input Impedance > 30 kΩ, balanced line to line
Max Input Level (line inputs) > +28 dBu, balanced, ≤1% THD
CMRR > 50 dB @ 1 kHz
RTA Mic Preamp Phantom Power +48 VDC
Output (6) Line Outputs
Output Connectors Male XLR
Output Type Electronically balanced, RF filtered
Output Impedance 120 Ω, balanced line to line
Max Output Level +22 dBu, balanced, ≤1% THD
Alignment Delay Up to 1000 ms per output channel
A/D Converter 24-bit with dbx Type IV™ Conversion System
A/D Dynamic Range 117 dB A-weighted, 114 dB unweighted, 22 kHz BW
Type IV Dynamic Range 129 dB with transient material, A-weighted, 22 kHz BW; 126 dB with transient material, unweighted, 22 kHz BW; 121 dB typical with program material, A-weighted, 22 kHz BW
D/A Converter 24-bit
D/A Dynamic Range 116 dB A-weighted, 113 dB unweighted, 22 kHz BW
Internal Processing Wordlength 32-bit floating point
Supported Sample Rates 48/96 kHz (32-192 kHz using sample rate conversion)
System Performance Dynamic Range 114 dB A-weighted; 110 dB unweighted
THD+Noise 0.0025% typical at +4 dBu, 1 kHz, 0 dB input gain
Frequency Response 20 Hz – 20 kHz, +0 /- 0.5 dB
Interchannel Crosstalk < -97 dB, -105 dB typical 20-20 kHz, +4 dBu, all channels measured
Latency Analog input to output: 2.57 ms (48 kHz), 2.28 ms (96 kHz); Digital AES input to output: 2.31 (48 kHz), 2.15 ms (96 kHz)
Operating Voltage 100-240 VAC 50/60 Hz
Power Consumption 18 W
Unit Weight 5.48 lbs. (2.49 kg)
Shipping Weight 7.10 lbs. (3.22 kg)
Dimensions 1.75” (H) x 8.0” (D) x 19” (W), 4.4cm (H) x 20.32cm (D) x 48.26cm (W)
