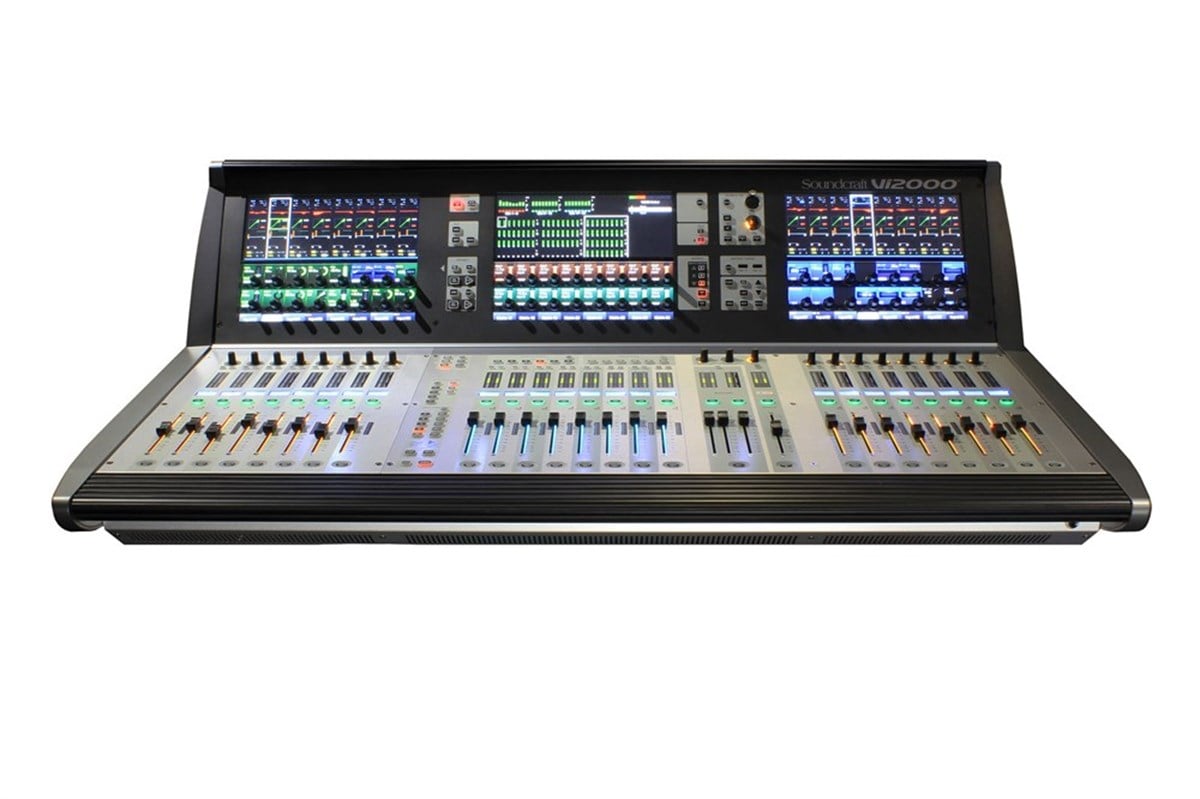

Soundcraft Vi2000 Digital Console Dijital Mikser

Soundcraft Vi2000 Digital Console Dijital Mikser (VI2000)

Marka : Soundcraft
Fiyat : $0.00  + KDV
KDV Dahil : ₺0,00

Soundcraft VI2000

Dijital Mikser







:
Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz

Özellikler






Control Surface
Input Faders 16
Output Faders 8 +3 (LRC masters) +1 (Monitor A/B)
Total Faders 28
3D Vistonics screens 3 (2 input, 1 master)
Fader bay operation 4x Fixed Input layers A/B/C/D giving 64 inputs on 16 fdrs.
Input channels can be assigned to Master bay for 24 input fdrs.
5x User layers 1-5
1x Busses 1-16 Layer plus screen assign 17-24, for 24 mono/stereo busses
VCA/A/B/C/D/E output/input fader pages, (A-E user definable)
Local I/O Physical connectors
Mic/Line Inputs 48, 32 or 16 configurable (max 3x 16ch out cards of 4 total) (Last 5 outs default to local monitors but can be repatched)
AES/EBU In 2 (=4ch) plus optional 16ch via Vista1 card (remove 2 mic or line out cards to fit).
AES/EBU Out 2 (=4ch) plus optional 16ch via Vista1 card (remove 2 mic or line out cards to fit).
TB Mic in 1 front panel, with rear-switched 48V.
Phones out 1 ste jack, under armrest
Optical MADI In/Out 1 (outputs paralleled with Dante interface).
Dante ports 1x 64ch in/out (2x Ethercon Pri/Sec).
Dante inputs are A/B switched with optical MADI.
D21m Option Slots 2 double/4single (total 128ch)
AES/EBU Input Sample Rate 32–108kHz (with SRC enabled)
Total number of simultaneous IO channels 246 inputs / 214 outputs
(assumes 48 mic in/16 line out config)
DSP Mixing Core Soundcraft® SpiderCore
Processing 40-bit Floating point, 48kHz sample rate
Input Channels to mix 96 mono Pairable to 48 stereo
Busses - Aux/Grp 24 mono/stereo
Busses - Matrix From 24 bus pool – max 16 mono/stereo.
Busses - Master 3 (LRC)
Assignable Insert Points 64 + 4FX
Tie Lines 128 (allow Stagebox IO to connect to Local IO without using mixing channels.
Lexicon FX 4 units (14 reverbs, 7 delays, 8 pitch-shift effects in each unit)
Tap Delay from F-key 1-4.
BSS Dynamic EQ 8 instances of DPR901ii 4-band DEQ
vMIX Automixing Up to 2 groups of 16 input channels
BSS GEQ 24 mono/stereo +LRC.
External Control Ports
Ethernet 1 (dedicated HiQnet / Realtime Rack control)
MIDI 1 In, 1 Out
Other Ports
Mains Input 2, switched (redundant power supplies built in)
USB2.0 4 (2 front, 2 rear)
Wordclock In /Out 2x BNC
DVI out Reserved for future use
Gooseneck lamp 4-pin XLR 2, for rear panel illumination
Stagebox Optional, via MADI optical or Cat 5 option cards fitted to D21m expansion slots. Can connect up to 2 x 64ch Vi Stageboxes. Also compatible with Compact Stagebox and Mini Stagebox
