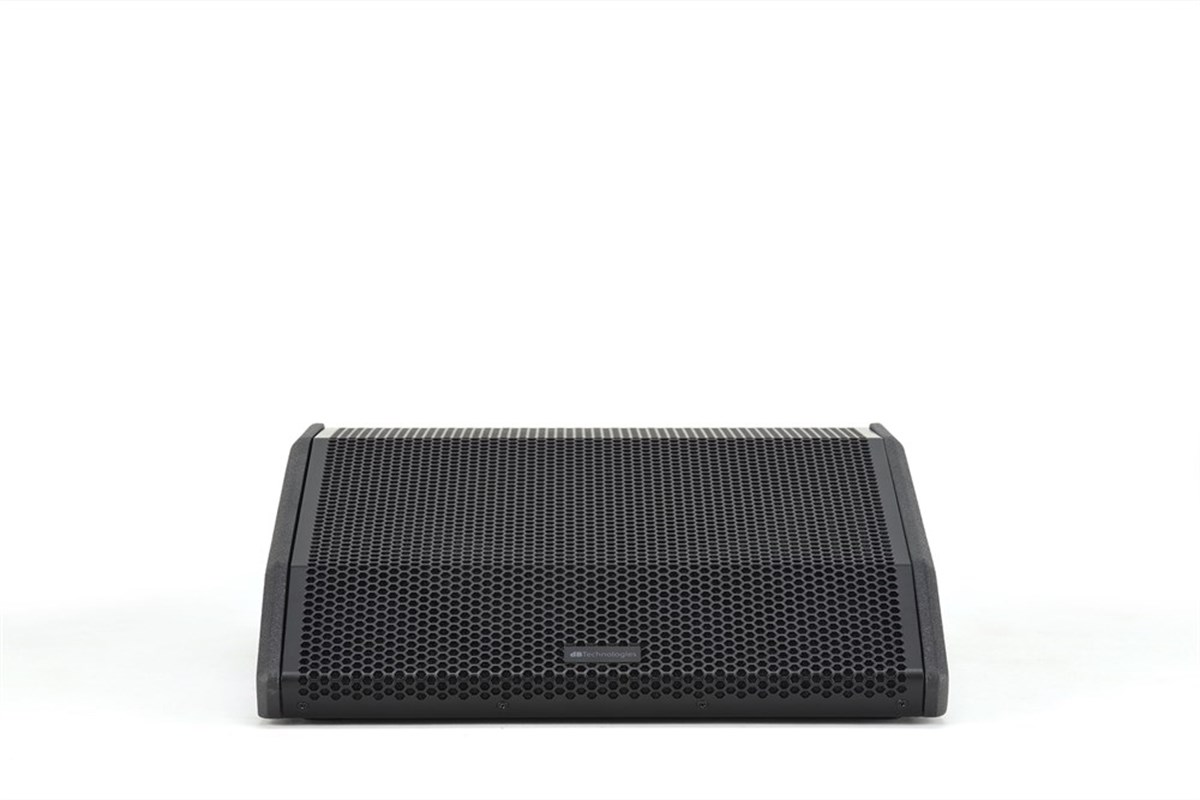

dBTechnologies VIO W10 4x4” 400 Watt 2 Yollu Aktif Hoparlör

dBTechnologies VIO W10 4x4” 400 Watt 2 Yollu Aktif Hoparlör (VIO W10)

Fiyat : €0,00  + KDV
KDV Dahil : ₺0,00

2 Yollu Aktif Hoparlör LF:4x4”,HF: 1,”, 400 Watt

:

Teknik Özellikleri



Technical Data

Speaker Type2-Way Active Wedge Monitor



Acoustical data

Usable Bandwith [- 10 dB]58 - 15,000 Hz

Frequency Response [- 6 dB]68 - 14,000 Hz

Max SPL126 dB

HF4x 4" - 1" v.c. Neodymium

LF1x 10" - 2.5" v.c.

Horizontal DirectivityDependent on Focus Preset

Vertical DirectivityDependent on Focus Preset



Amplifier

Amplifier400 W RMS Class D Digipro® G3

CoolingConvection

Power SupplyAuto-range SMPS



Processor

ControllerDSP 28/56 bit

Converter AD/DA24 bit/48 kHz

LimiterPeak, RMS, Thermal

Processing (filters)Linear Phase FIR Filters



Input

Signal Input1x XLR female, 1x RJ45 Link (RDNet) , 1 x USB (Data Service)

Signal Output1xXLR male, 1x RJ45 Link (RDNet)

Power Socket1x PowerCON TRUE1 In

1xPowerCON TRUE1 Out

Controls1x Rotary Encoder (8 presets)

1 x Input Sensitivity Encoder

1xMic /line switch

1x On LED

1x Status -LED

1x Signal LED

1x Limiter LED



Mechanics

HousingWooden cabinet, Polyurea painting

Handles1 on left side

Width450 mm (17.71 in)

Height165 mm (6.49 in)

Depth480 mm (18.89 in)

Weight13.7 kg (30.20 lbs)
