Teknik Özellikleri

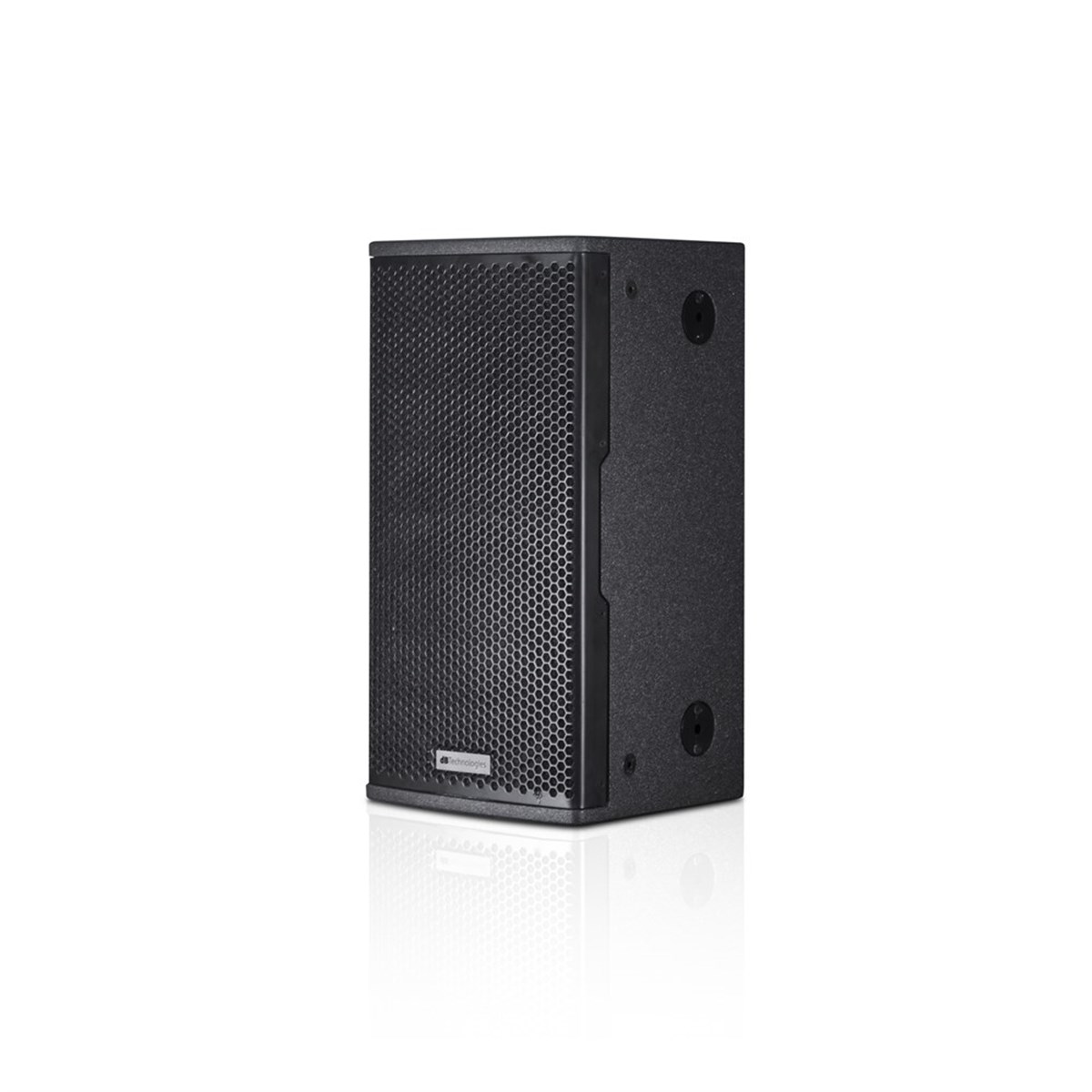

2 Yollu Aktif Hoparlör
Acoustical data
Frequency Response [-10dB]73 - 21.400 Hz
Frequency Response [-6dB]82 - 20.000 Hz
Max SPL130 dB
HF1x 1” v.c. 1.75"
LF1x 10”, v.c. 2.5" Neodyium
Directivity90° x 40°
HornRotatable CD Horn
Amplifier
Amplifier900 W RMS Class-D Digipro® G3
CoolingConvection
Power SupplyAuto-range SMPS
Processor
ControllerDSP 28/56 bit
AD/DA Converter24 bit/48 kHz
LimiterPeak, RMS, Thermal
ProcessingFIR Linear Phase Filters
Input
Signal Input1 x XLR balanced, 1 x RJ45 Link (RDNet)
Signal Output1x XLR balanced, 1 x RJ45 Link (RDNet)
Power Socket1x PowerCON TRUE1 In
1x PowerCON TRUE1 Out
Controles1x Rotary Encoder (8x EQ, HPF presets)
1x Input sensitivity potentiometer
1x Mic / line switch
Special FeaturesOpto-isolated floating pre-amp
