Teknik Özellikleri

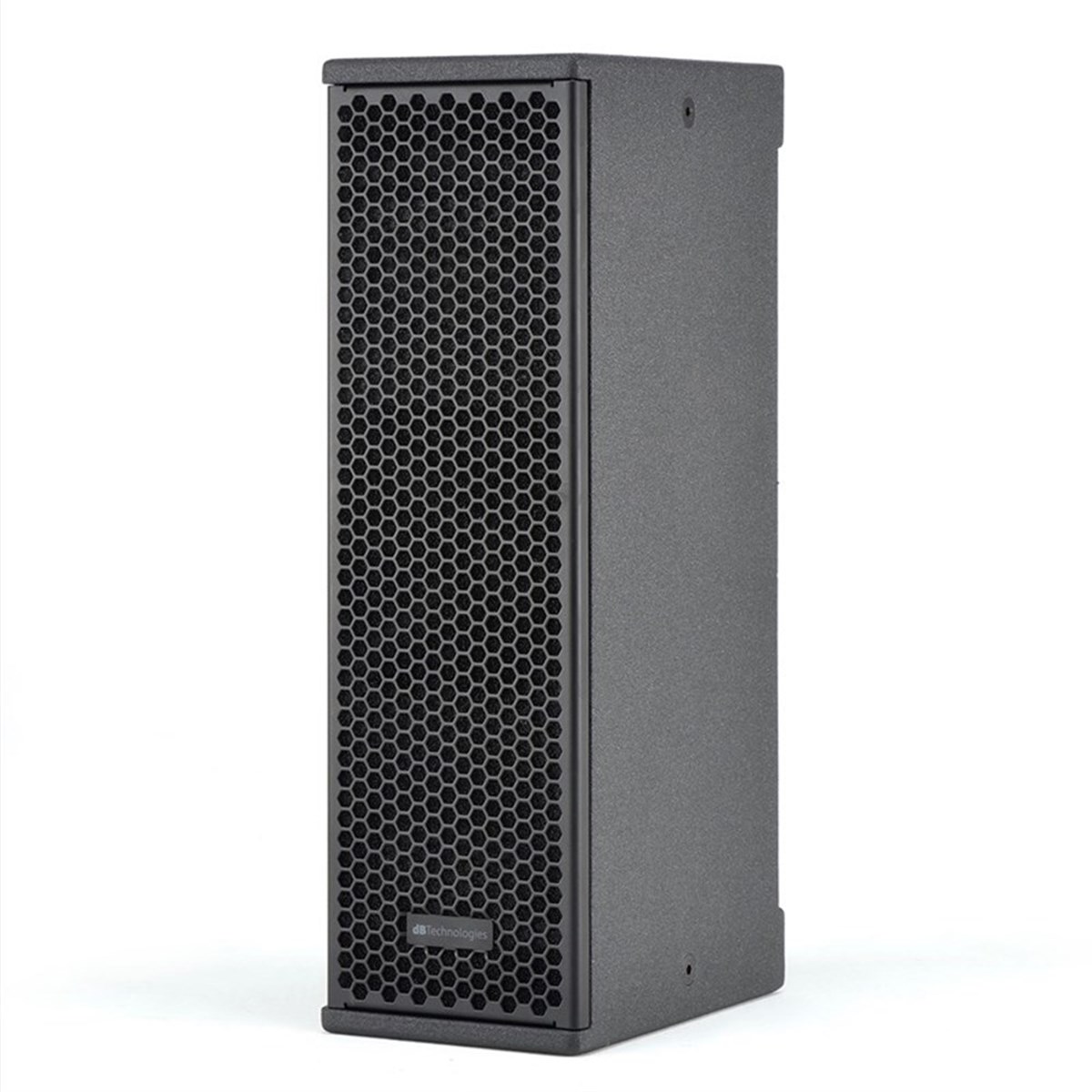

2 Yollu Aktif Hoparlör
ACOUSTICAL DATA
Usable bandwidth [-10dB]75 - 21.000 Hz
Frequency Response [-6dB]80 - 20.000 Hz
Max SPL126 dB
HF1x 1”, 1.4 v.c.
LF2x 5”, 1" v.c
VIO X205-60 Directivity60° x 60°
VIO X205-100 Directivity100° x 100°
AMPLIFIER
Amplifier400 W RMS Class-D Digipro® G3
CoolingConvection
Power SupplyAuto-range SMPS
PROCESSOR
ControllerDSP 28/56 bit
AD/DA Converter24 bit/48 kHz
LimiterPeak, RMS, Thermal
ProcessingFIR Linear Phase Filters
INPUT
Signal Input1 x XLR balanced, 1 x RJ45 Link (RDNet), 1x USB (Data Service)
Signal Output1x XLR balanced, 1 x RJ45 Link (RDNet)
Power Socket1x PowerCON TRUE1 In
1x PowerCON TRUE1 Out
Controls1x Rotary Encoder (8x EQ presets)
1x Input Attenuation Rotary Switch
1x On LED
1x Status LED
1x Signal LED
1x Limiter LED
MECHANICS
HousingWooden Cabinet, Polyurea painting
Handles1x (top)
Wedge AngleMonitor Use 5°
Rigging points2x M10 Threaded Nuts (top and bottom)
Width150 mm (5.9 in)
Height485 mm (19 in)
Depth240 mm (9.4 in)
Weight7.8 kg (17.2 lbs)
