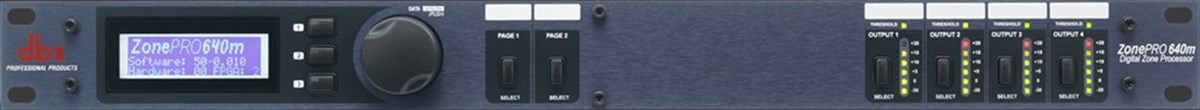

Dbx ZonePro640M 6x4 Dijital Zone Prosesör

Dbx ZonePro640M 6x4 Dijital Zone Prosesör (ZONEPRO 640M)

Marka : dBX
Fiyat : $0.00  + KDV
KDV Dahil : ₺0,00

Dbx ZONEPRO 640M

6x4 Digital Zone Processor

:
Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz

ÖZELLİKLER



Indicators 4 Independent Six-Segment Lightpipe Output Meters that range from -30 to +20 dBu, Threshold Meters
LCD Display LCD Display provides information about Source Selection, Page Steering, Zone Volume and Mute
Input 6 Total (4) Switchable Mic or Line, (2) Unbalanced, Mono-Summed RCA Input Pairs
Input Connectors Euroblock (Line and Mic) RCA (Source)
Input Type Electronically balanced/RF-filtered
Input Impedance Euroblock: >50kΩ Balanced, >25kΩ Unbalanced, RF Filtered; RCA: >25kΩ Unbalanced, RF Filtered
Max Input +20dBu Mic/Line, +12dBu RCA
CMRR >40dB, typically >55dB @ 1 kHz
Mic Preamp gain 30 to 60dB
Mic Preamp Equivalent Input Noise (EIN) < -118dBu, 22Hz-22kHz, 150Ω Source Impedance
Mic Preamp Phantom Power +15VDC
Output 4 total
Output Connectors Euroblock
Output Type Electronically Balanced, RF Filtered
Output Impedance 120Ω Balanced, 60Ω Unbalanced
Max Output +20dBu
A/D Converter dbx Type IV™ conversion system
A/D Dynamic Range (line) >113 dB, A-weighted, >110 dB unweighted
Type IV Dynamic Range >119dB, A-weighted, 22kHz; BW: >117dB, unweighted, 22kHz BW
Digital Output Dynamic Range >114 dB A-weighted, 110dB unweighted
Sample Rate 48kHz
D/A Dynamic Range 112 dB A-weighted, 109dB unweighted, 22kHz BW
Dynamic Range >109 dB A-weighted, >106 dB unweighted, 22kHz BW
THD+Noise 0.003% typical at +4dBu, 1kHz, 0dB gain
Frequency Response 20Hz - 20kHz, +/-0.5dB
Interchannel Crosstalk >80dB typical
Propagation Delay 0.6 msec
Operating Voltage 100VAC 50/60Hz, 120VAC 60Hz and 230VAC 50/60Hz
Power Consumption 29 W
BTU <92.13
Unit Weight 6.05 lbs / 2.74 kg
Shipping Weight 8.2 lbs / 4 kg
Dimensions 1.75” (1U) x 19” x 7.75” (45mm x 483mm x 197mm)
Safety Agency Certifications UL 600065, IEC 60065, EN 55013, E60065
