Dbx ZonePro 641 6x4 Dijital Zone İşlemci

Dbx ZonePro 641 6x4 Dijital Zone İşlemci (ZONEPRO 641)

Marka : dBX
Fiyat : $0.00  + KDV
KDV Dahil : ₺0,00

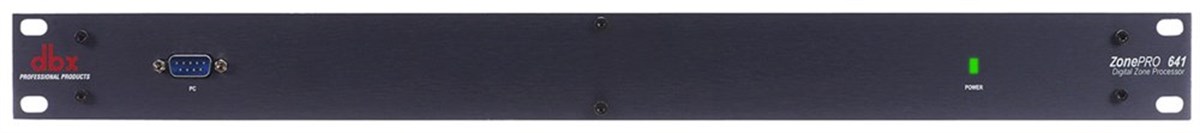

Dbx ZONEPRO 641

6x4 Digital Zone Processor

:

ÖZELLİKLER



Input (6 total) (2) Switchable line or mic inputs (4) RCA Source
Input Connectors Euroblock (Line and Mic) RCA (Source)
Input Type Electronically balanced/RF-filtered
Input Impedance 50k ohm balanced, >75k ohm unbalanced
Max Input +20dBu Mic/Line, +12dBu RCA
CMRR >40dB, typically >55dB @ 1 kHz
Mic Preamp gain 30 to 60dB
Mic Preamp Equivalent Input Noise (EIN) <-118dB
Mic Preamp Phantom Power 15V
Output 4 total
Output Connectors Euroblock
Output Type Electronically Balanced, RF Filtered
Output Impedance 120 ohms balanced, 60ohm unbalanced
Max Output +20dBu
A/D Converter dbx Type IV™ conversion system
A/D Dynamic Range (line) >113 dB, A-weighted, >110 dB unweighted
Type IV Dynamic Range >119dB, A-weighted, 22kHz; BW: >117dB, unweighted, 22kHz BW
Digital Output RCA 24-Bit oversampling
Digital Output Dynamic Range >114 dB A-weighted, 110dB unweighted
Sample Rate 48kHz
D/A Dynamic Range 112 dB A-weighted, 109dB unweighted
Dynamic Range >109 dB A-weighted, >106 dB unweighted
THD+Noise 0.003% typical at +4dBu, 1kHz, 0dB gain
Frequency Response 20Hz - 20kHz, +/-0.5dB
Interchannel Crosstalk >80dB typical
Propagation Delay 0.6 msec
Operating Voltage 100VAC 50/60Hz, 120VAC 60Hz and 230VAC 50/60Hz
Power Consumption 29 W
Unit Weight 6.8 lbs.(3.1 kg)
Shipping Weight 8.8 lbs. (4.0 kg)
Dimensions 1.75” H x 5.75” D x 19” W
Safety Agency Certifications UL 600065, IEC 60065, EN 55013, E60065
